Differential Thrust Clearance Adjustment: Notes

Special Tools Required

Driver, 40 mm I.D. 07746-0030100

1. If you removed the 72 mm shim (A) from the transmission housing, reinstall the same sized shim.

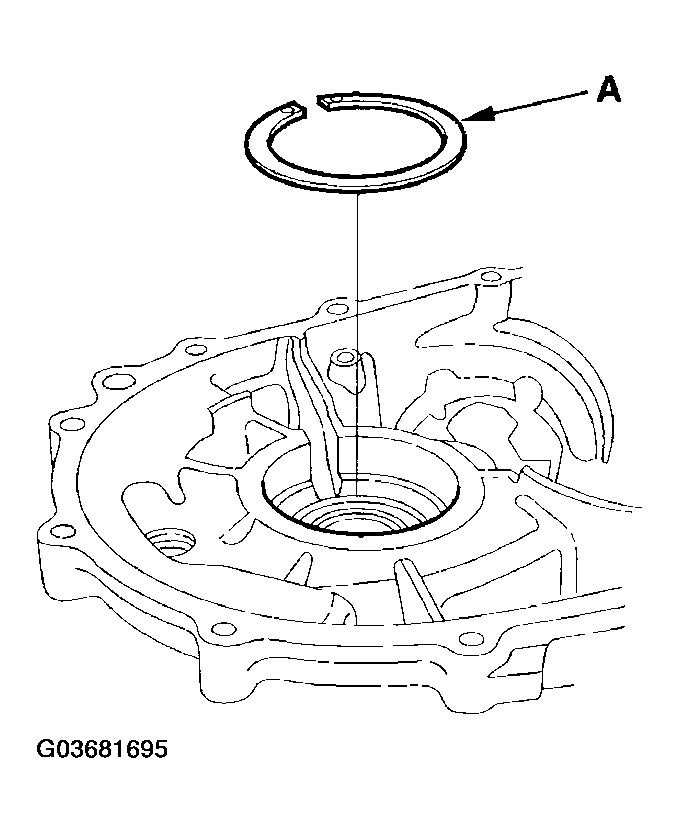

   Fig 1: Installing Shim On Differential

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the differential assembly (A) into the clutch housing (B).

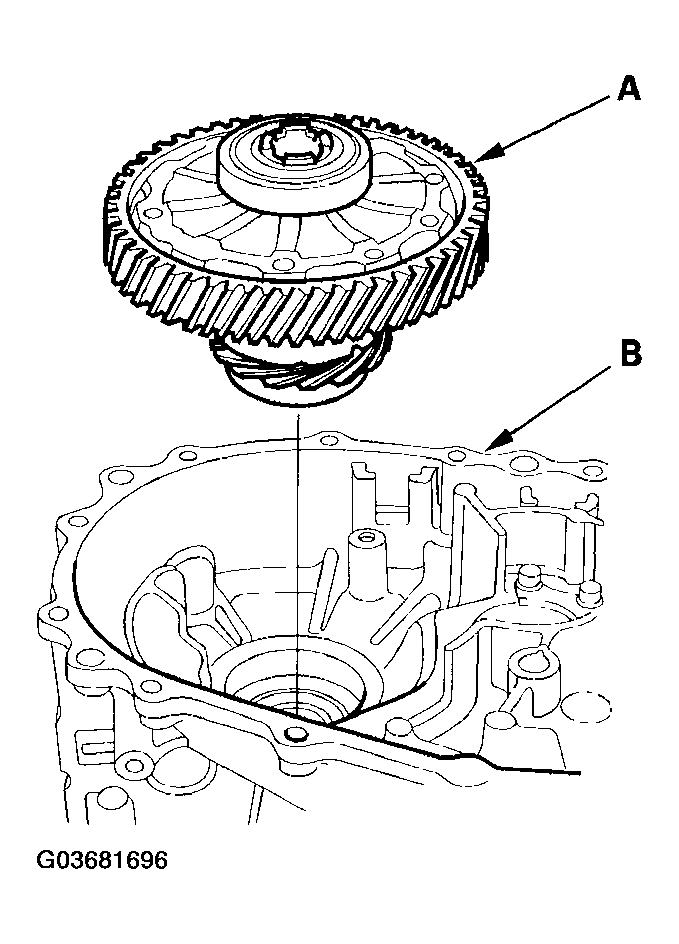

   Fig 2: Installing Differential Assembly Into Clutch Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Install the transmission housing onto the clutch housing, then tighten the 8 mm flange bolts in a crisscross pattern in several steps.

   8x 1.25 mm

   27 N.m (2.8 kgf.m, 20 lbf.ft)

4. Use the special tool to bottom the differential assembly in the clutch housing.

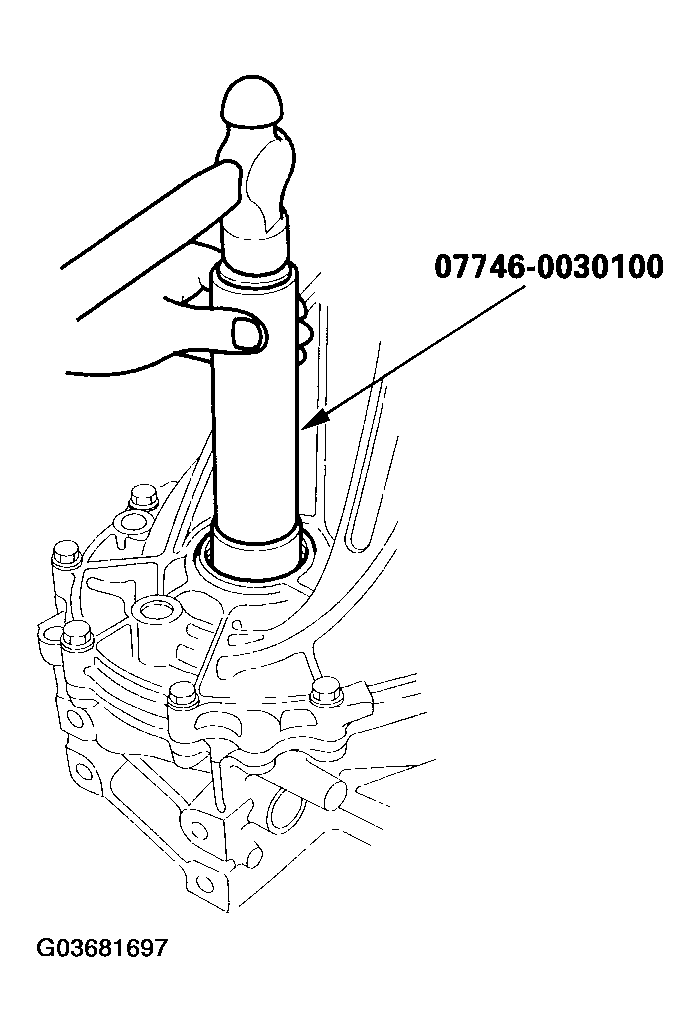

   Fig 3: Installing Differential Assembly In Clutch Housing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. Measure the clearance between the 72 mm shim and the bearing outer race in the transmission housing.

   Standard: 0-0.10 mm (0-0.004 in.)

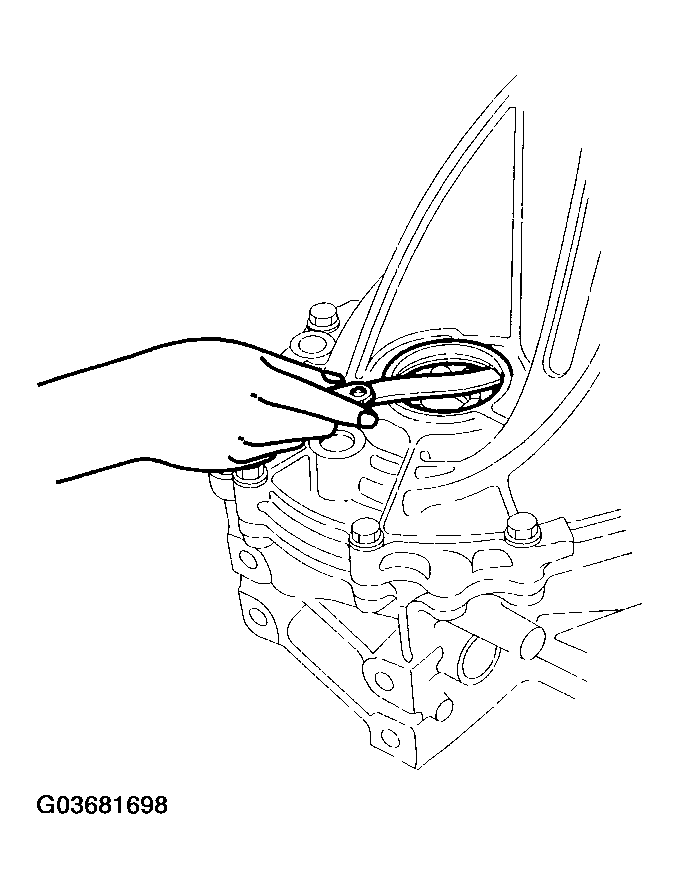

   Fig 4: Measuring Clearance Between Shim And Bearing Outer Race

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. If the clearance is more than the standard, select a new 72 mm shim from the following table. If the clearance measured in step  5 is within the standard, go to step  9 .

   72 mm Shim

   72 MM SHIM SPECIFICATIONS



   	Part Number	Thickness
   A	41441-PL3-A001	1.0 mm (0.0394 in.)
   B	41442-PL3-A001	1.1 mm (0.0433 in.)
   C	41443-PL3-A001	1.2 mm (0.0472 in.)
   D	41444-PL3-A001	1.3 mm (0.0512 in.)
   E	41445-PL3-A001	1.4 mm (0.0551 in.)
   F	41446-PL3-A001	1.5 mm (0.0591 in.)
   G	41447-PL3-A001	1.6 mm (0.0630 in.)
   H	41448-PL3-A001	1.7 mm (0.0669 in.)
   J	41449-PL3-A001	1.8 mm (0.0709 in.)
   K	41450-PL3-A000	1.05 mm (0.0413 in.)
   L	41451-PL3-A000	1.15 mm (0.0453 in.)
   M	41452-PL3-A000	1.25 mm (0.0492 in.)
   N	41453-PL3-A000	1.35 mm (0.0531 in.)
   P	41454-PL3-A000	1.45 mm (0.0571 in.)
   Q	41455-PL3-A000	1.55 mm (0.0610 in.)
   R	41456-PL3-A000	1.65 mm (0.0650 in.)
   S	41457-PL3-A000	1.75 mm (0.0689 in.)

7. Remove the bolts and transmission housing.
8. Replace the thrust shim selected in step  6 , then recheck the clearance.
9. Reinstall the transmission.
