ABS Operation Mode Table

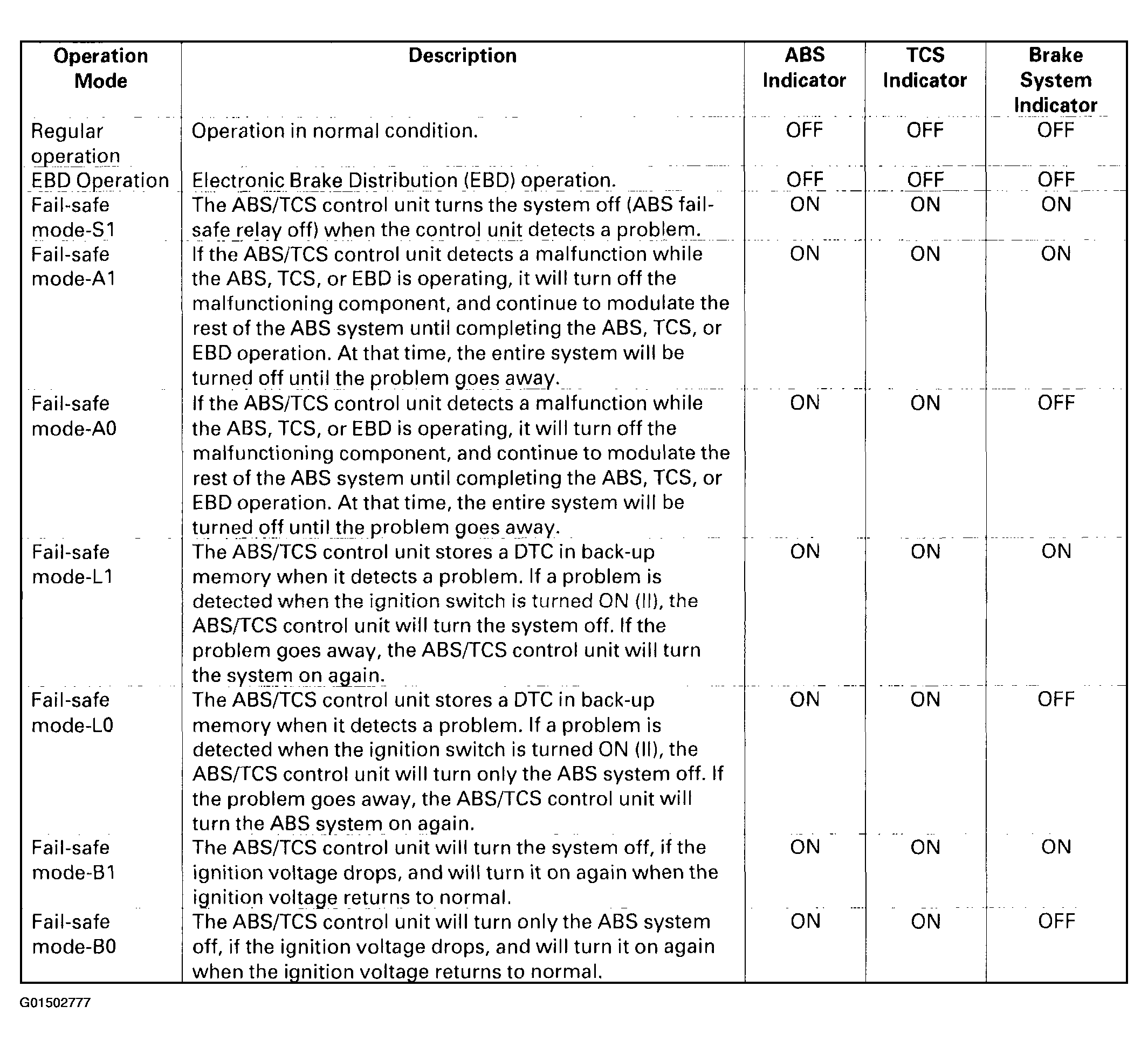

Fig 1: ABS Operation Mode Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
