In-car Temperature Sensor Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver's dashboard lower cover (see DRIVER'S LOWER DASHBOARD SWITCH PANEL REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the in-car temperature sensor (A) from the driver's dashboard lower cover (B).

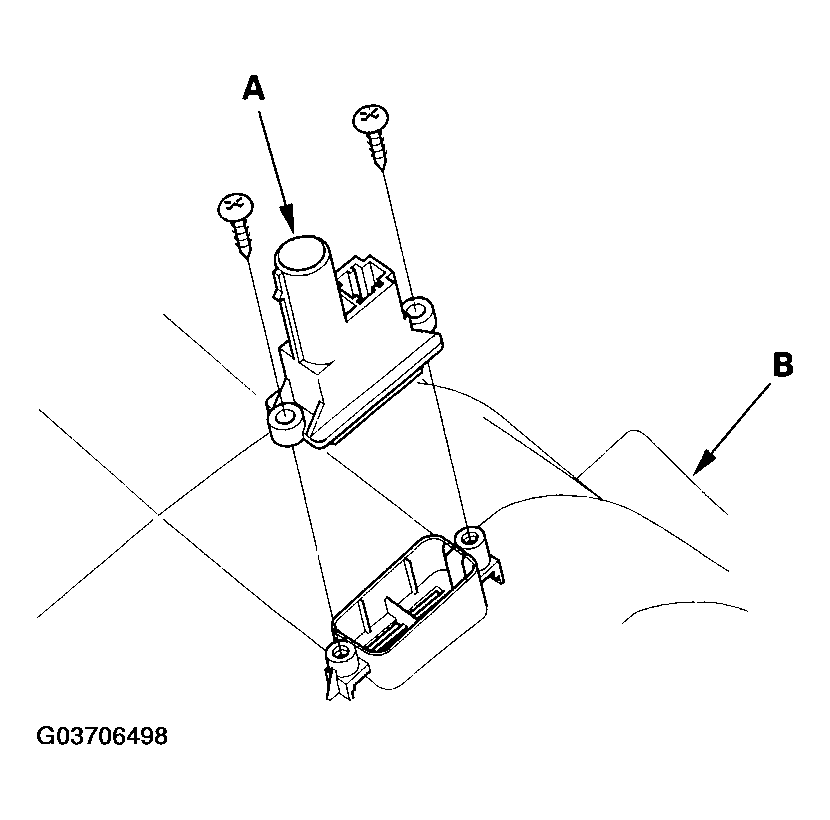

    Fig 1: Removing Self-Tapping Screws And In-Car Temperature Sensor
    G03706498Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the sensor in the reverse order of removal. Be sure to connect the air hose securely.
