Rearview Camera Inputs and Outputs for 6P Connector

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

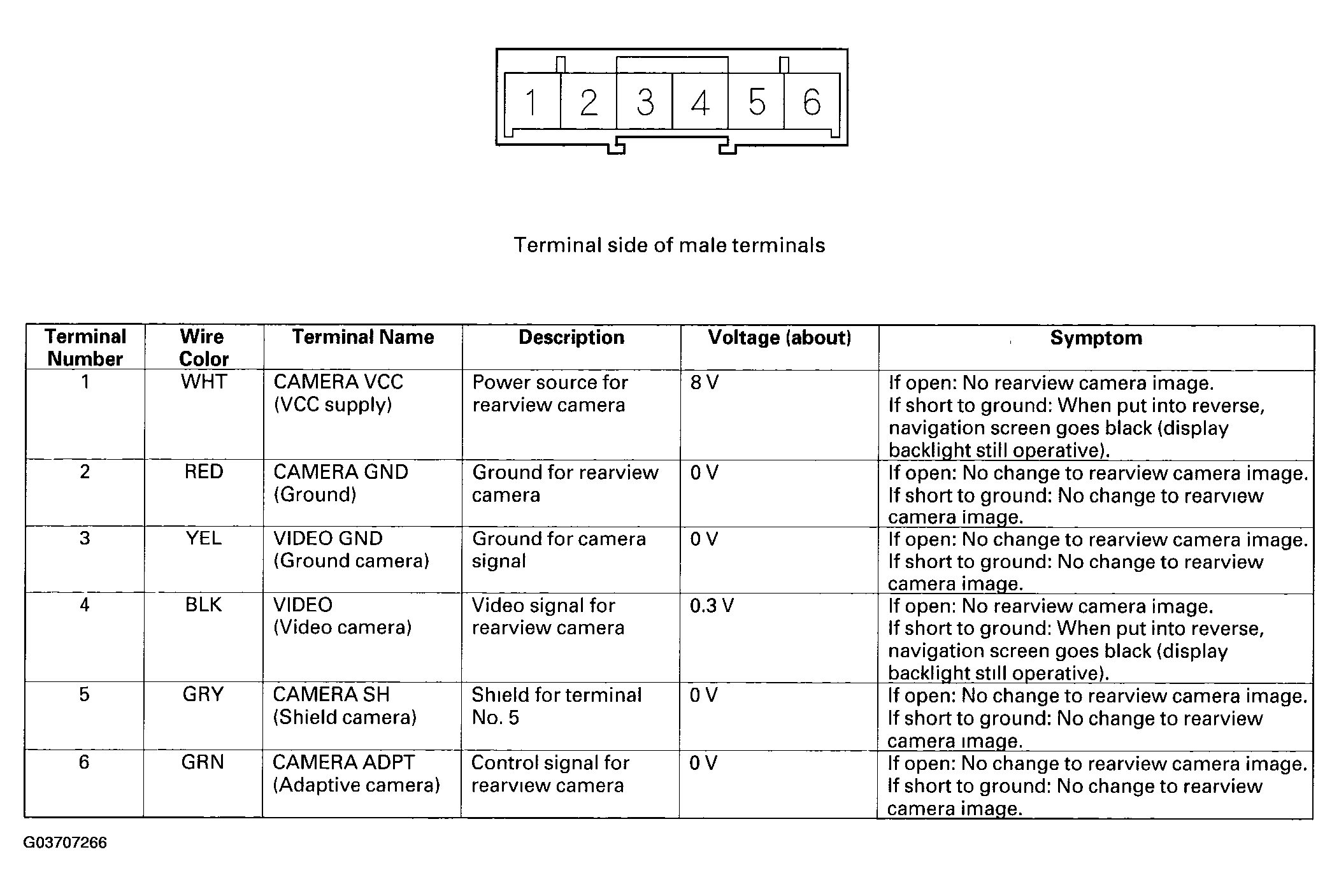

Fig 1: Identifying Rearview Camera Inputs And Outputs For 6P Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.
