Shift Lever Installation

SRS components are located in this area. Review the SRS component locations , and the precautions and procedures in appropriate AIR BAG article under RESTRAINTS before performing repairs or service.

1. Install the shift lever assembly on the steering column.

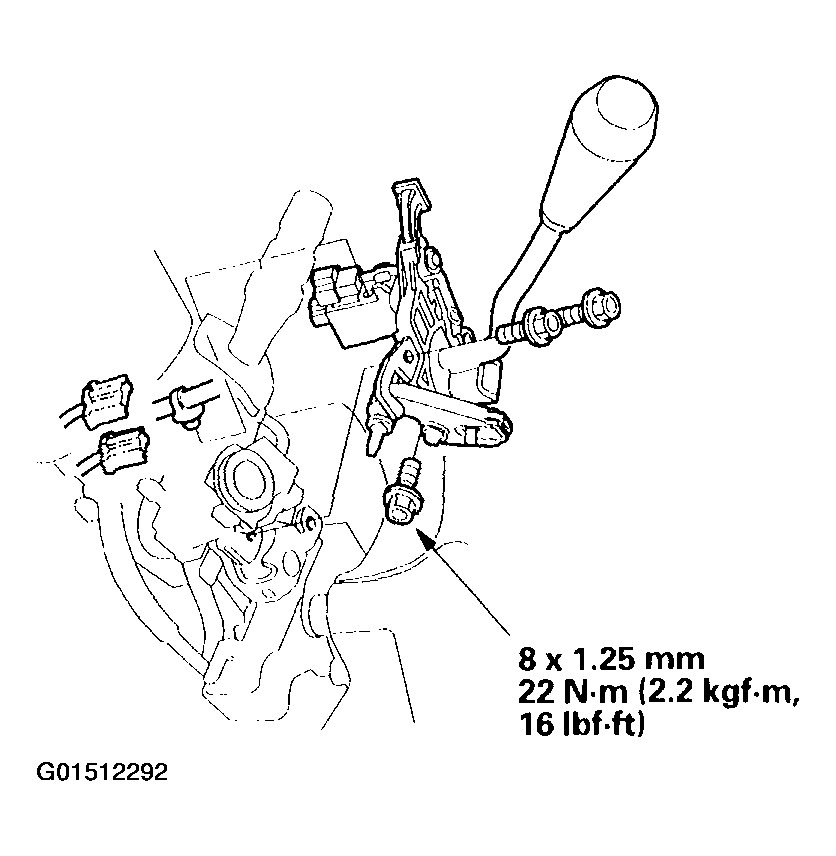

   Fig 1: Installing The Shift Lever Assembly On The Steering Column


2. Turn the ignition switch ON (II), and verify that the N position indicator comes on.

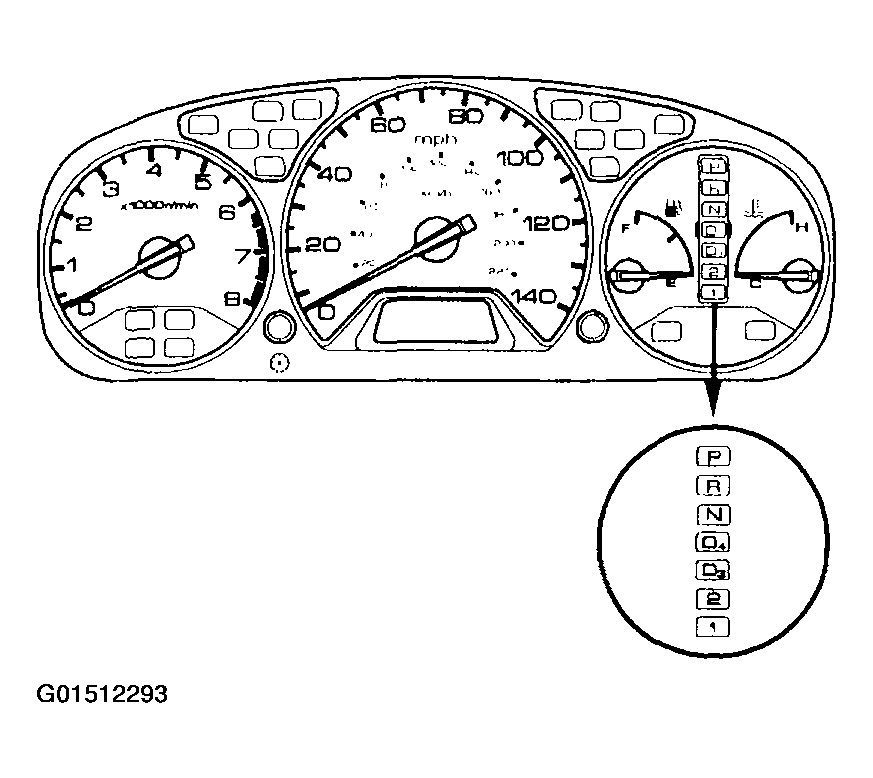

   Fig 2: Verifying That The N Position Indicator Comes On


3. Install the shift cable end to the shift lever. If necessary, adjust the shift cable (see step 5 on Shift Cable Adjustment  ).
