ABS Control Unit

ABS Control Unit Replacement

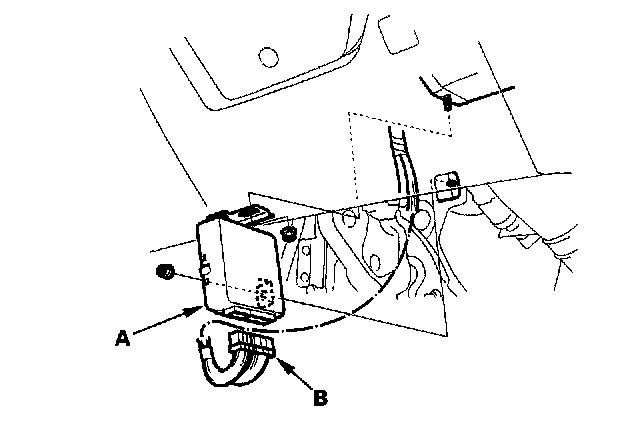

1. Remove the ABS control unit (A) located on the driver's side under the dash.
2. Disconnect the ABS control unit connectors (B).
3. Install the ABS control unit in the reverse order of removal.
