Except Honda Security Installed

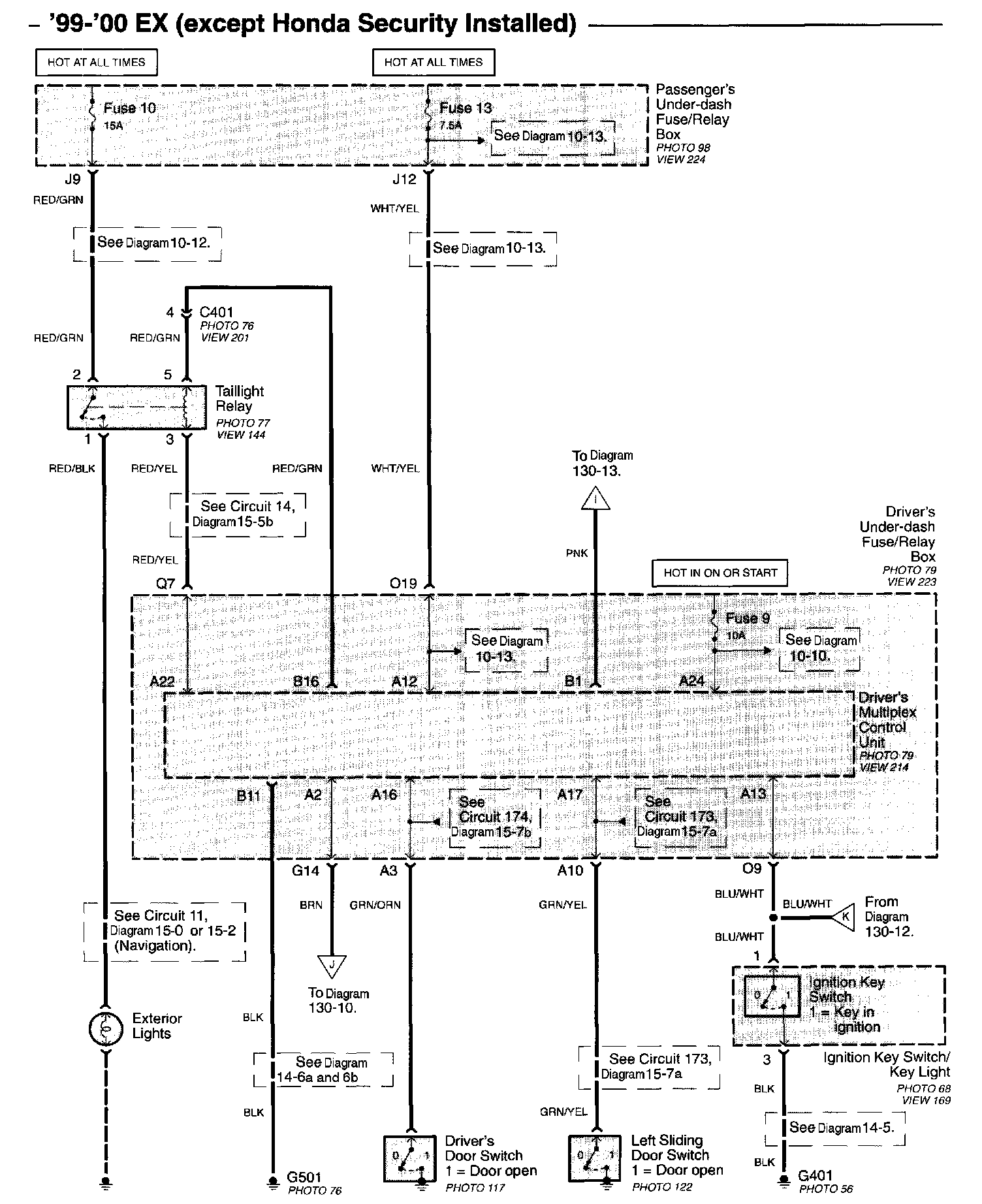

Diagram 130-9 (99-00 EX (Except Honda Security Installed)):

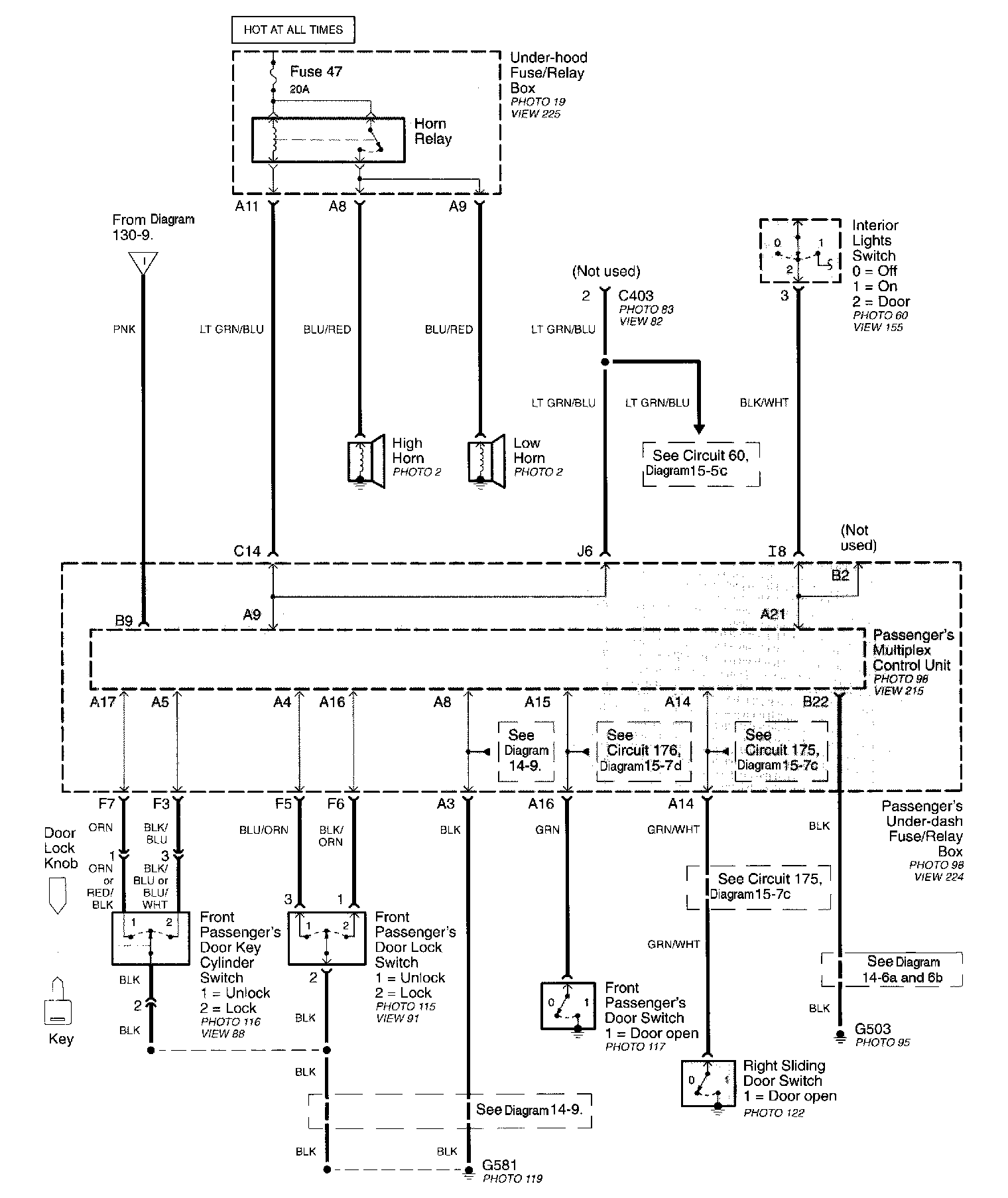

Diagram 130-10 (99-00 EX (Except Honda Security Installed)):

Diagram 130-1 (99-00 EX (Except Honda Security Installed):

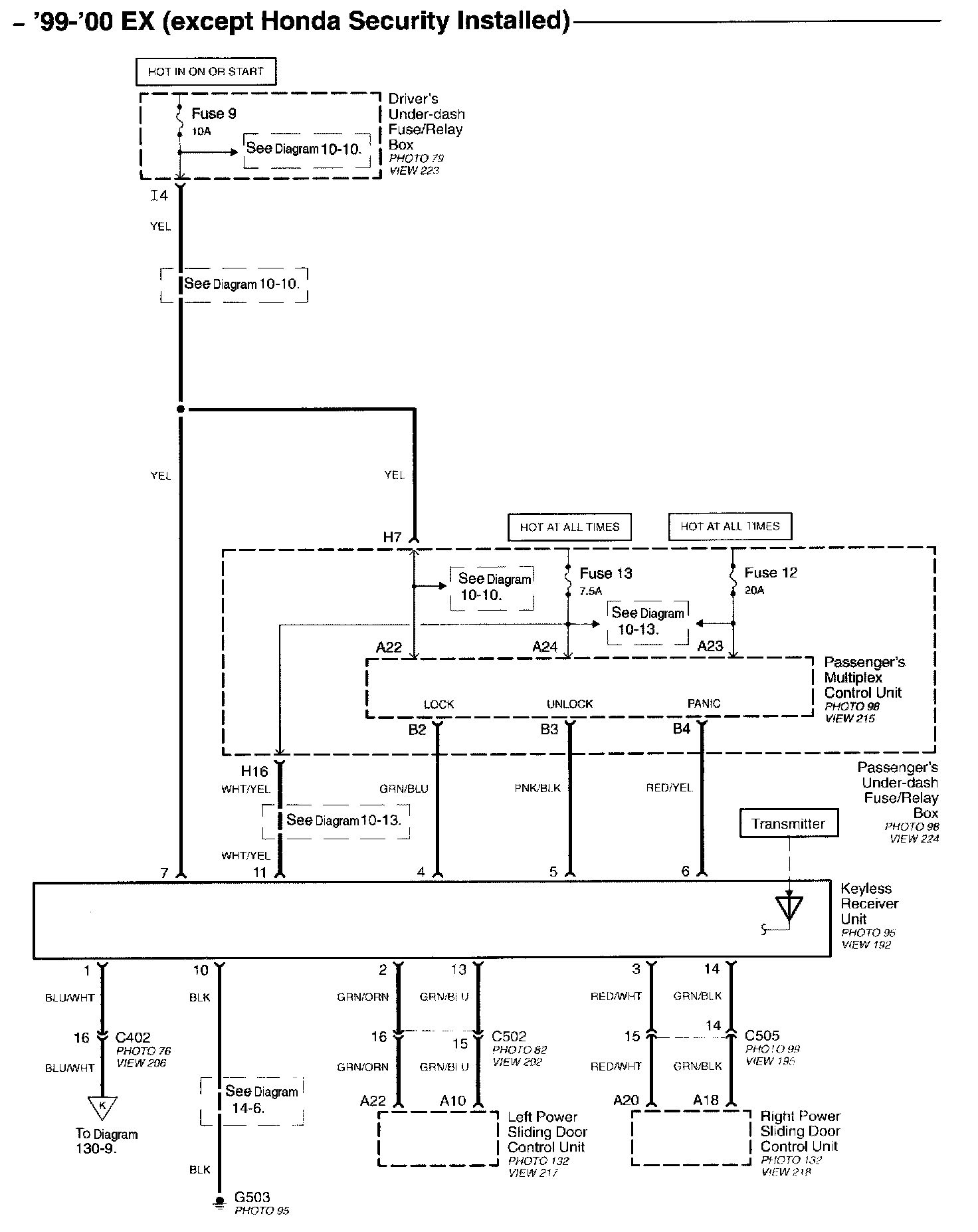

Diagram 130-12 (99-00 EX (Except Honda Security Installed):

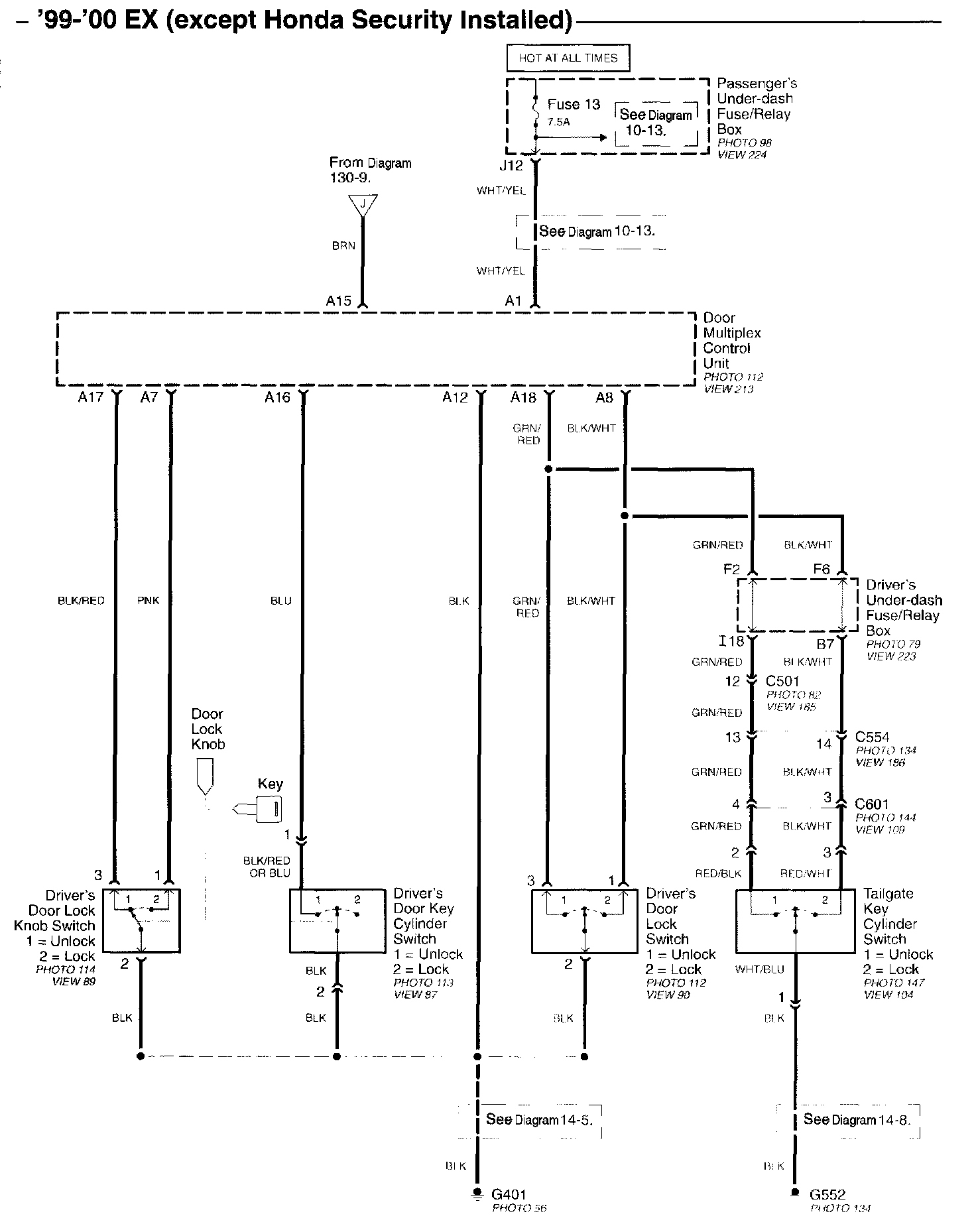

Diagram 130-13 (99-00 EX (Except Honda Security Installed):

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams by Number. Diagrams By Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found at Locations by Photo Number. Locations By Photo Number

Connector Views: Connector terminal views (references to VIEWS) referred to within these diagrams can be found at Connector Views by View Number. Connector Views By View Number
