Component Location Index

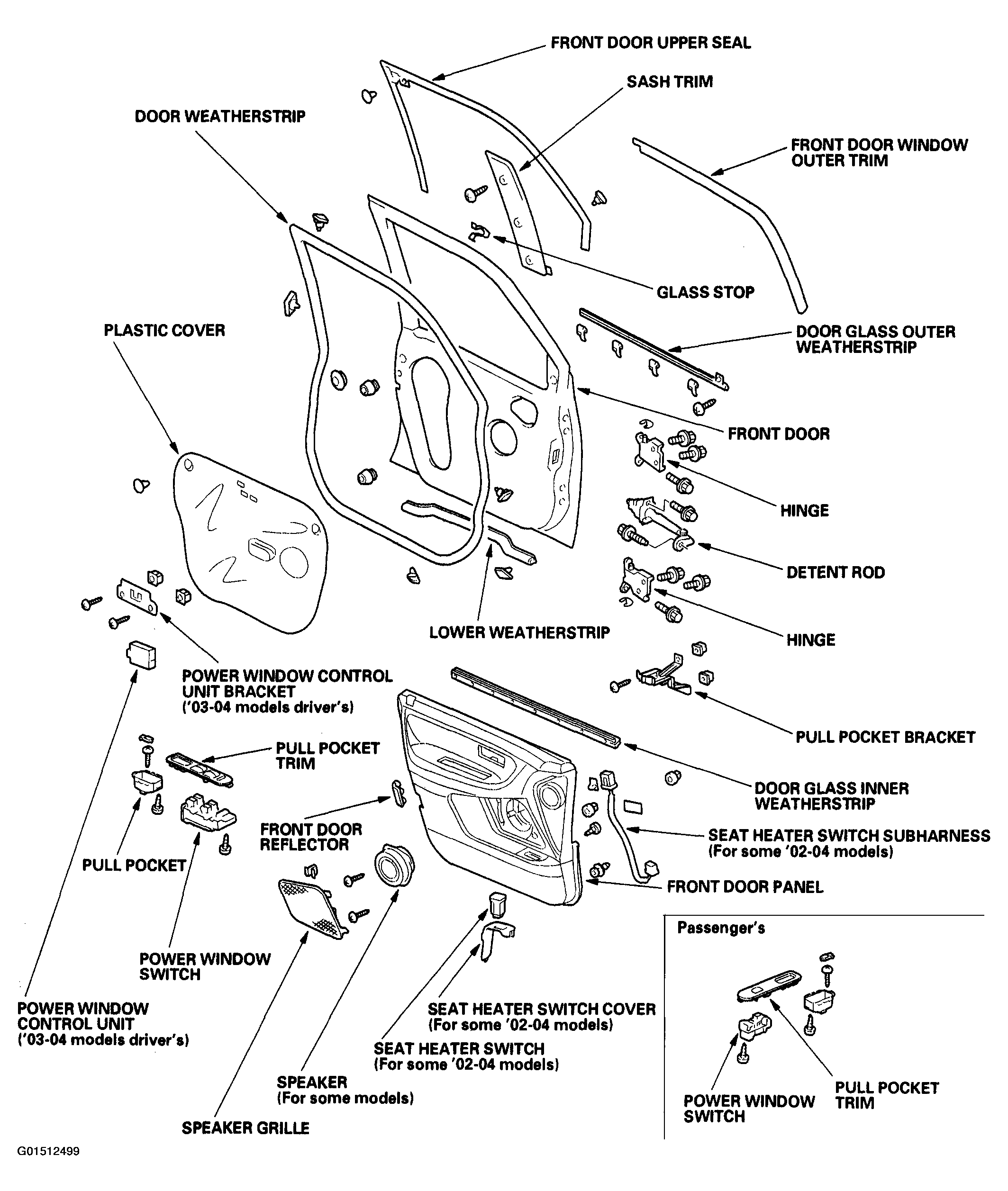

Fig 1: Exploded View Of Front Door (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

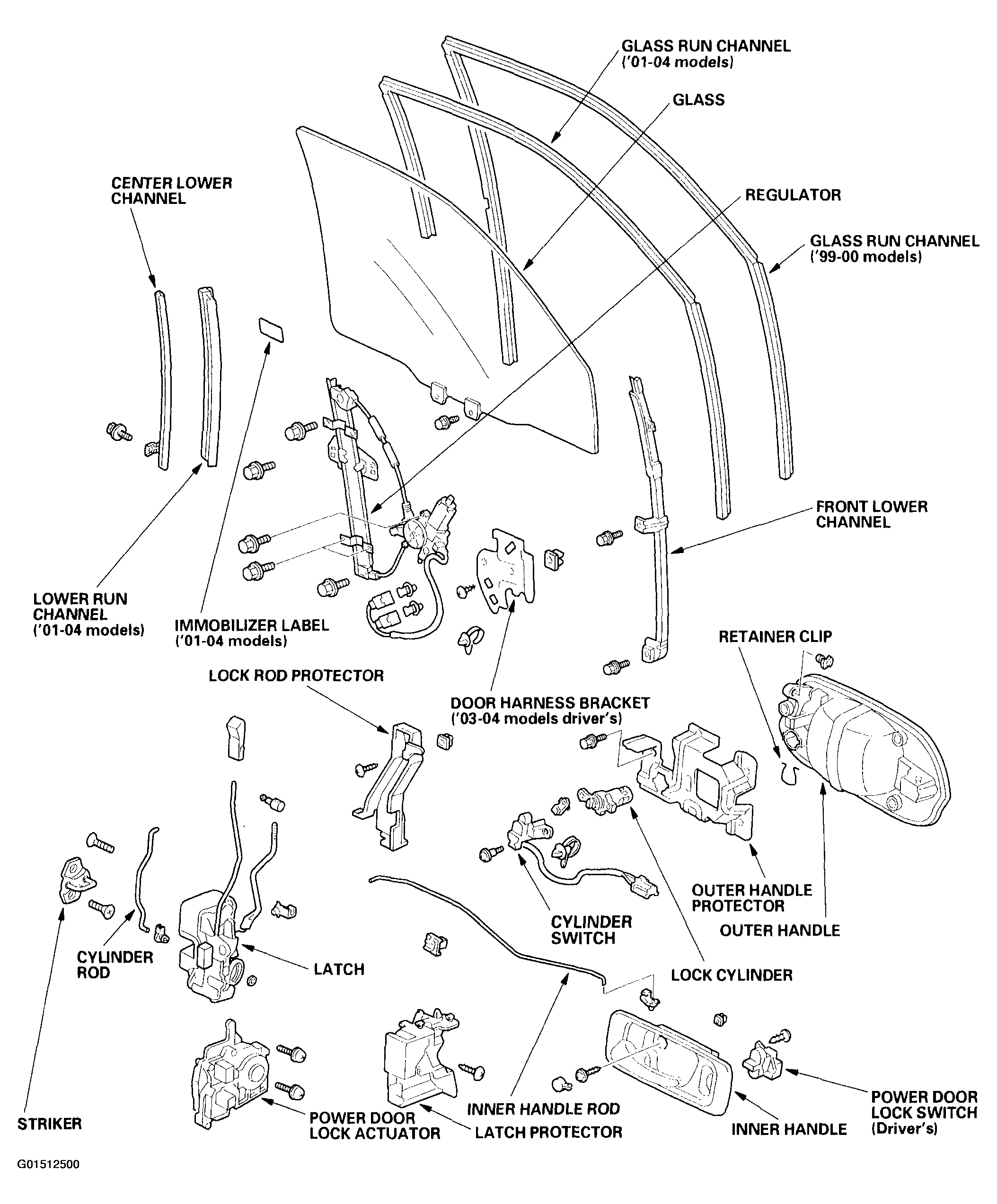

Fig 2: Exploded View Of Front Door (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

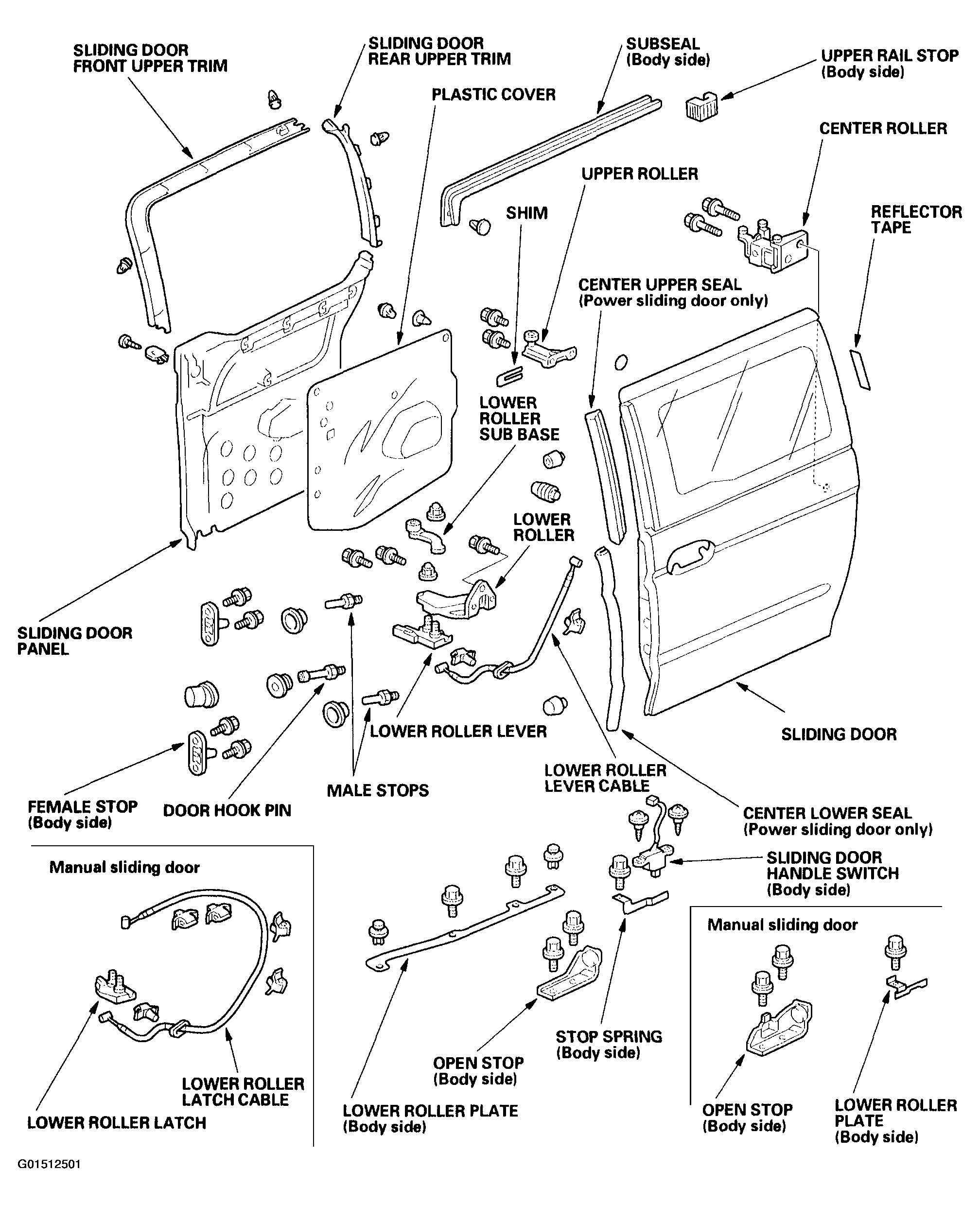

Fig 3: Exploded View Of Sliding Door (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

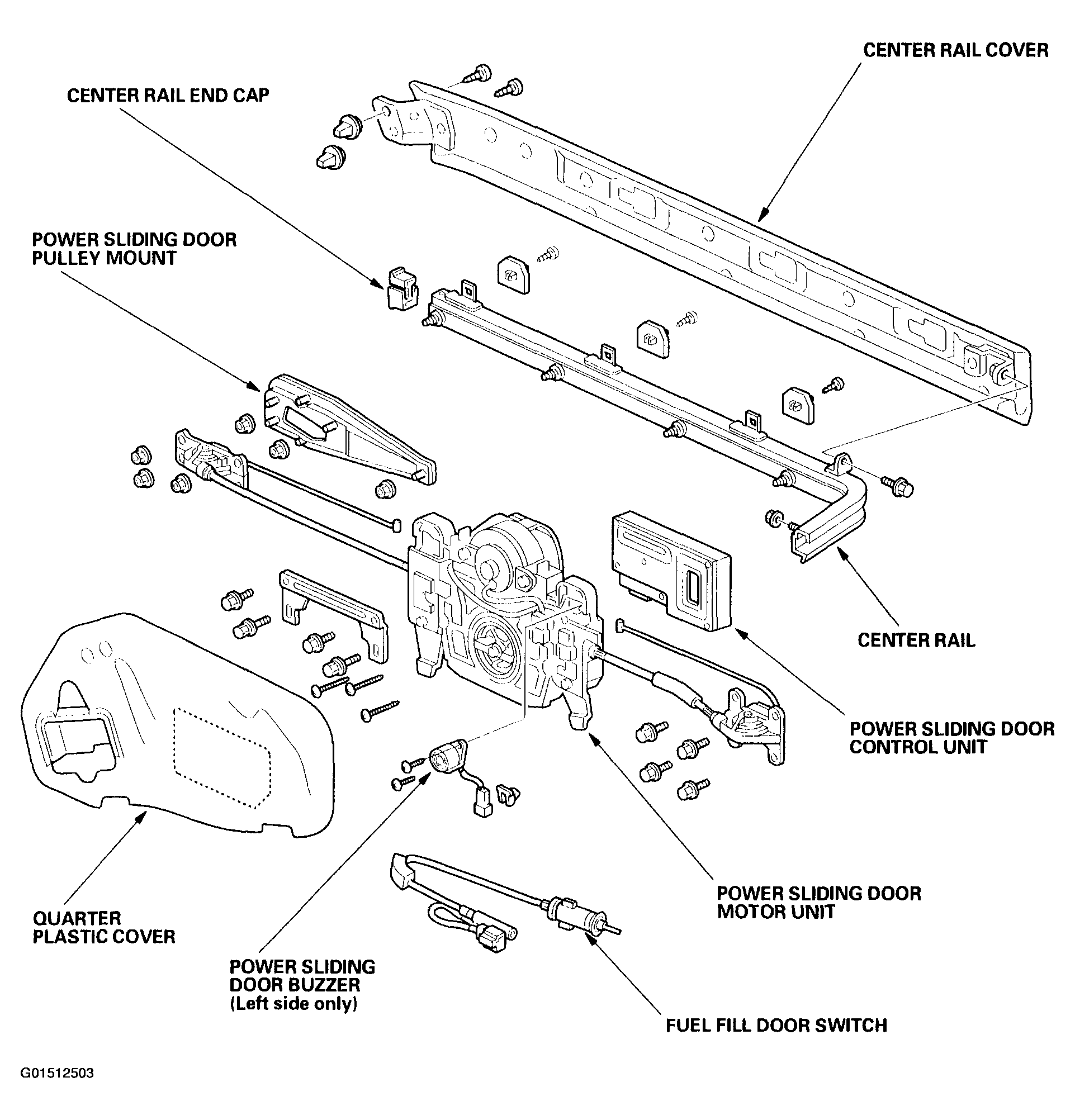

Fig 4: Exploded View Of Sliding Door (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

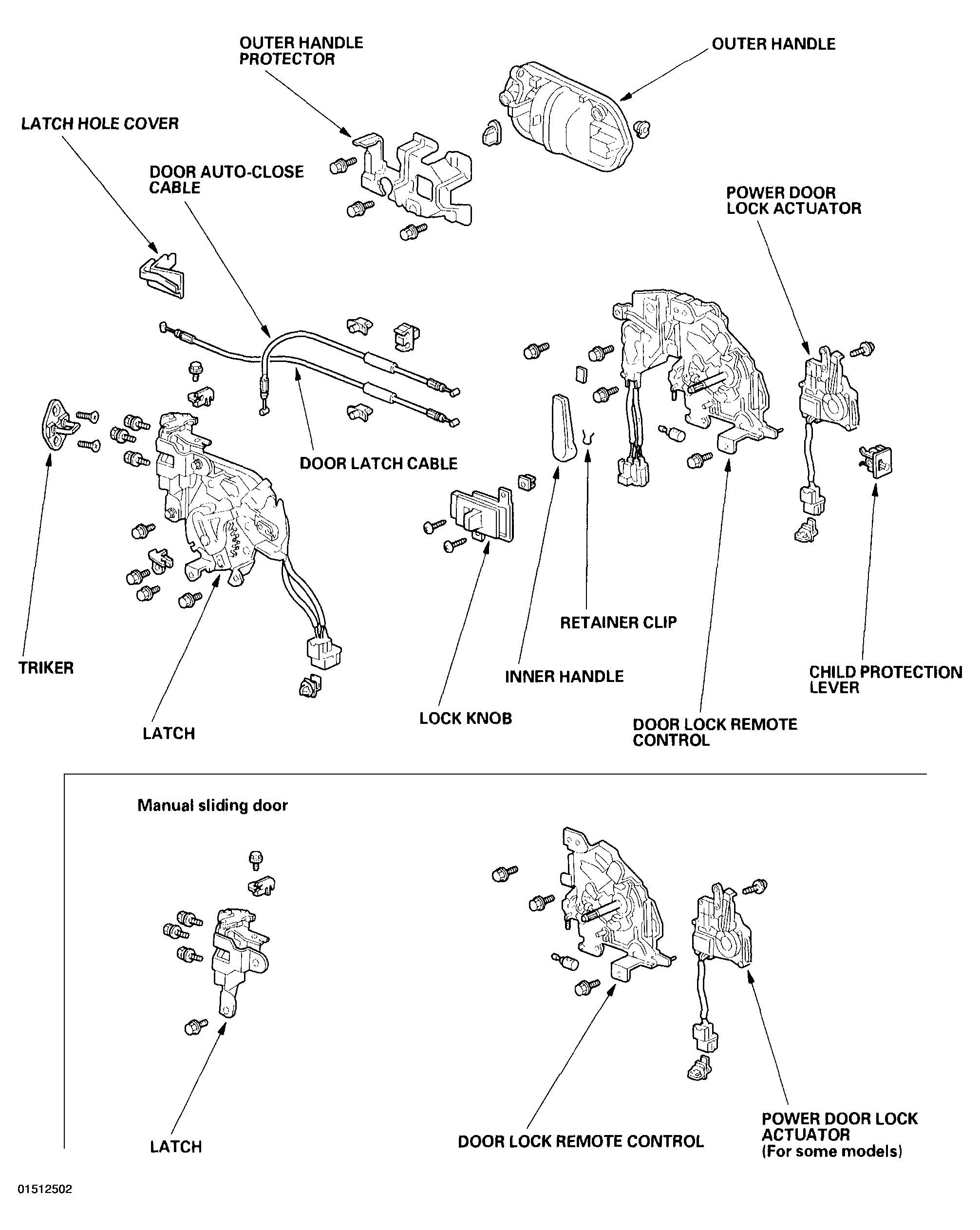

Fig 5: Exploded View Of Sliding Door (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
