Passenger's Window Motor Test

Remove the passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 2P connector from the window motor.

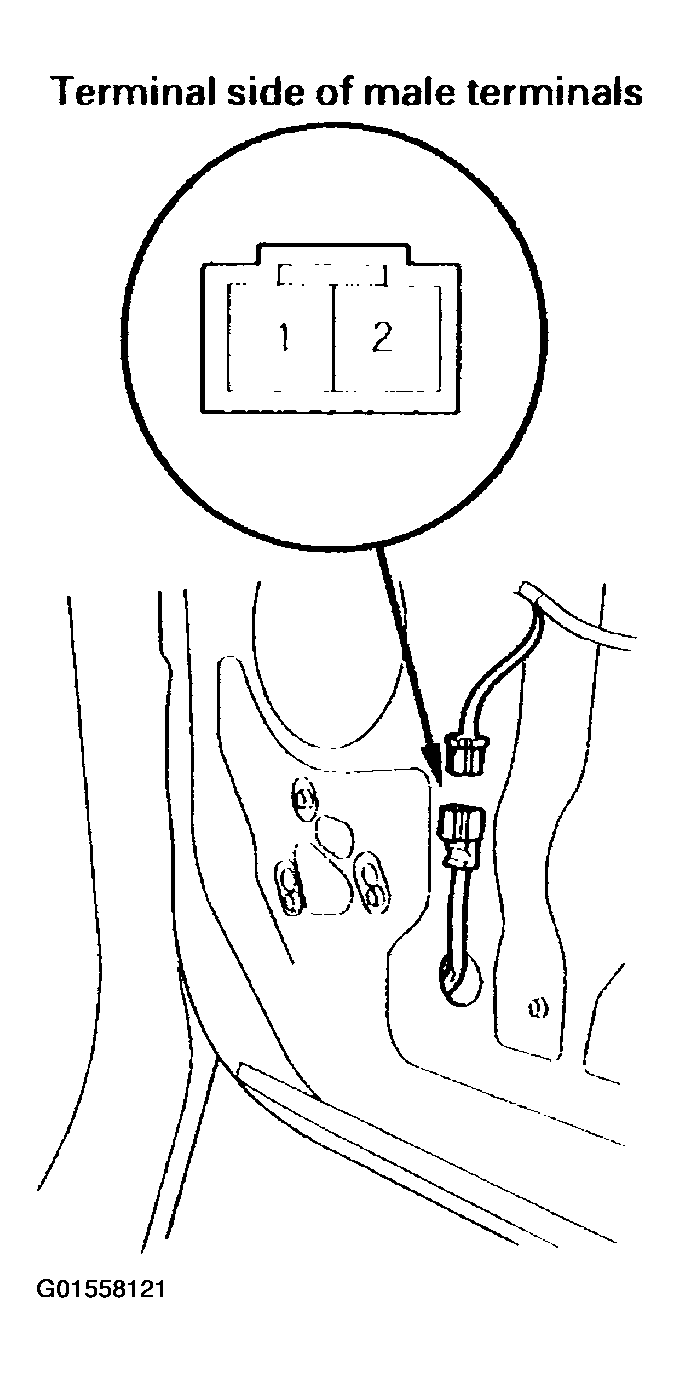

Fig 1: Disconnecting 2P Connector From Window Motor
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check window motor operation by connecting power and ground according to the table. When the motor stops running, disconnect one lead immediately.

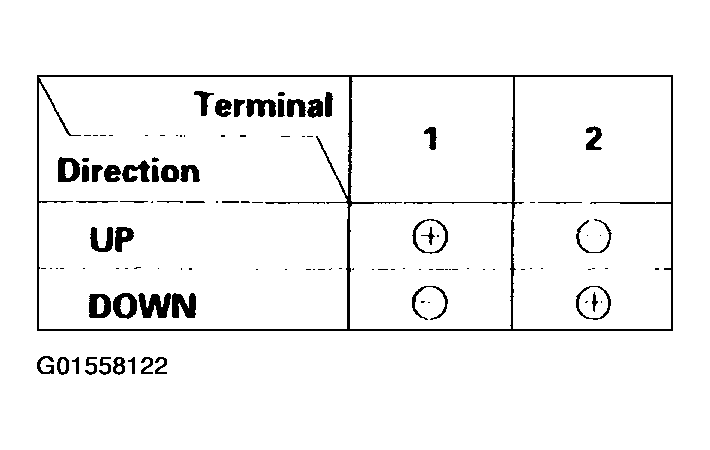

Fig 2: Checking Window Motor Operation By Connecting Power & Ground Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it.
