Passenger's Window Switch Test

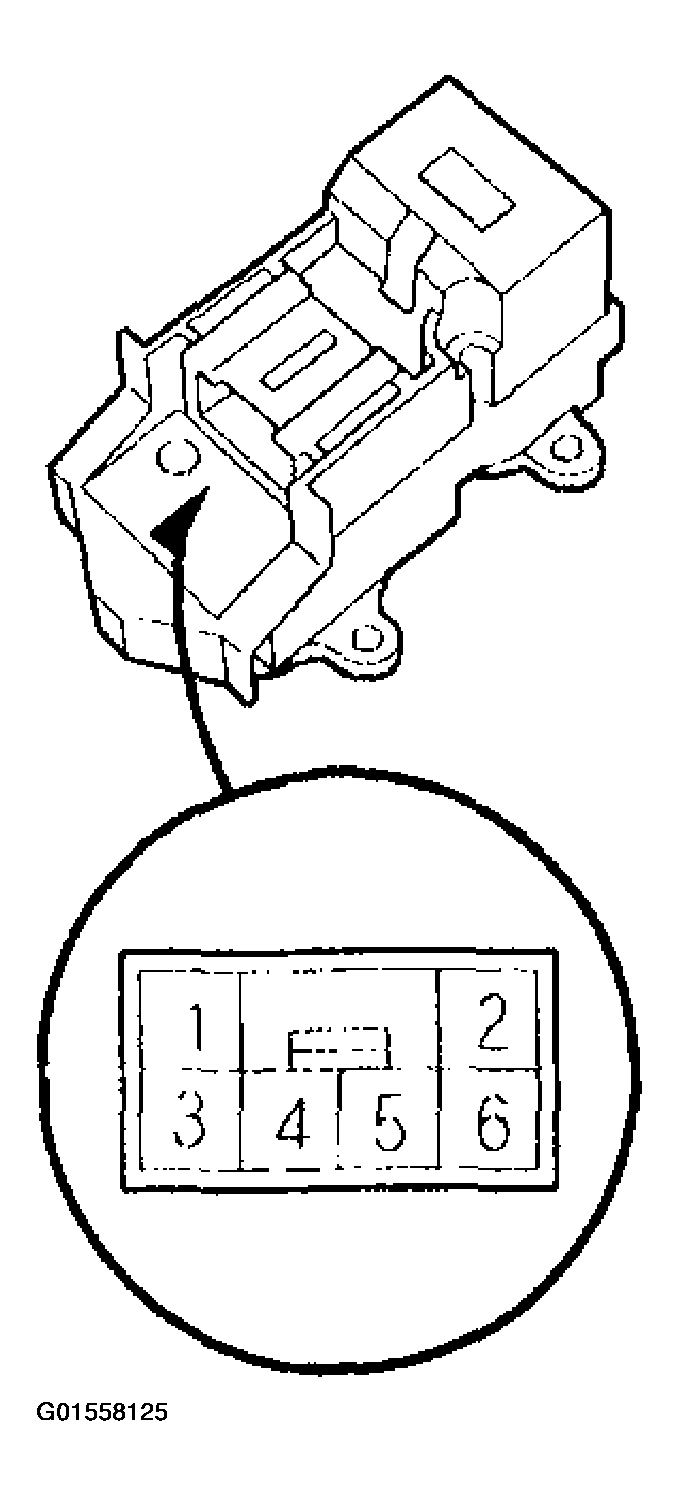

- Remove the front passenger's switch from front passenger's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION
).
Courtesy of AMERICAN HONDA MOTOR CO., INC.

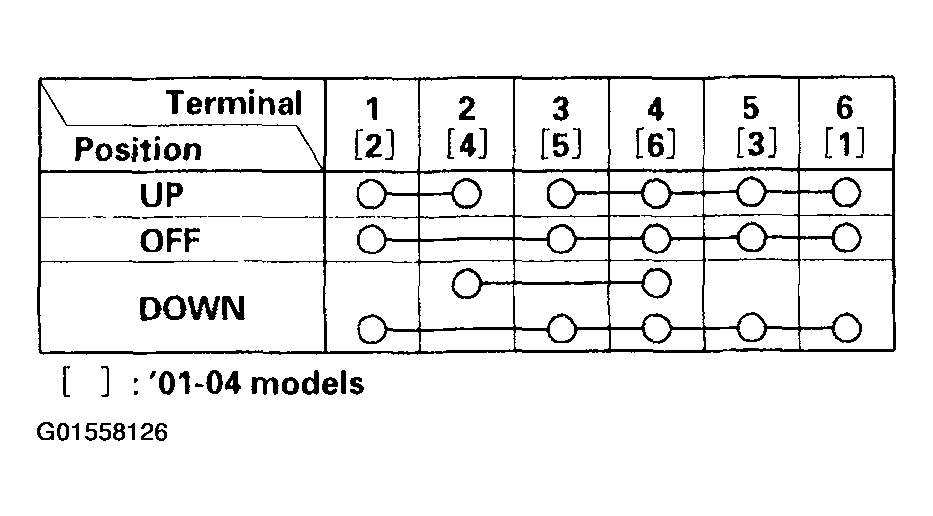

- Check for continuity between the terminals in each switch position according to the table.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the continuity is not as specified, replace the switch.
