Rear Window Motor Test
- Remove the side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE LOWER AREA
).

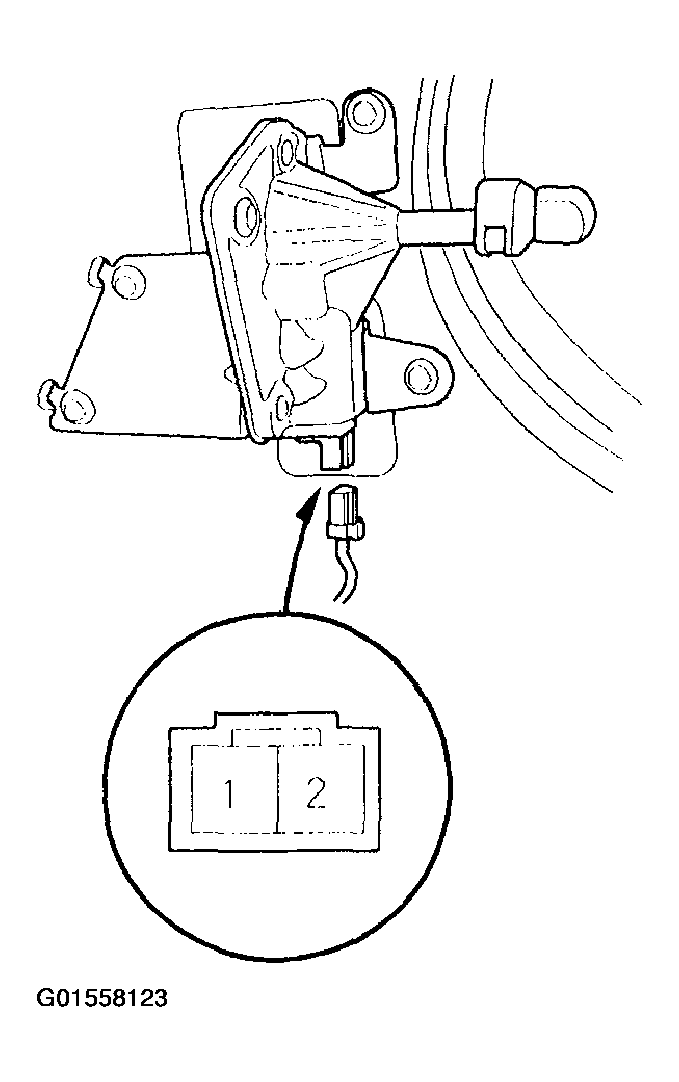

- Disconnect the 2P connector from the rear window motor.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

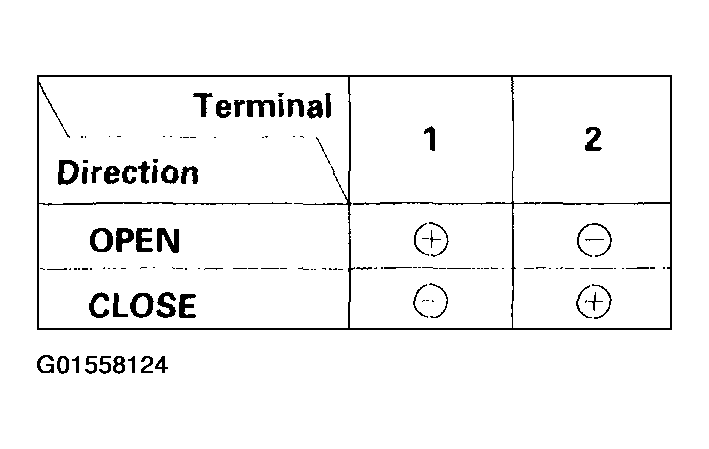

- Check window motor operation by connecting power and ground according to the table. When the motor stops running, disconnect one lead immediately.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the motor does not run or fails to run smoothly, replace it.
