Alternator Control System Test

For alternator control system test, see Fig 1 and Fig 2 .

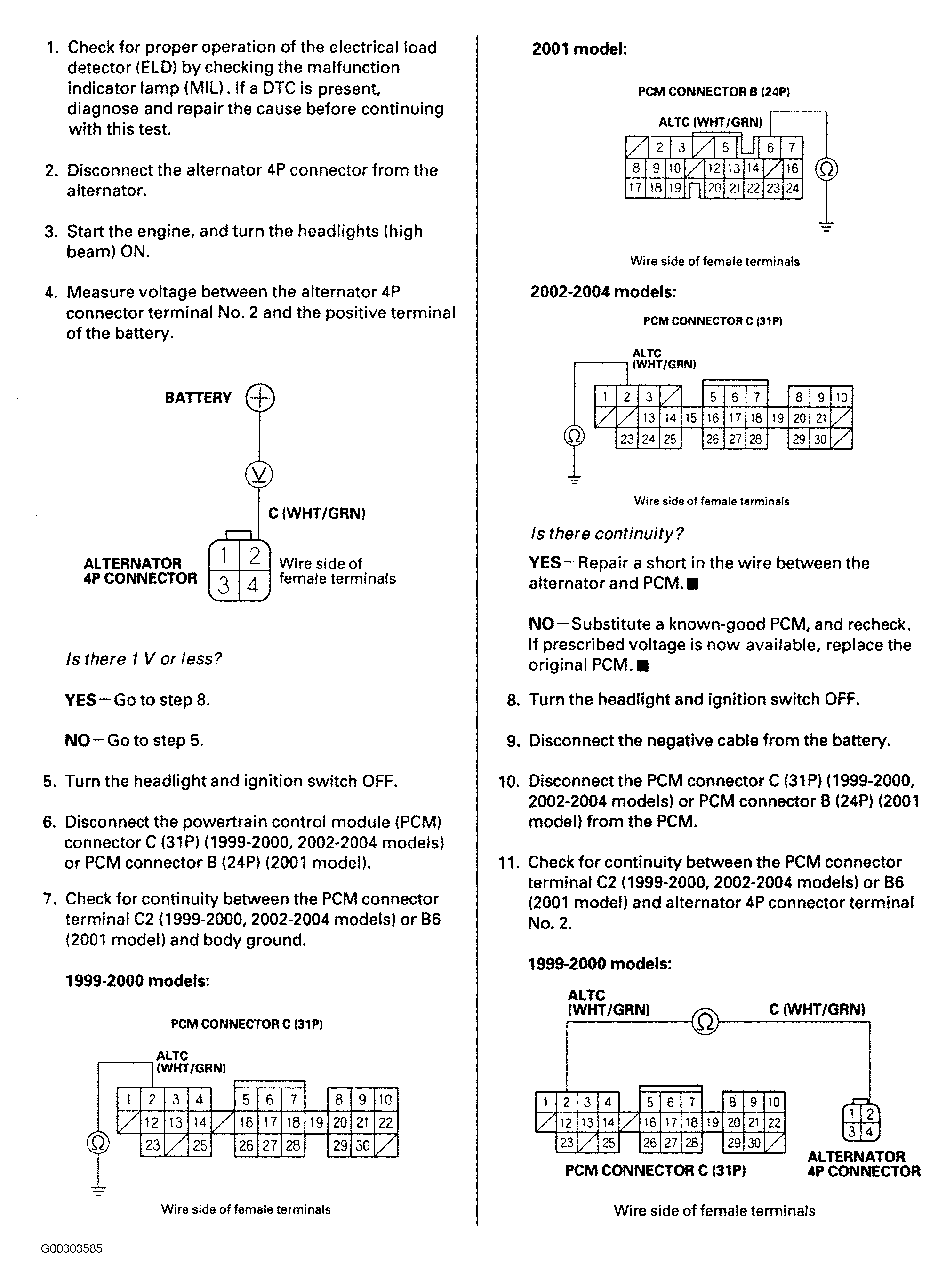

Fig 1: Alternator Control System Test (1 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

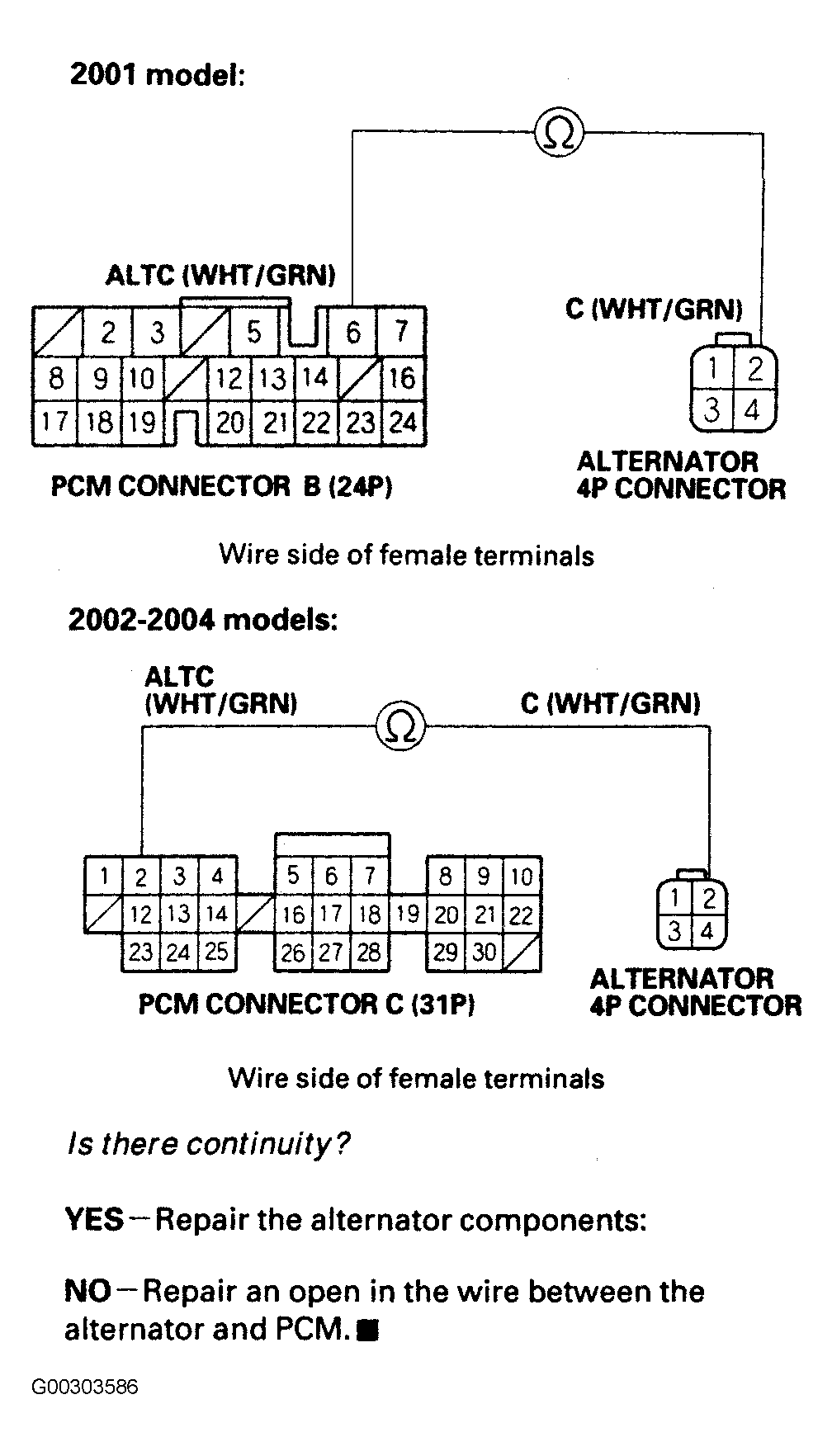

Fig 2: Alternator Control System Test (2 of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
