'99-00 Models

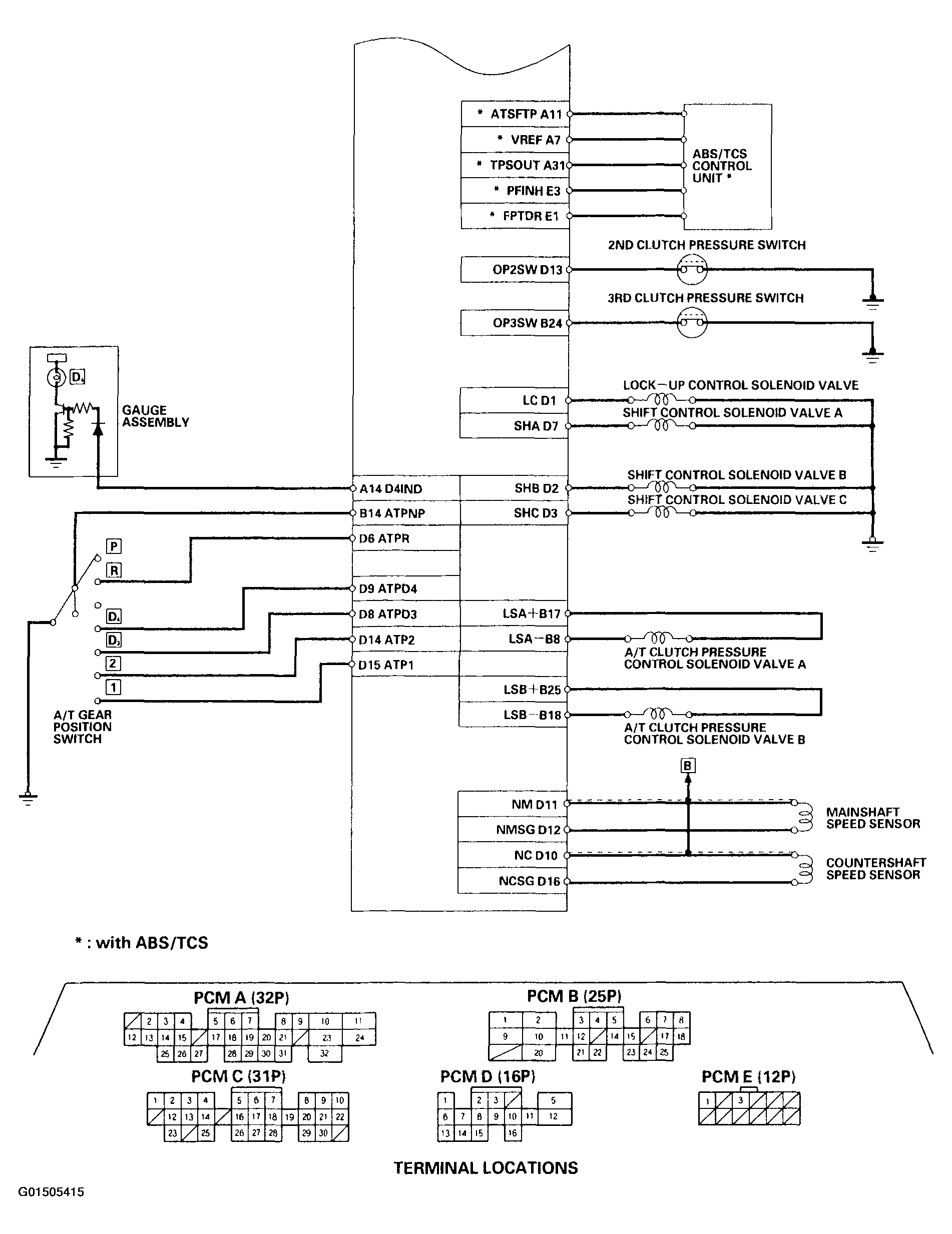

Fig 1: PCM Electrical Connections Wiring Diagram (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

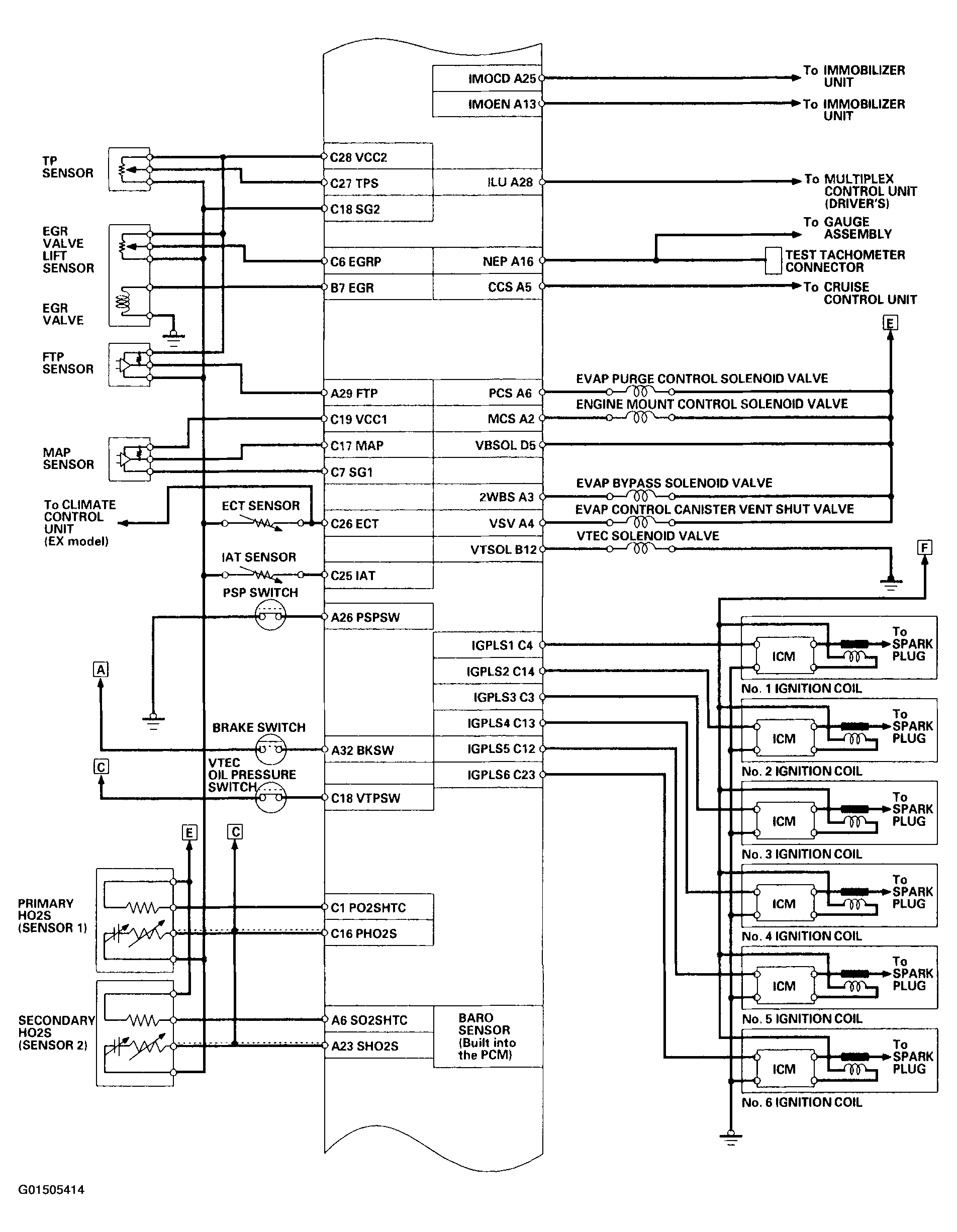

Fig 2: PCM Electrical Connections Wiring Diagram (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

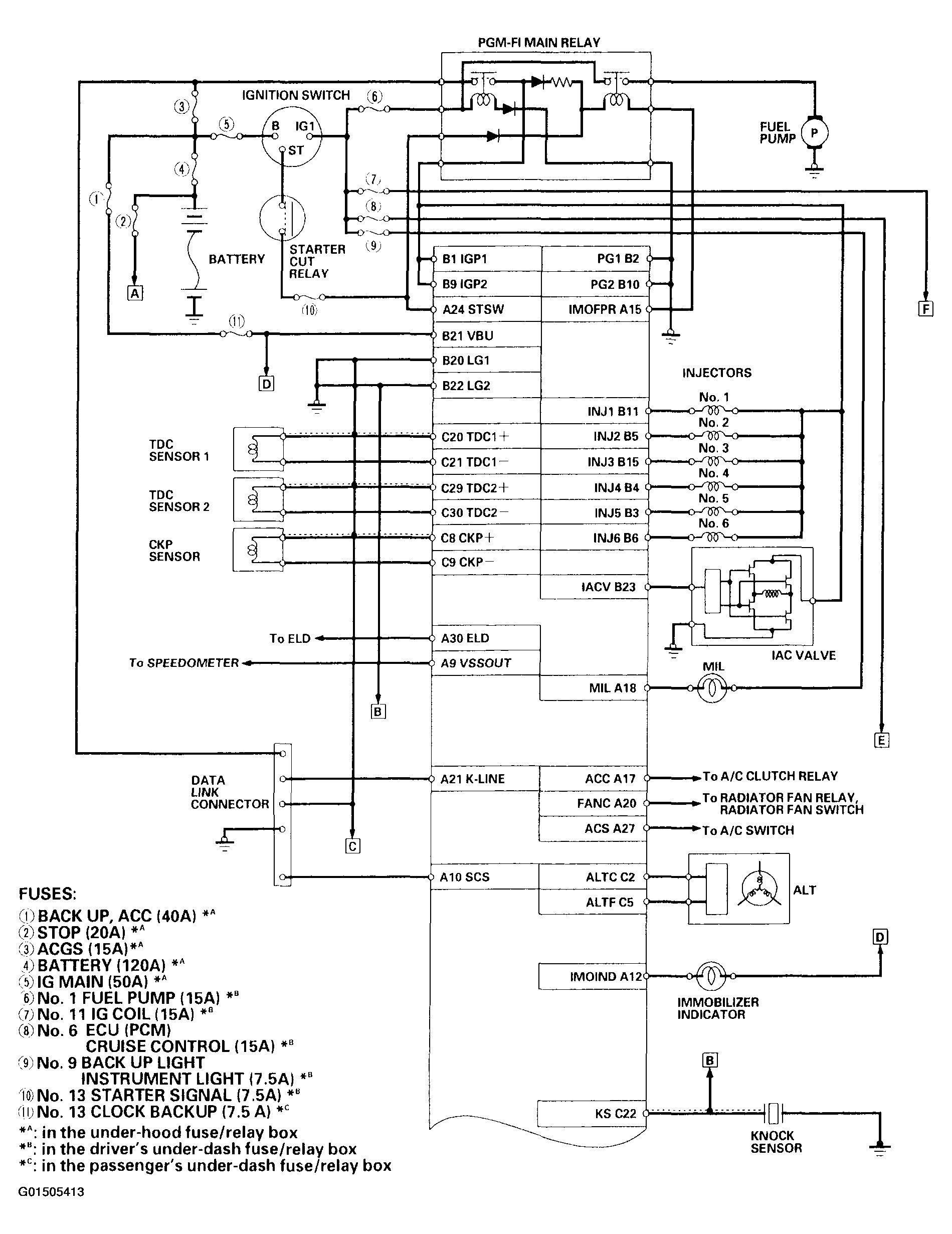

Fig 3: PCM Electrical Connections Wiring Diagram (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
