PCM Inputs and Outputs at Connector E (20P) - '02-04 Models

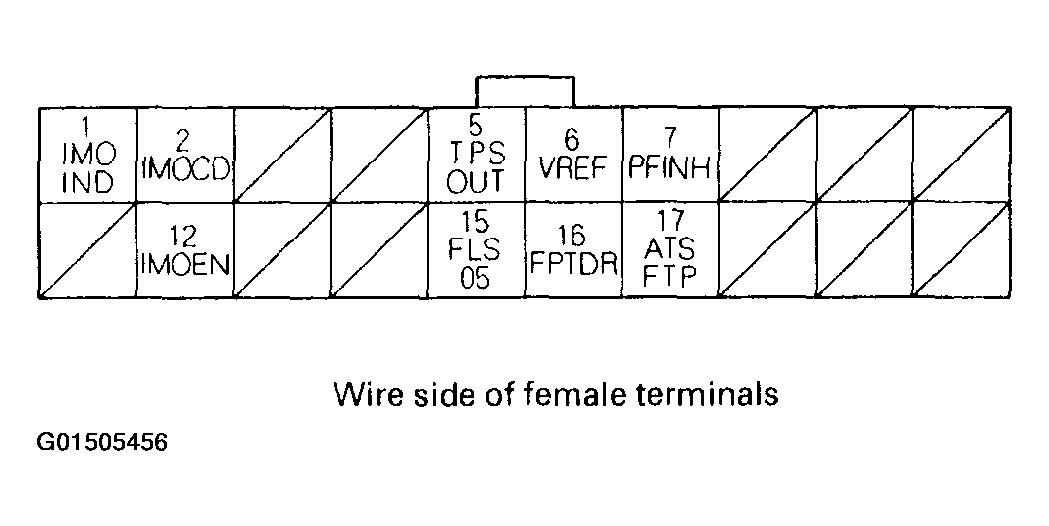

Fig 1: Identifying 20 Pin Connector

Courtesy of AMERICAN HONDA MOTOR CO., INC.

NOTE: Standard battery voltage is 12 V

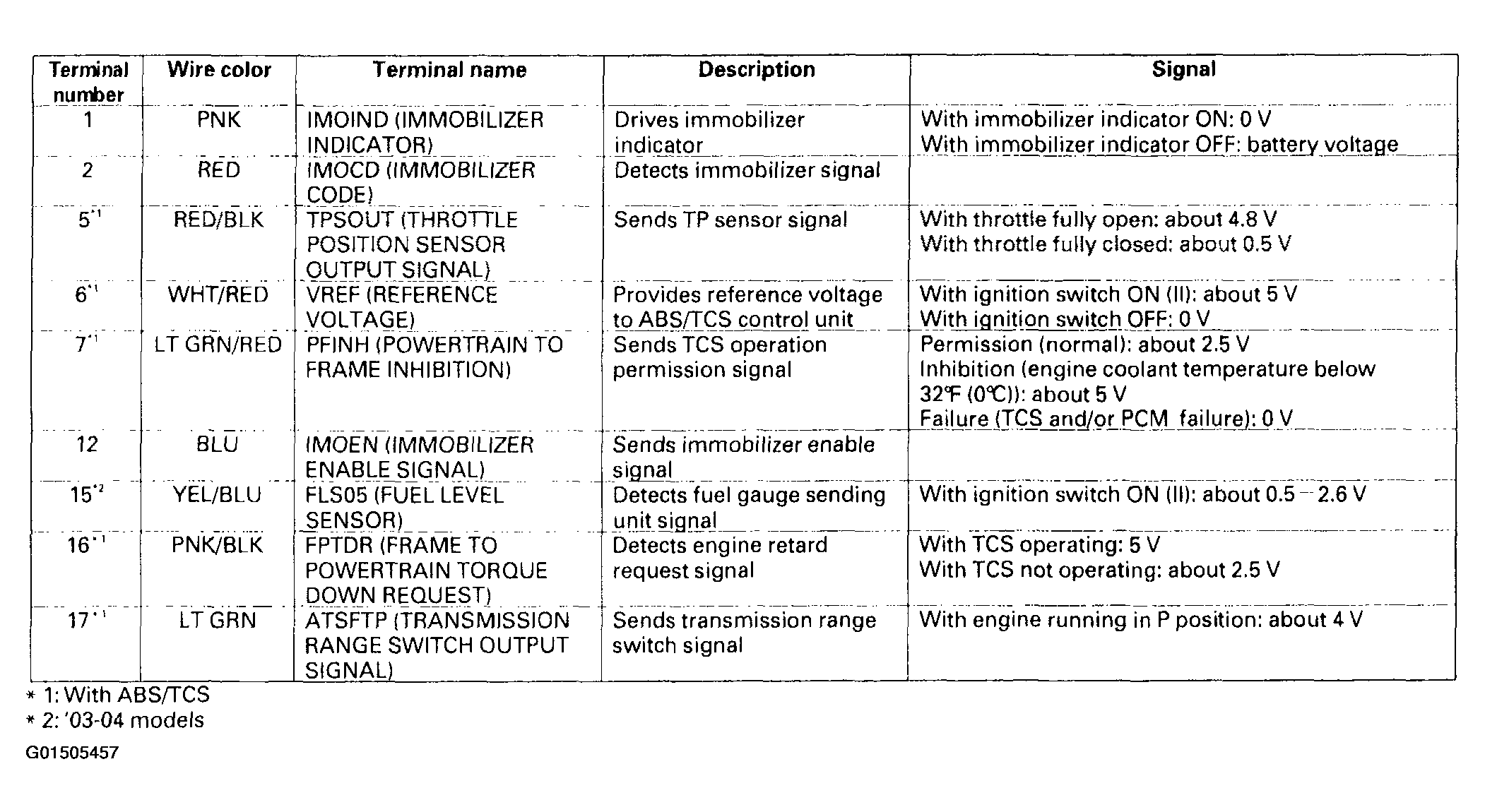

Fig 2: PCM Inputs & Outputs Pin Voltage Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
