'99-00, '02-04 Models

NOTE: Information marked with an asterisk (*) applies to '02-04 models.

Shift the transmission in P or N.
Measure voltage between PCM connector terminals A24 and B20 with the ignition switch in the START position (III).

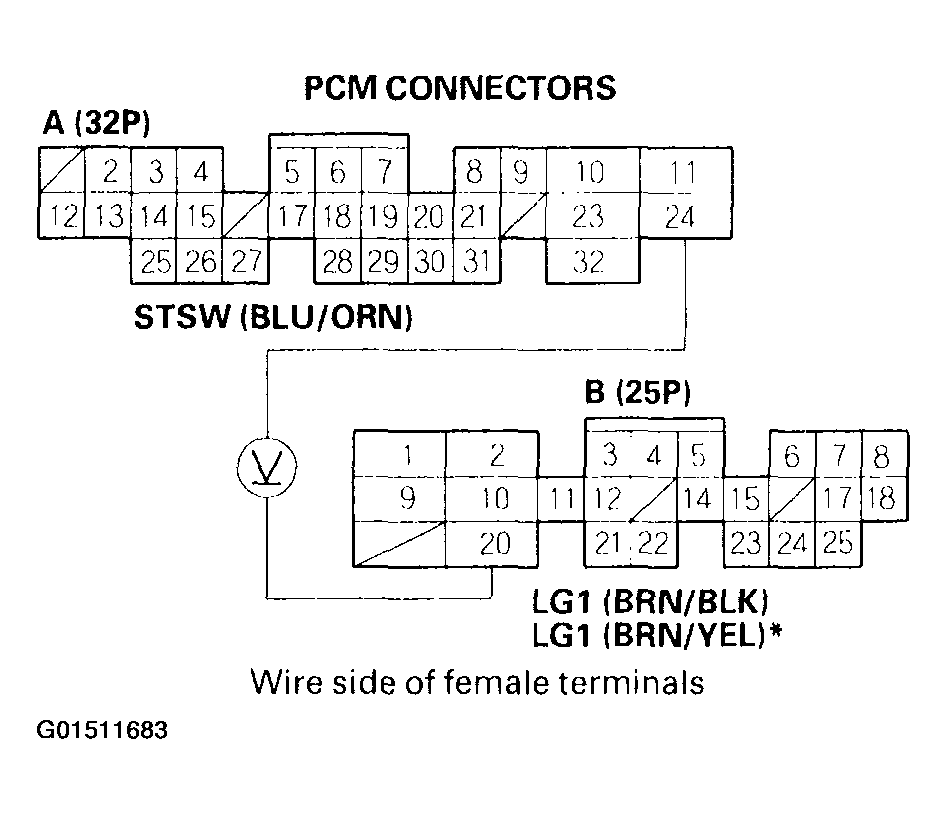

Fig 1: Measuring Voltage Between PCM Connector Terminals A24 & B20 With The Ignition Switch In The START Position (III)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?
1. YES: The starter switch signal is OK.
2. NO: Go to step 3.
Inspect the No. 13 STARTER SIGNAL (7.5A) fuse in the driver's under-dash fuse/relay box.
Is the fuse OK?
1. YES: Repair open in the wire between the PCM (A24) and the No. 13 STARTER SIGNAL (7.5A) fuse.
2. NO: Repair short in the wire between the PCM (A24) and the No. 13 STARTER SIGNAL (7.5A) fuse or the PGM-FI main relay. Replace the No. 13 STARTER SIGNAL (7.5A) fuse.
