Air Cleaner Housing Disassembly/Reassembly
- Drain the coolant. (see appropriate COOLING SYSTEM (Mechanical) article
).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the air cleaner housing

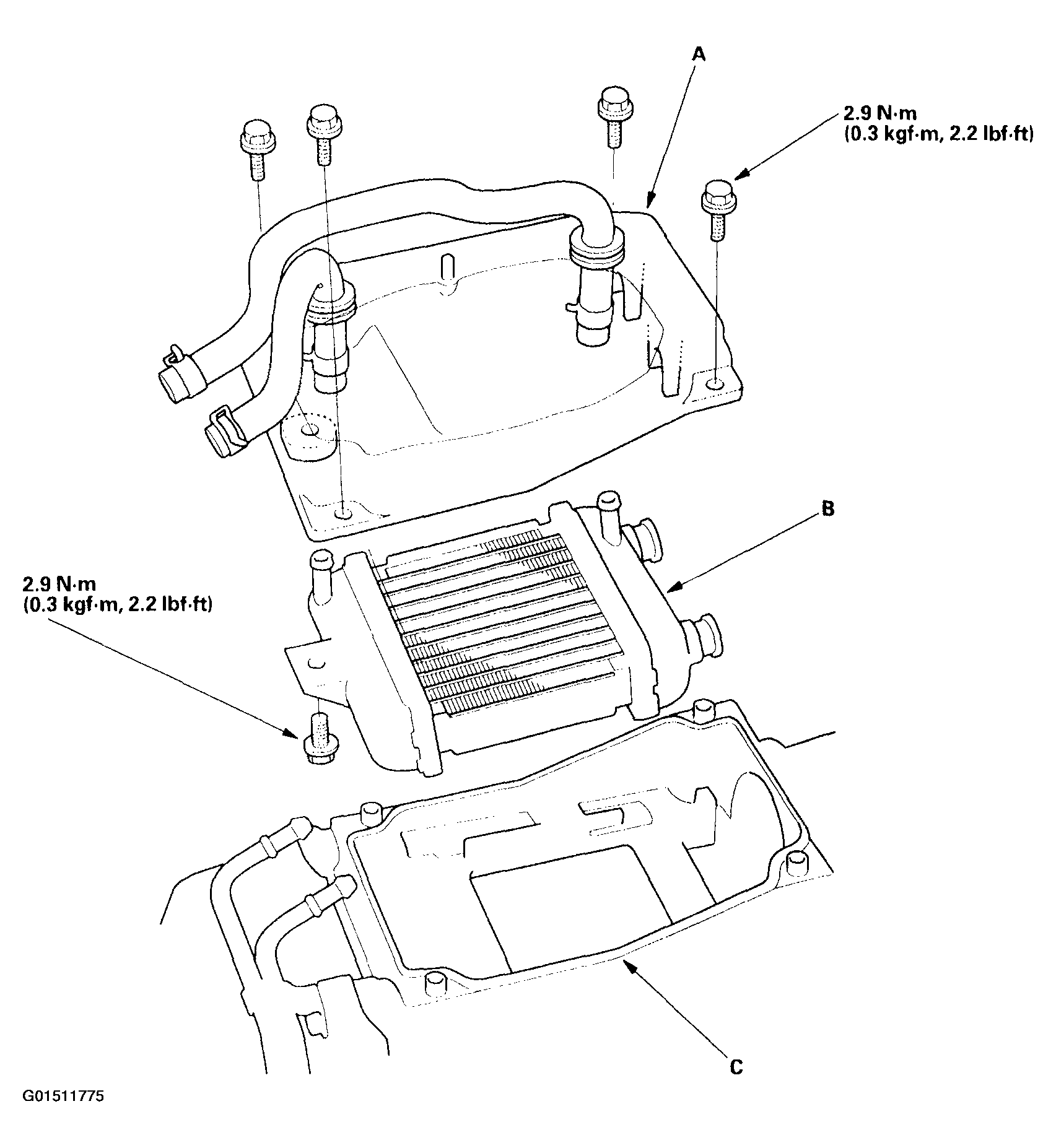

- Remove the cover (A) and the radiator (B) from the air cleaner housing (C).
- Install the parts in the reverse order of removal.
- Fill the radiator with coolant. (see appropriate COOLING SYSTEM (Mechanical) article
).
