Component Location Index

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

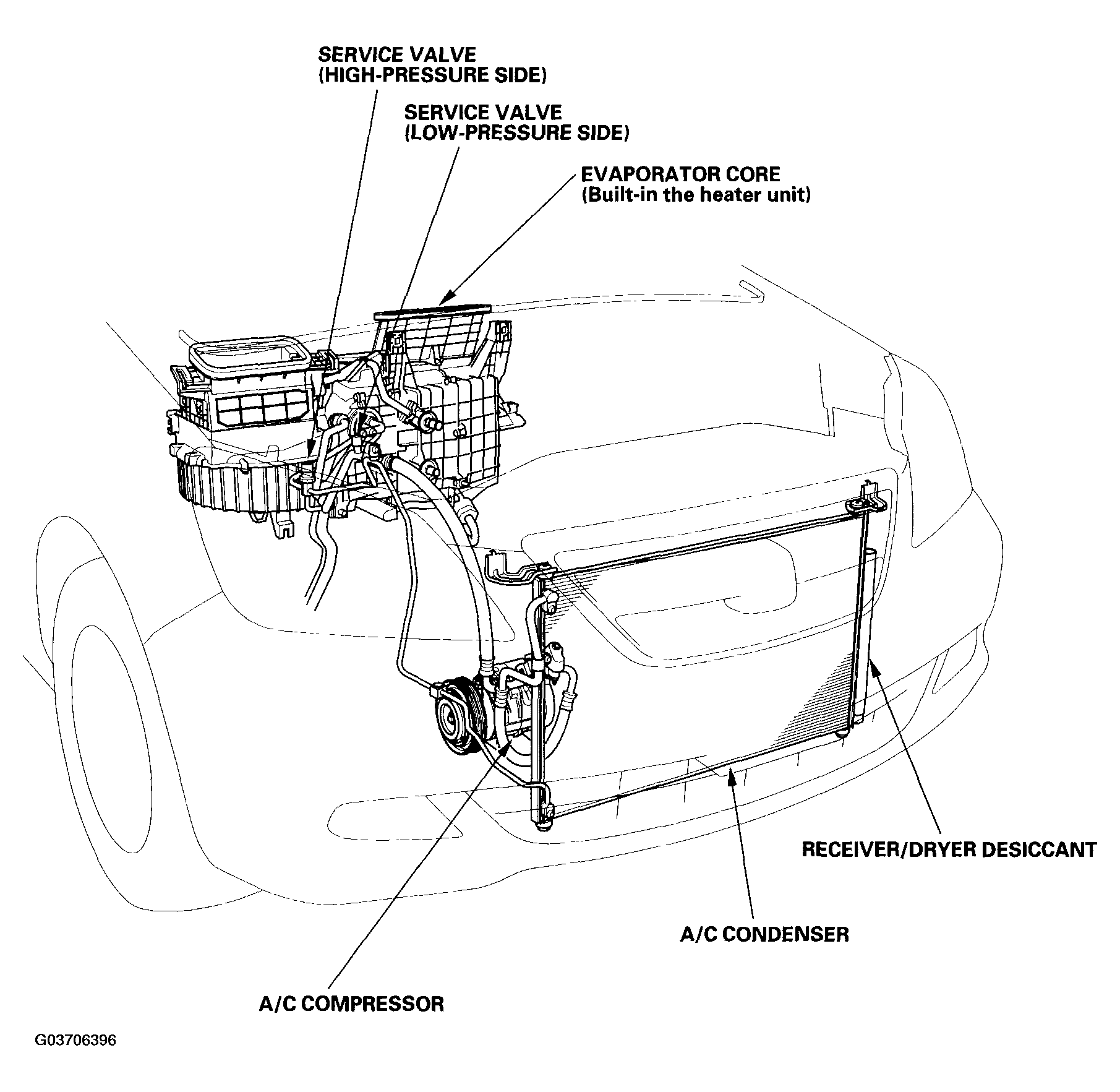

Fig 1: Identifying Climate Control Components Location (1 Of 3)
G03706396Courtesy of AMERICAN HONDA MOTOR CO., INC.

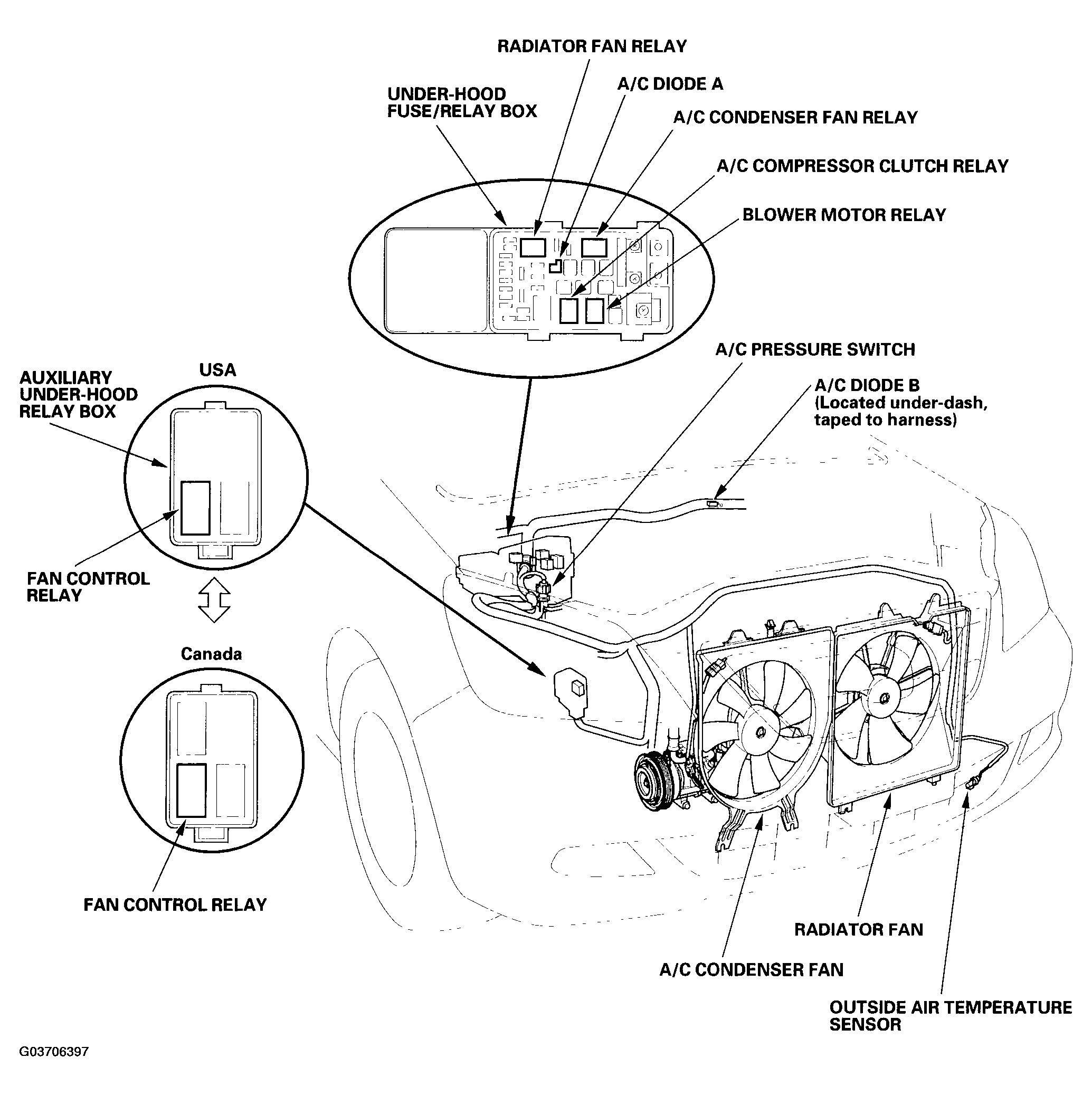

Fig 2: Identifying Climate Control Components Location (2 Of 3)
G03706397Courtesy of AMERICAN HONDA MOTOR CO., INC.

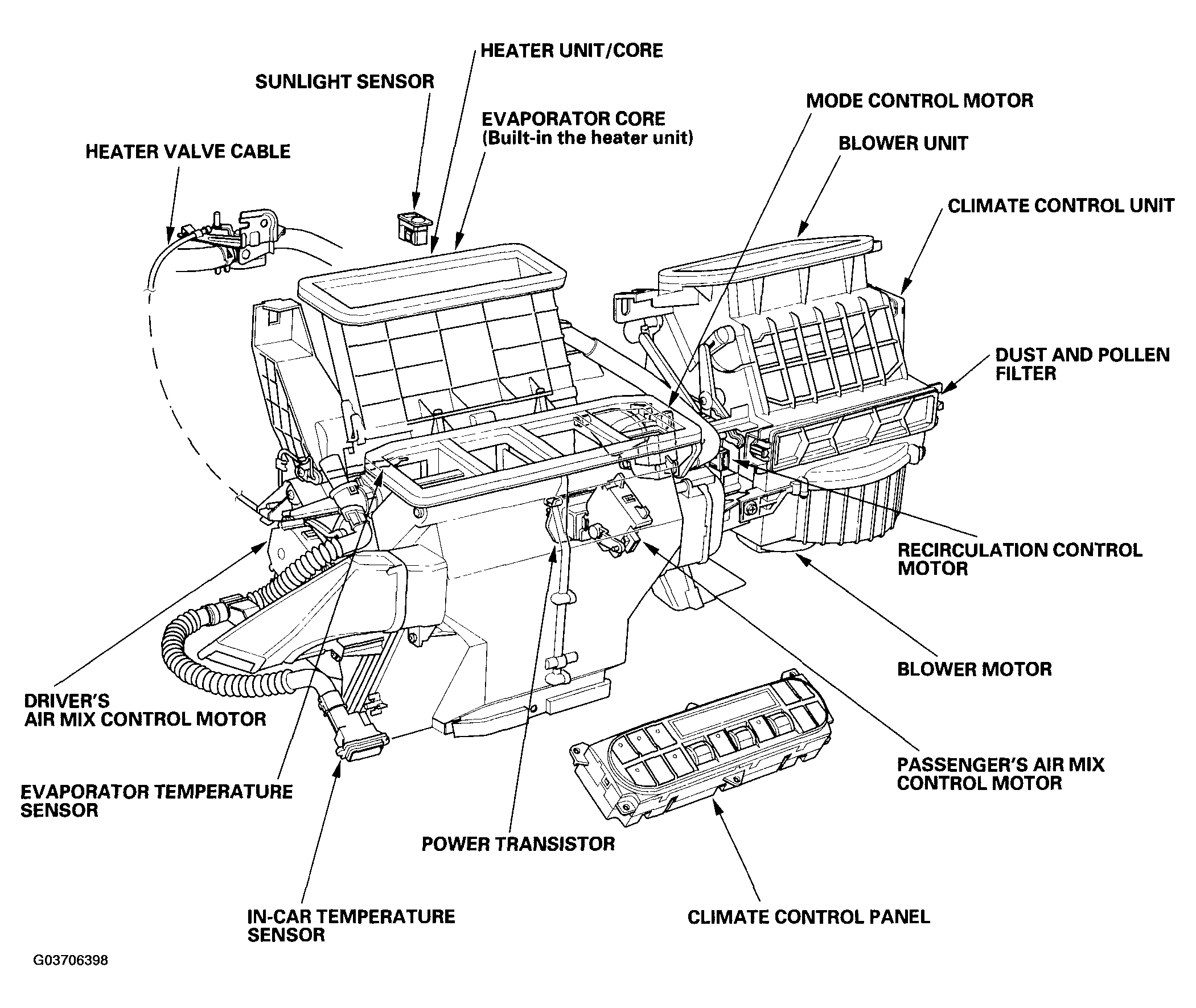

Fig 3: Identifying Climate Control Components Location (3 Of 3)
G03706398Courtesy of AMERICAN HONDA MOTOR CO., INC.
