Ignition Coils Connector End View

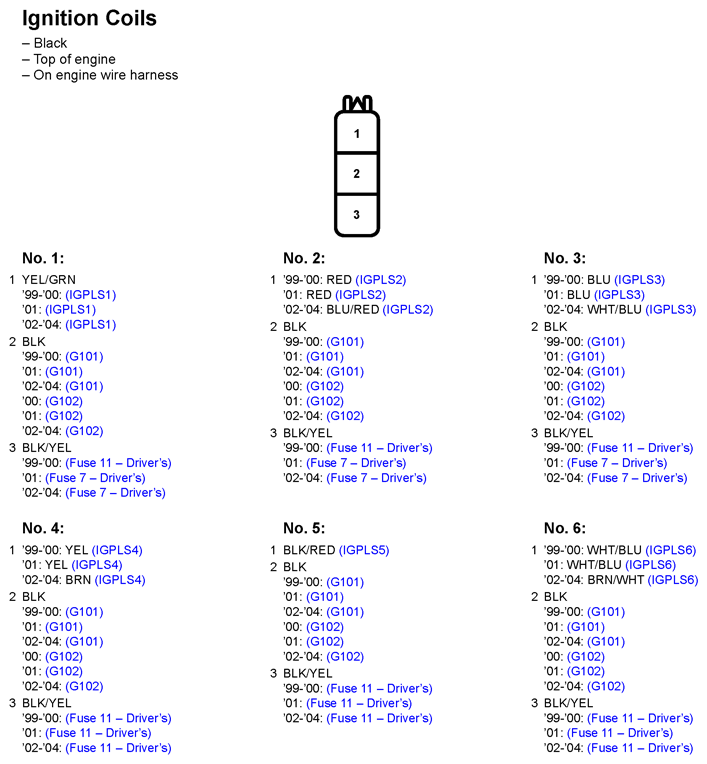

Fig 1: Ignition Coils Connector End View
G11250725Courtesy of AMERICAN HONDA MOTOR CO., INC.
