Fluid leakage Inspection

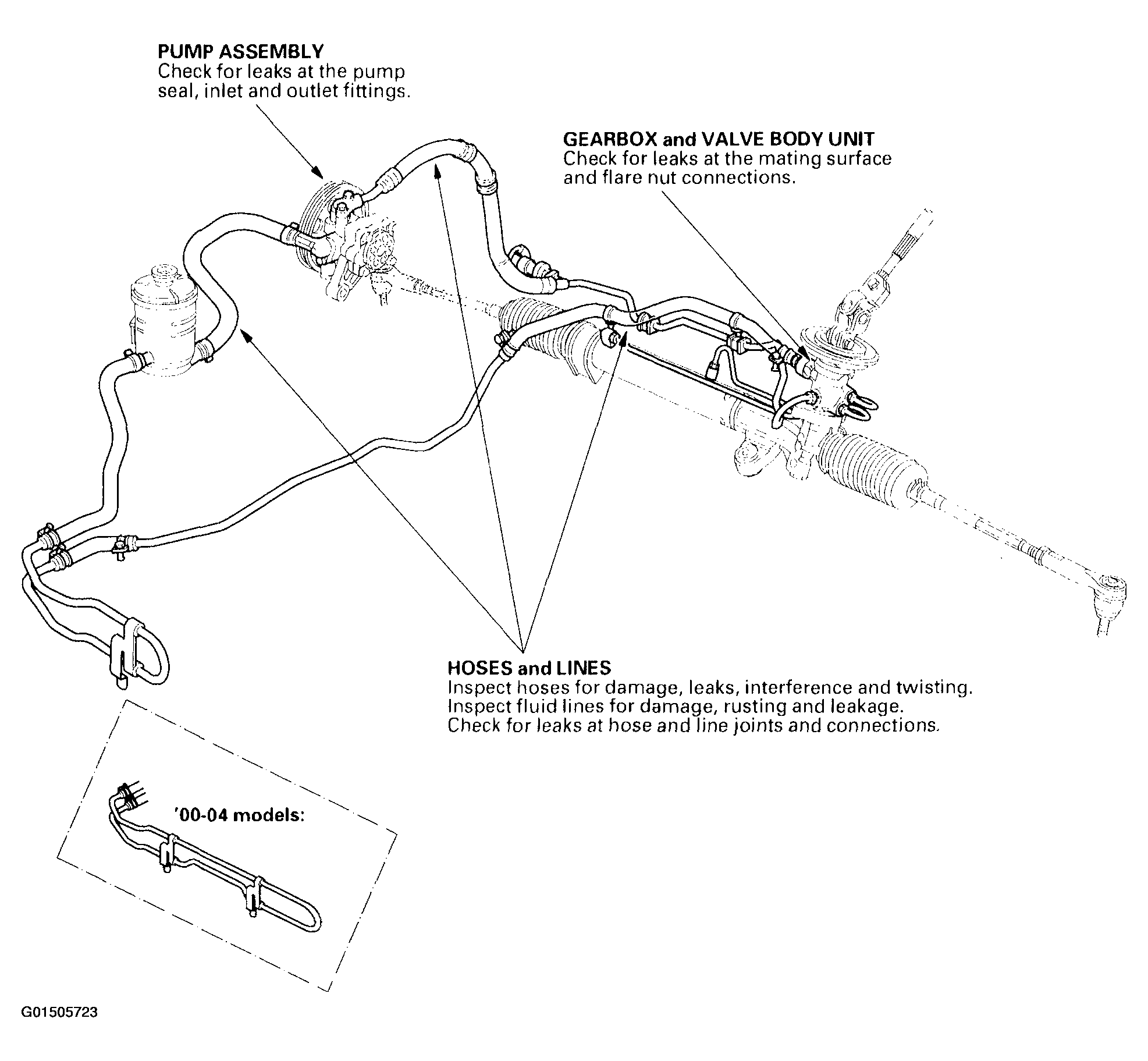

Fig 1: Identifying Fluid Leakage Components

G01505723

Courtesy of AMERICAN HONDA MOTOR CO., INC.
