ATF Level Check
NOTE:
Keep all foreign particles out of the transmission.
- Warm up the engine to normal operating temperature (the radiator fan comes on).
- Park the vehicle on the level ground. Turn off the engine.

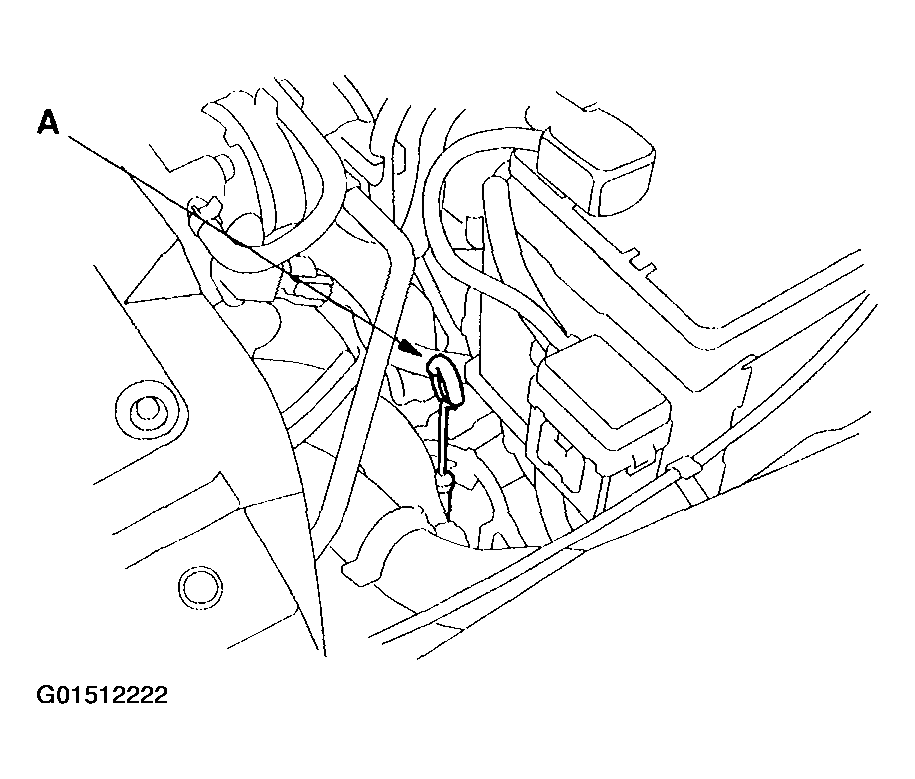

- Remove the dipstick (yellow loop) (A) from the transmission, and wipe it with a clean cloth.
- Insert the dipstick into the transmission.

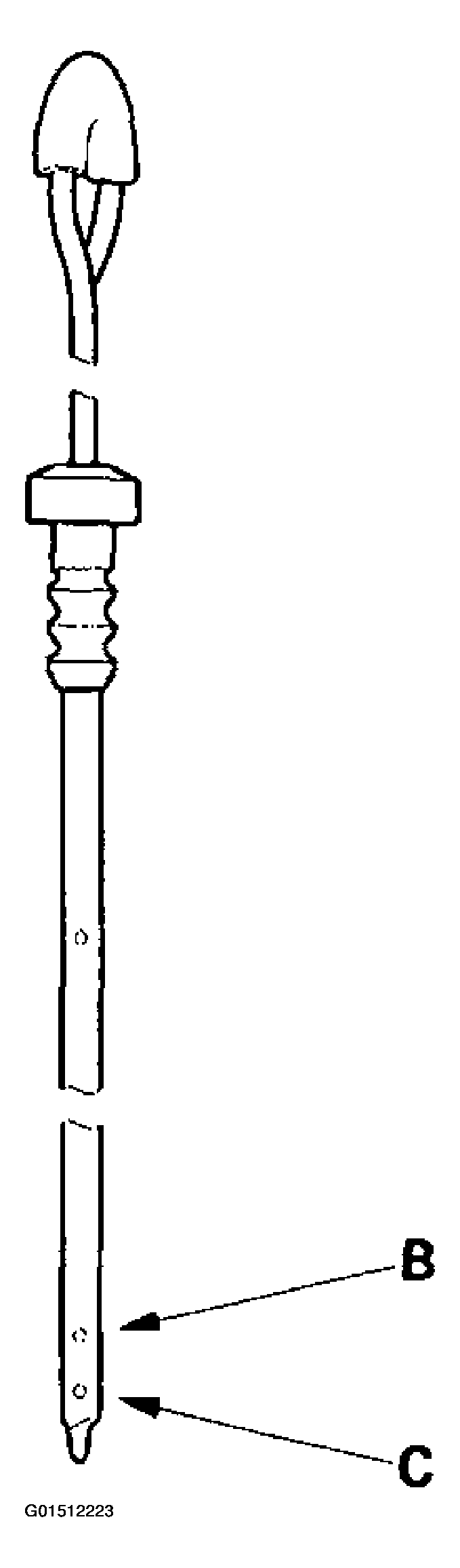

- Remove the dipstick and check the fluid level. It should be between the upper mark (B) and lower mark (C).
- If the level is below the lower mark, check for fluid leaks at the transmission, hose and line joints. If a problem is found, fix it before filling the transmission.

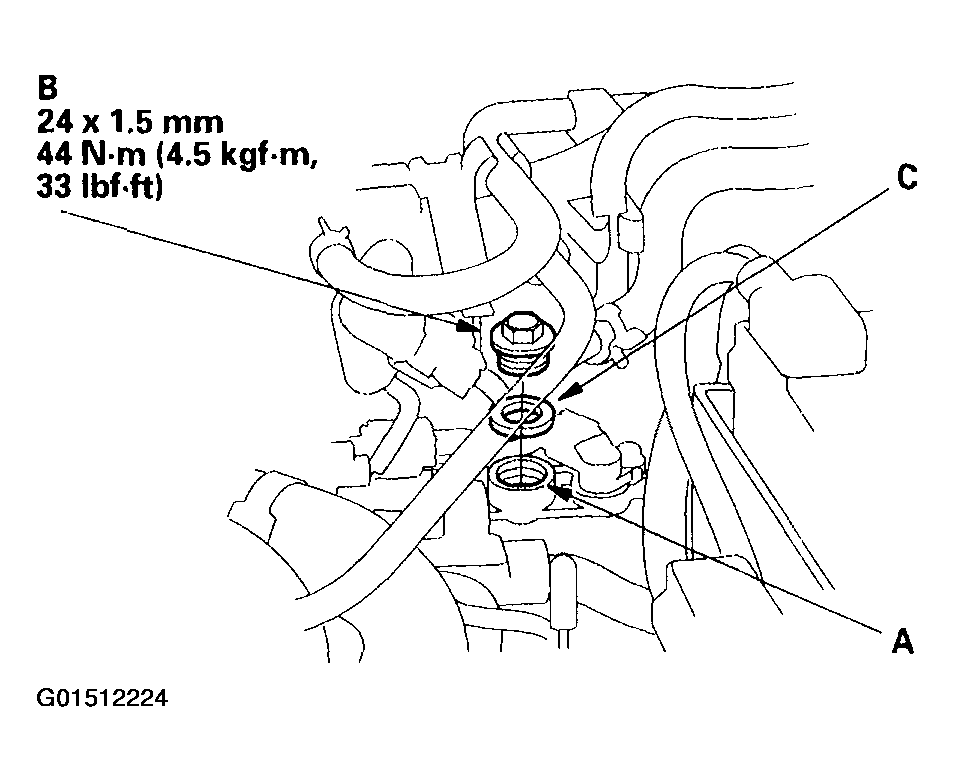

- If necessary, fill the transmission into the filler hole (A) to bring the fluid level up to the upper mark. Always use Honda ATF-Z1 Automatic Transmission Fluid (ATF). Using a non-Honda ATF can affect shift quality.
- If the level is above the upper mark, drain the ATF to proper level (see step 3 on ATF Replacement ).
- Install the ATF filler bolt (B) with a new sealing washer (C).
- Insert the dipstick back into the transmission.
NOTE:
Check the fluid level within 60-90 seconds after turning the engine off.
