Pinout Values and Diagnostic Parameters

PCM Inputs and Outputs





The PCM terminal voltage and measuring conditions for the A/T control system are shown.

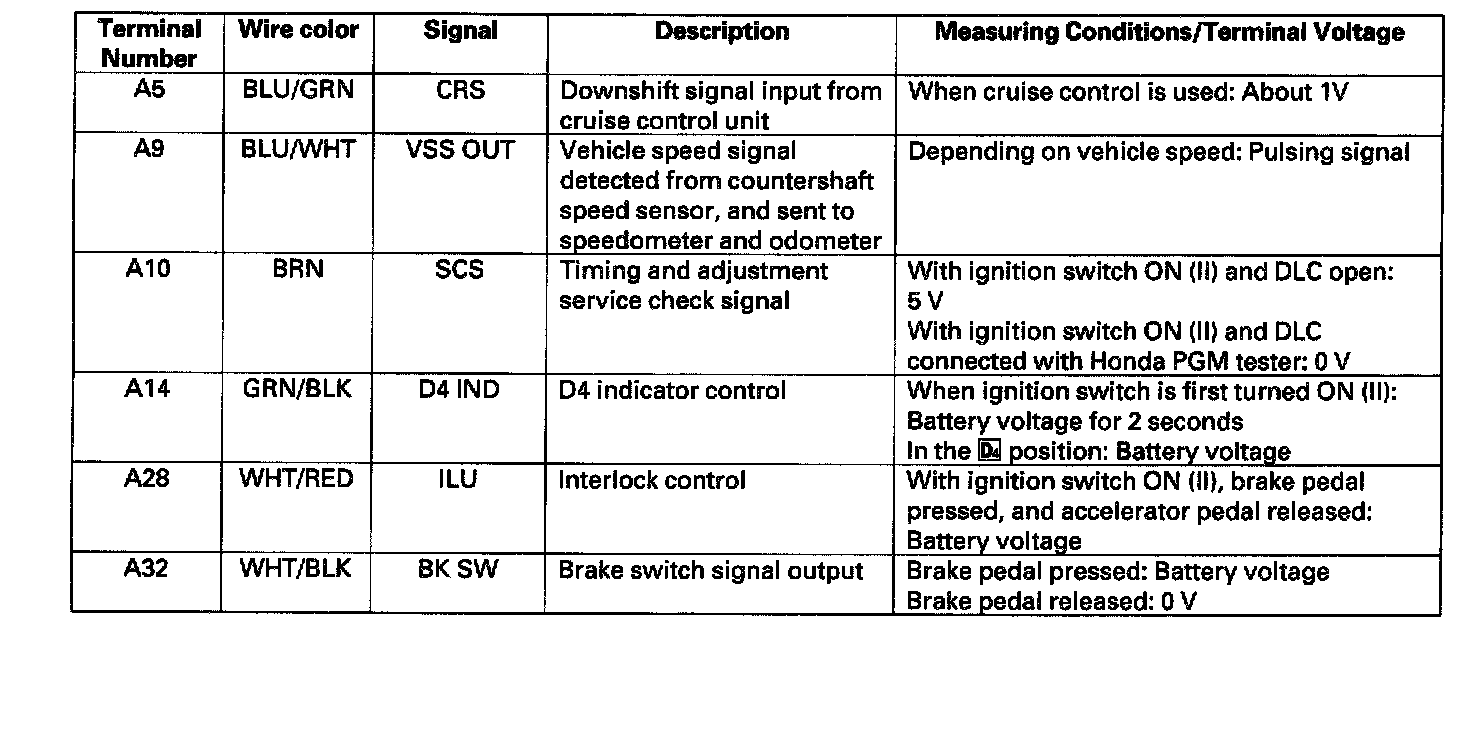

PCM CONNECTOR A (32P)

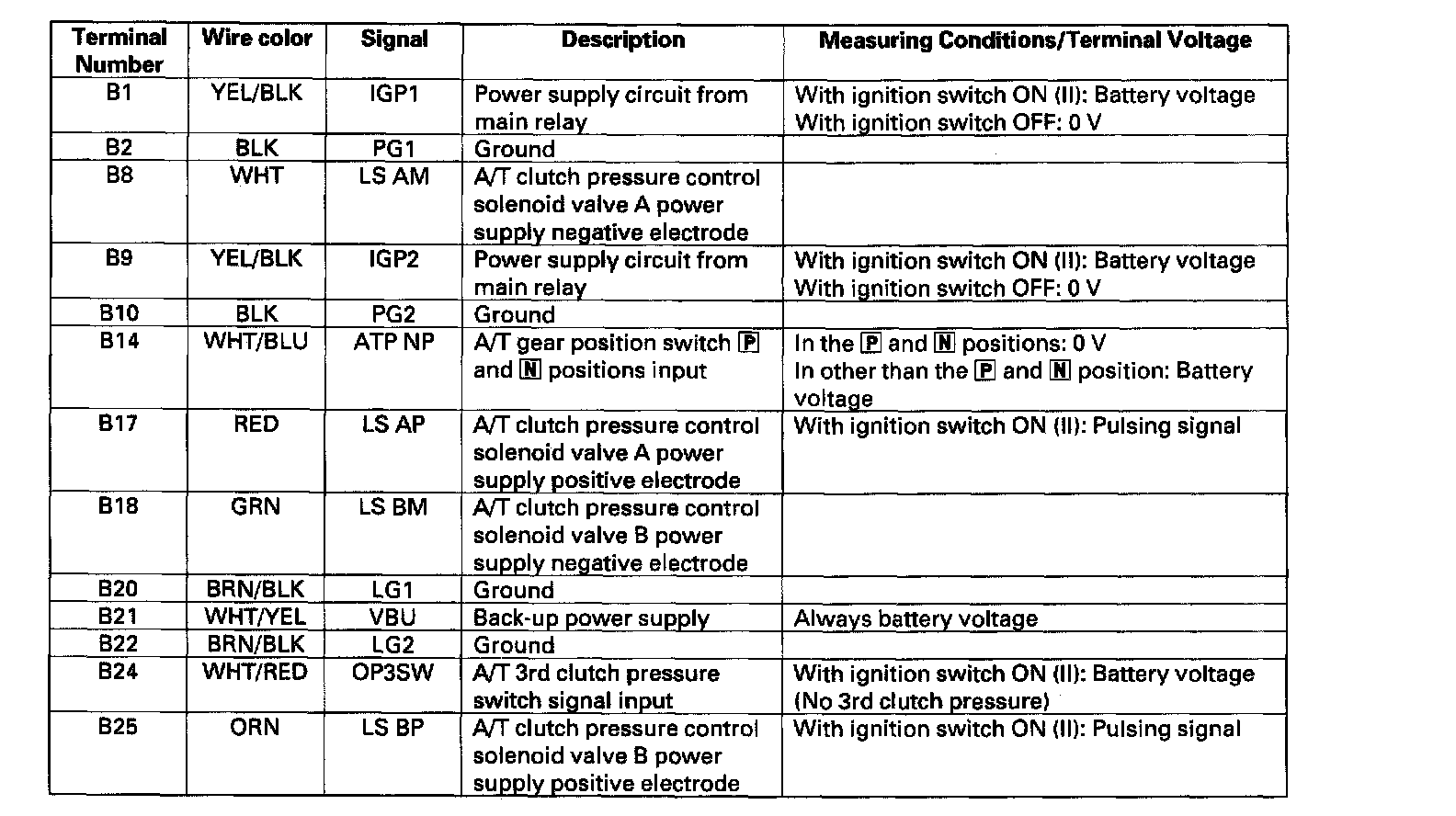

PCM CONNECTOR B (25P)

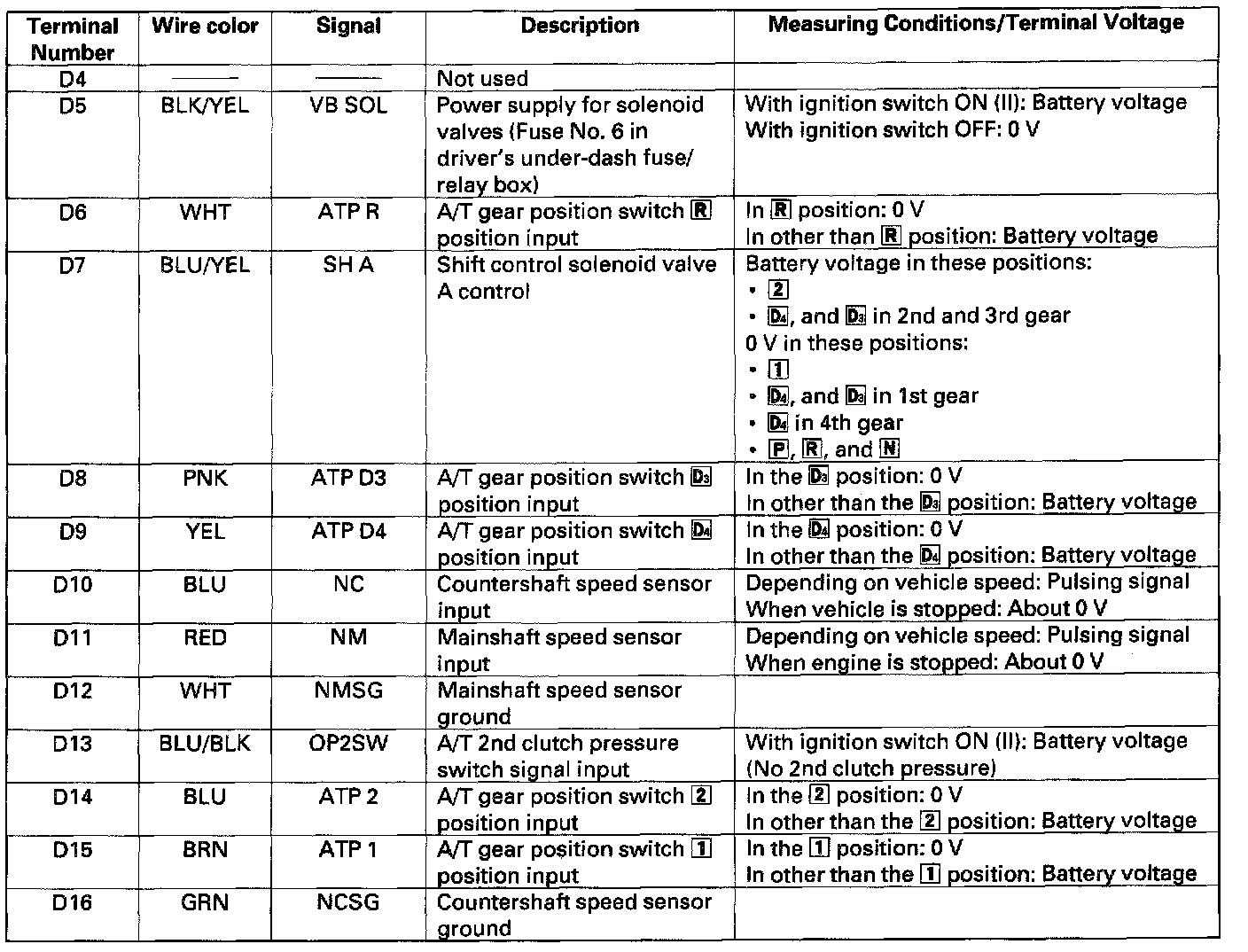

PCM CONNECTOR D (16P)





PCM Inputs and Outputs

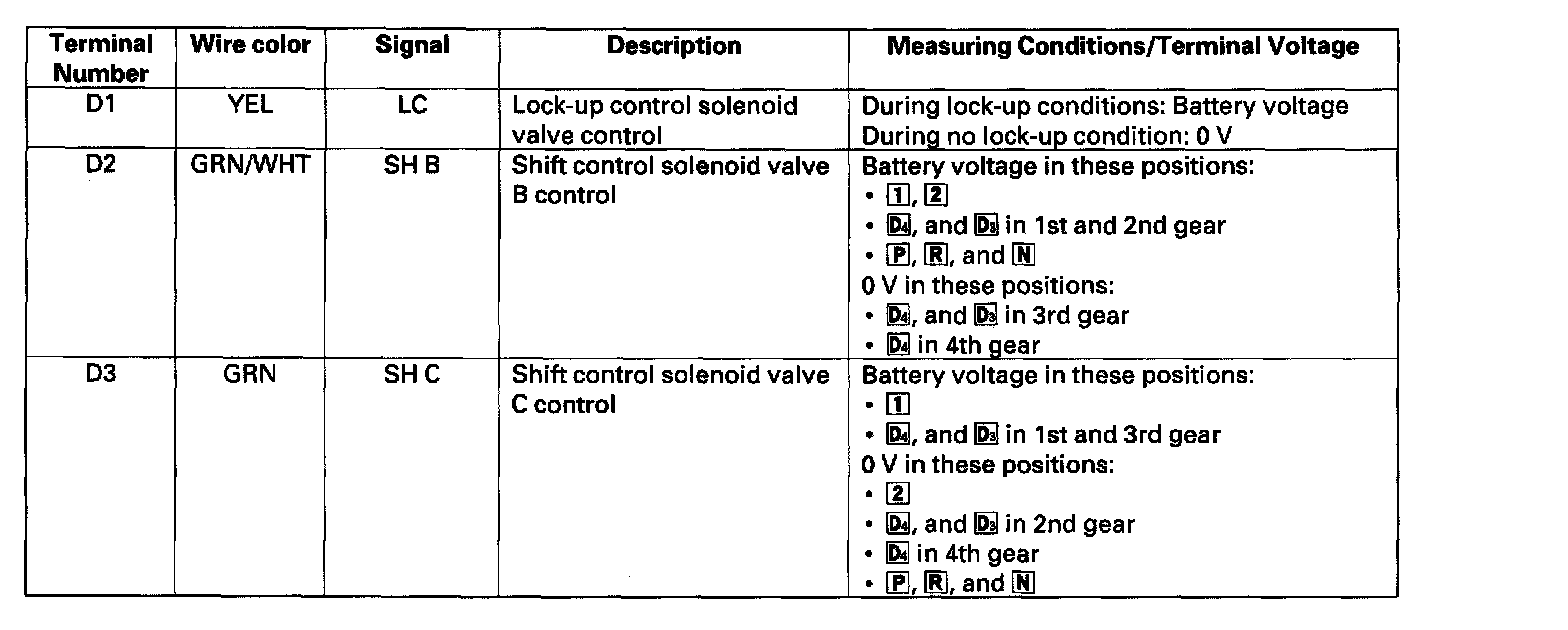

PCM CONNECTOR D (16P)
