Master Switch Replacement

Master Switch Replacement

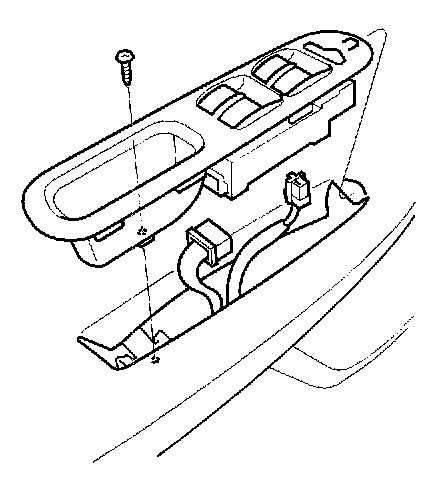

1. Remove the screw and master switch assembly from the door panel.

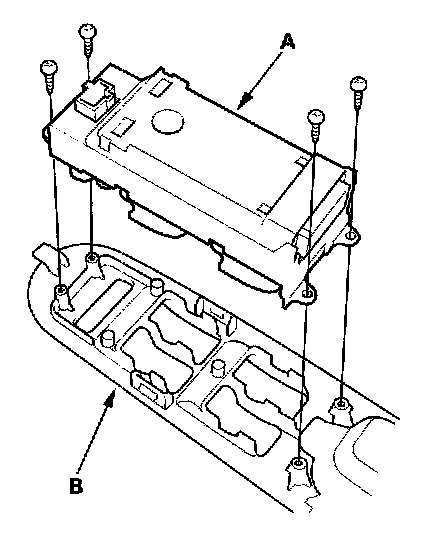

2. Remove the four mounting screws, then remove the master switch (A) from the panel (B).
