Oil Pump Overhaul: Notes

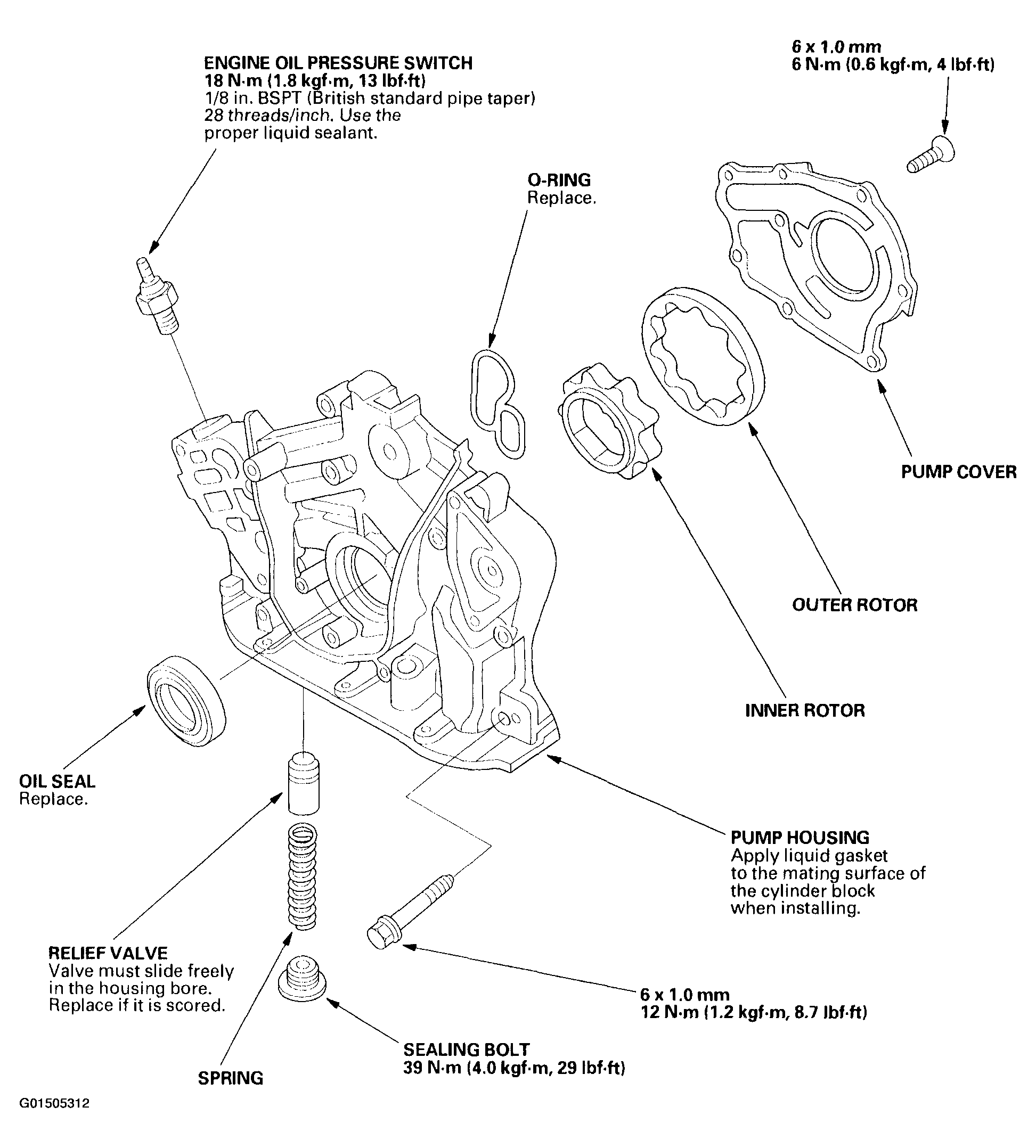

Fig 1: Exploded View Of Oil Pump Overhaul
G01505312Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required:  Oil seal driver 64 070AD-RCA0100
