Wiper/Washer Switch Test: Odyssey

Remove instrument panel lower cover and steering column covers. Disconnect both 8-pin connectors from wiper/washer switch. Remove 2 screws, then remove switch. Check continuity or resistance between specified terminals with switch in indicated positions. See FRONT WIPER/WASHER SWITCH CONTINUITY TEST (ODYSSEY) or REAR WIPER/WASHER SWITCH CONTINUITY TEST (ODYSSEY) table. See Fig 1. If continuity or resistance is not as specified, replace wiper/washer switch.

FRONT WIPER/WASHER SWITCH CONTINUITY TEST (ODYSSEY)

Switch Position

Check Continuity Between Terminals

OFF

A3 & A5

INT

A2 & A7; A3 & A5

A3 & A8

A4 & A8

MIST (On)

A4 & A8

WASHER (On)

A1 & A7

Intermittent Dwell Time ⁽¹⁾

B4 & B8

⁽¹⁾	Controller turned. Resistance varies between 0-30 k/ohms.

REAR WIPER/WASHER SWITCH CONTINUITY TEST (ODYSSEY)

Switch Position	Check Continuity Between Terminals
OFF	B2 & B3
ON	B1 & B3
WASHER (On, Wiper OFF)	B2 & B3; B5 & B7
WASHER (On, Wiper ON)	B1 & B3; B5 & B7

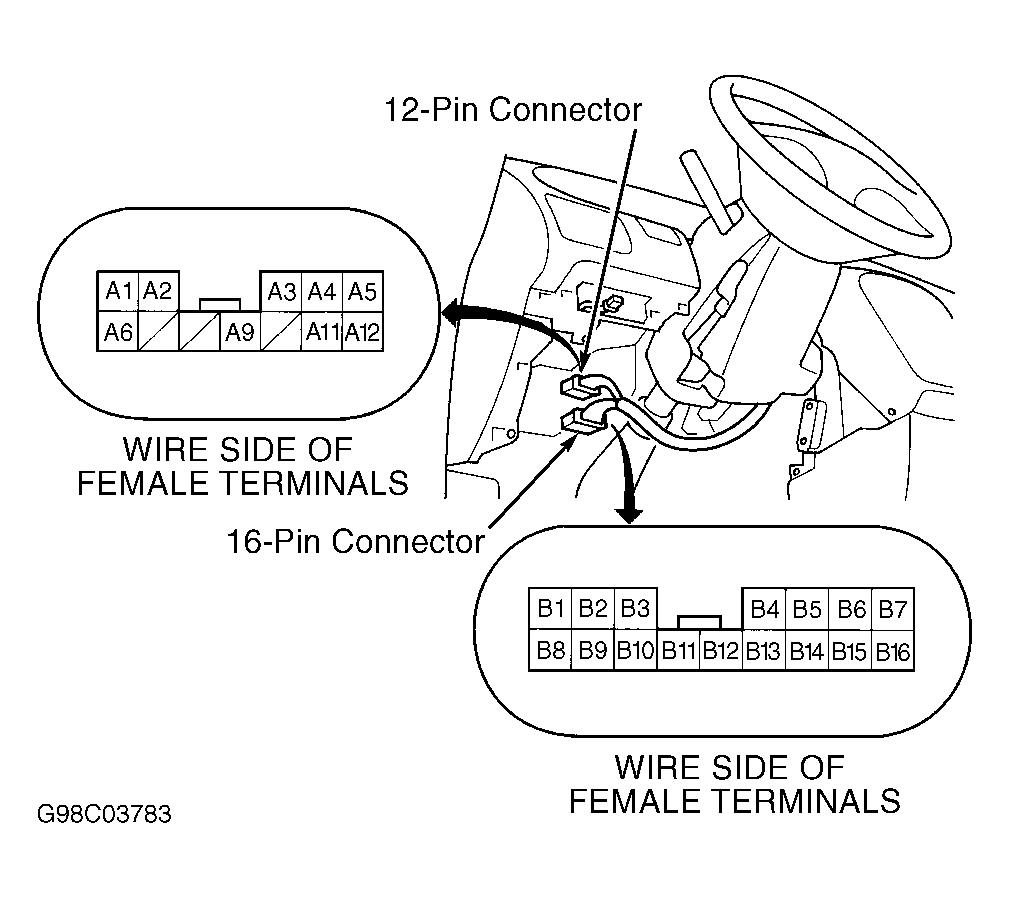

Fig 1: Identifying Wiper/Washer Switch Connector Terminals (Odyssey)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
