Brake Switch

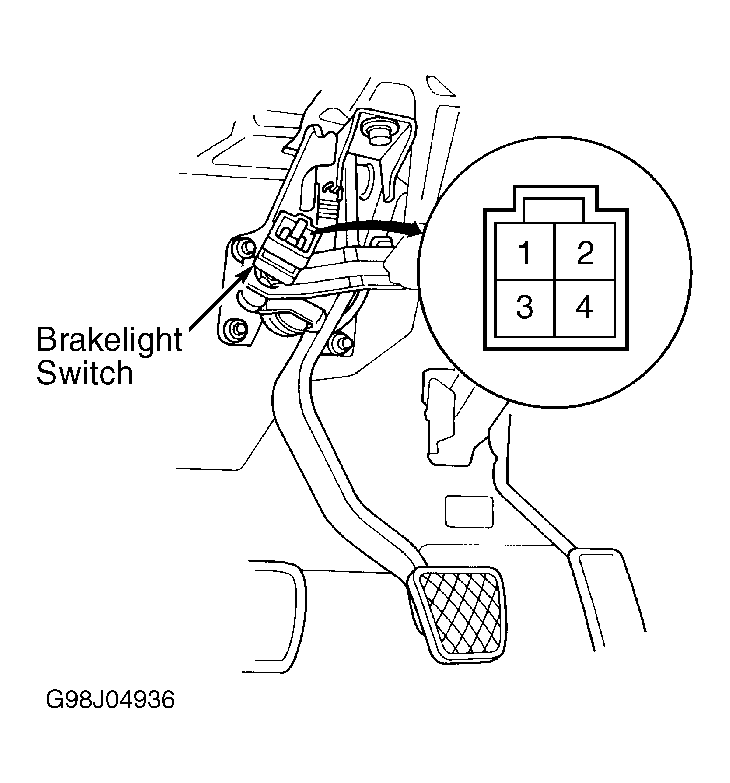

Disconnect 4-pin connector from brake switch. Check for continuity between specified brake switch terminals with brake pedal in appropriate position. See BRAKELIGHT SWITCH CONTINUITY TEST table. See Fig 1 . If continuity is not as specified, replace brake switch.
BRAKELIGHT SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Depressed | 3 & 4 |
| Released | 1 & 2 |
