Ignition Switch Test: S2000

WARNING: This page is about a different car, the 2001 Honda Prelude, 2001 Honda Odyssey, 2001 Honda CR-V, and 2001 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable. Disconnect 7-pin connector from steering column harness. Using an ohmmeter, check continuity between specified connector terminals, with ignition switch in appropriate position. See Fig 1 and Fig 2 . If continuity is not as specified, replace ignition switch.

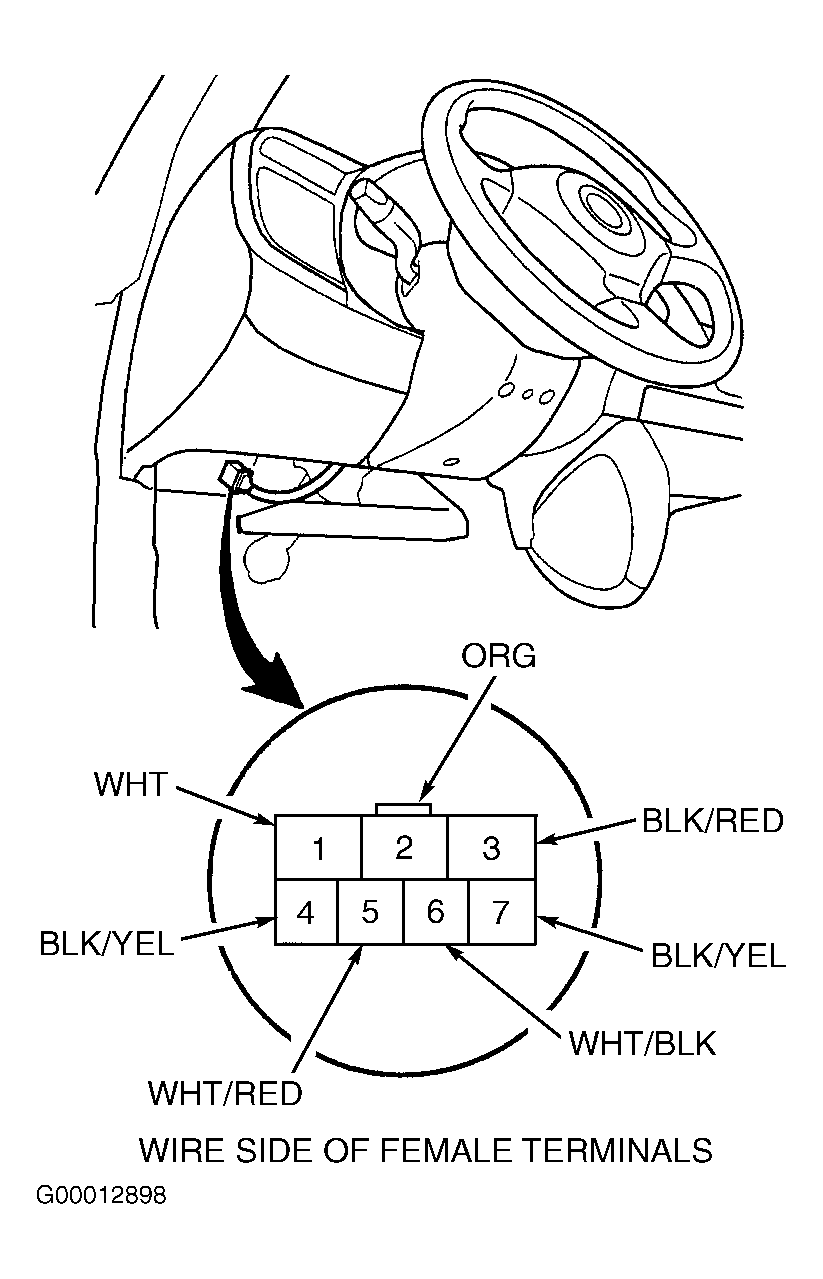

Fig 1: Testing Ignition Switch Continuity (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

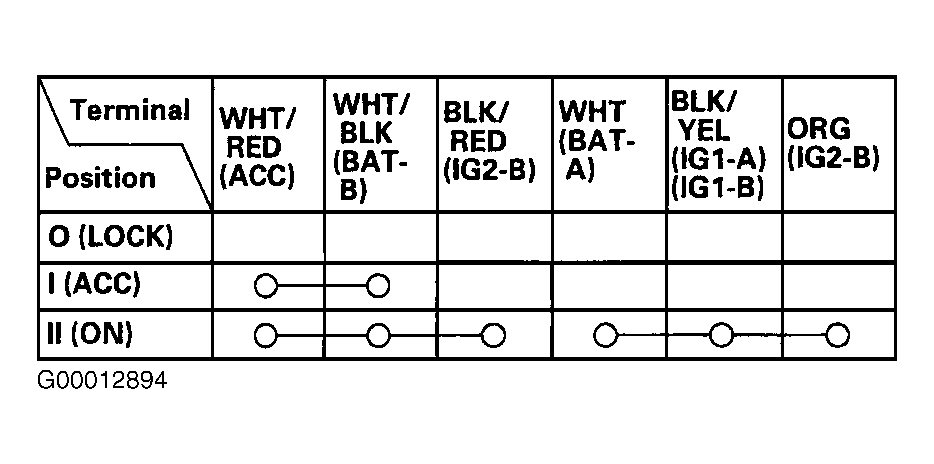

Fig 2: Ignition Switch Continuity Table (S2000)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
