Key-In/Seat Belt Reminder, Lights-On Reminder System

WARNING: This page is about a different car, the 2000 Honda Civic, 1999 Honda Civic, 1998 Honda Civic, 1997 Honda Civic, and 1996 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For connector terminal identification, see Figure . For input test, see Fig 1 .

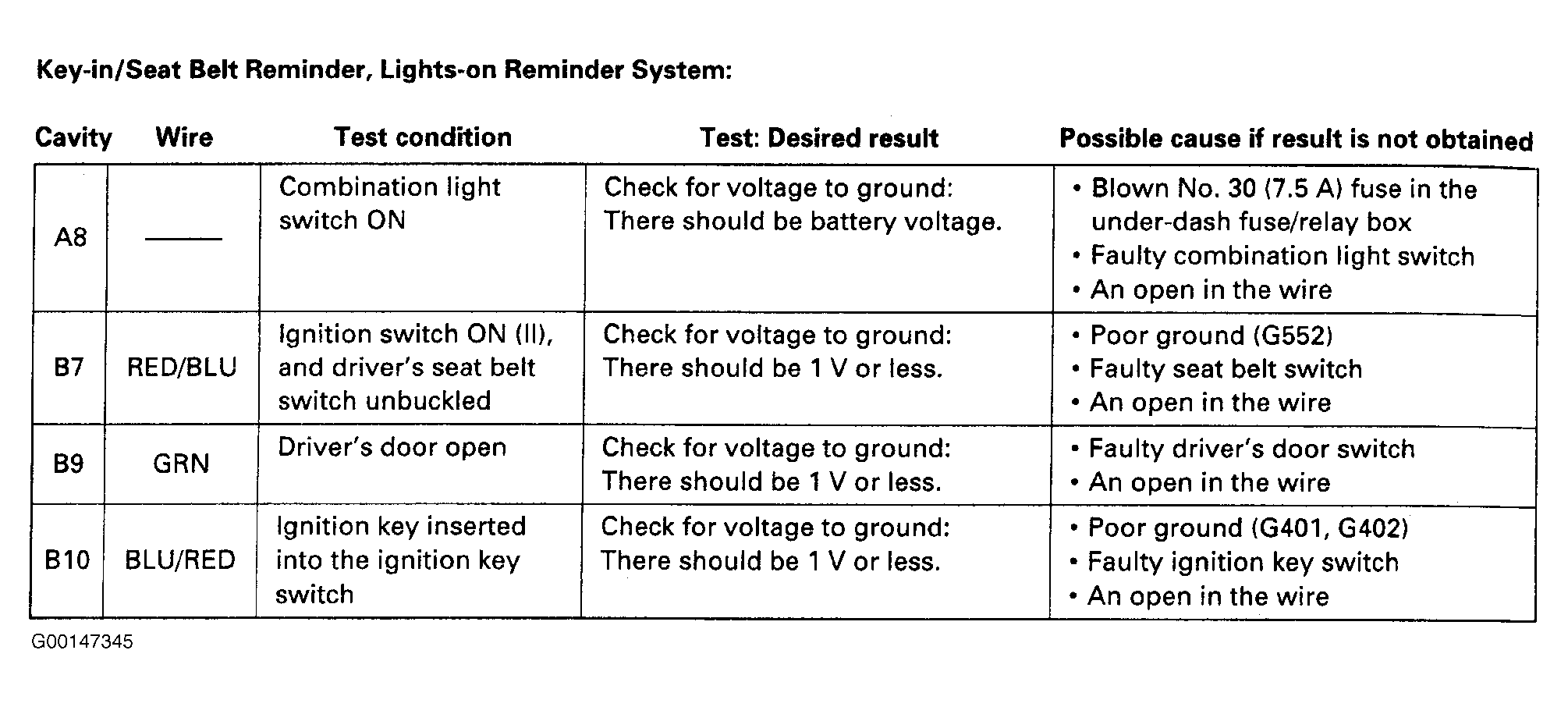

Fig 1: Identifying Key-In/Seat Belt Reminder & Lights-On Reminder System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
