Cruise Control Main Switch/Indicator Bulb Replacement

  1. Carefully pry the cruise control main switch (A) out of the instrument panel, then disconnect the connector from the switch.

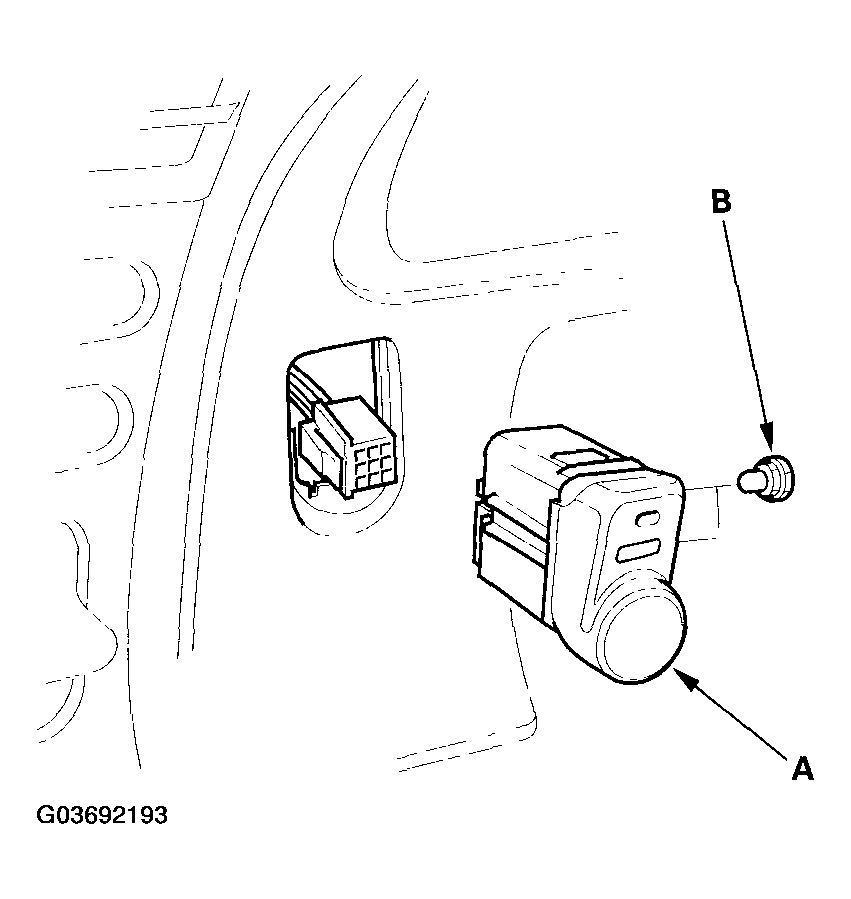

    Fig 1: Removing Cruise Control Main Switch From Instrument Panel
    G03692193Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Replace the indicator bulb (B) or the switch, as needed.
