'06-09 model

  1. Remove the steering column covers (see STEERING COLUMN REMOVAL AND INSTALLATION ).
  2. Disconnect the 7P connector (A) from the immobilizer control unit-receiver (B).

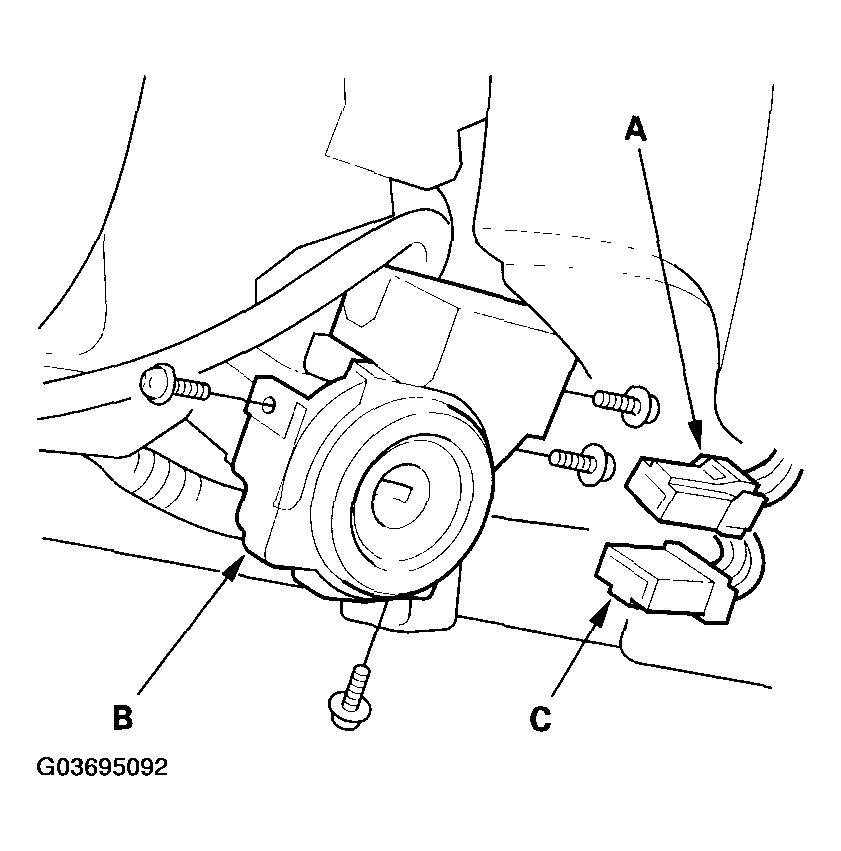

    Fig 1: Disconnecting 7P Connector From Immobilizer Control Unit-Receiver
    G03695092Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 7P connector (C) from the ignition key switch.
  4. Remove the four screws, and remove the immobilizer control unit-receiver from the ignition key cylinder.
  5. Install in the reverse order of removal.
  6. After replacement, make sure the immobilizer indicator blinks correctly.
