Power Mirror Switch Test
- Remove the driver's door panel (see DOOR PANEL REMOVAL/INSTALLATION
).

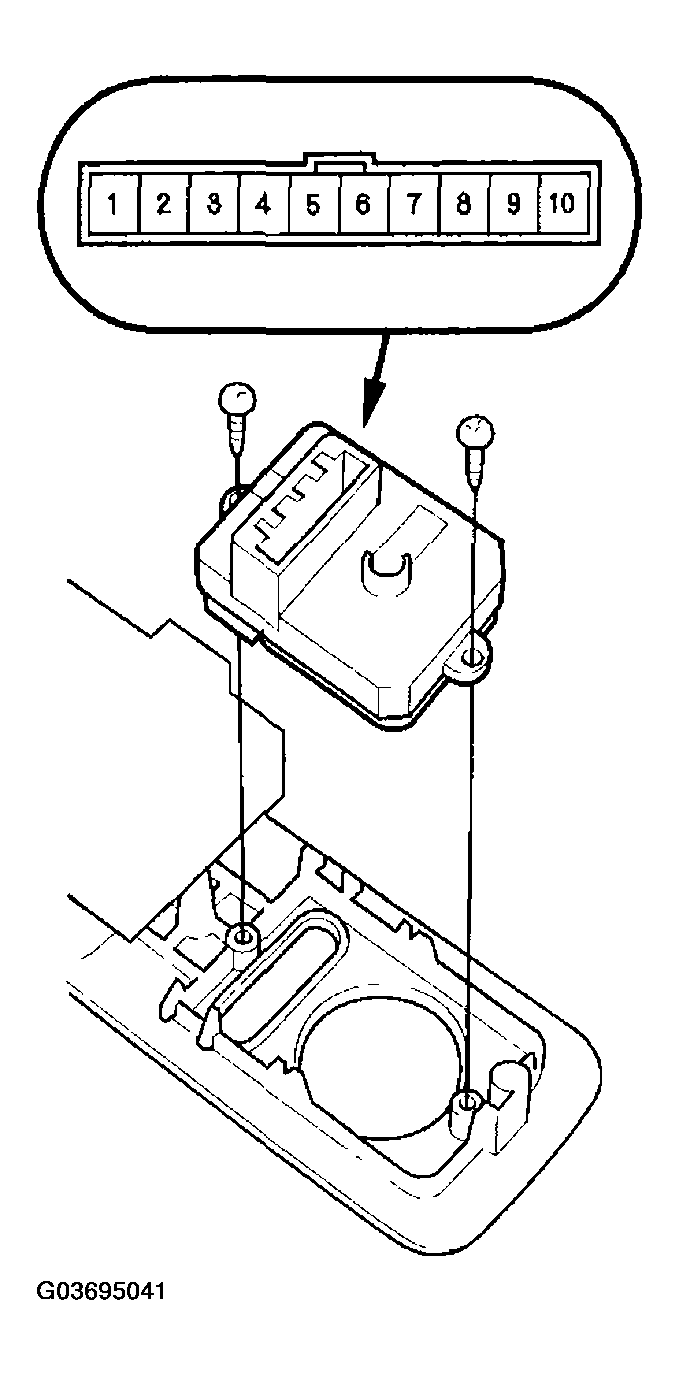

- Disconnect the 10P connector from the power mirror switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

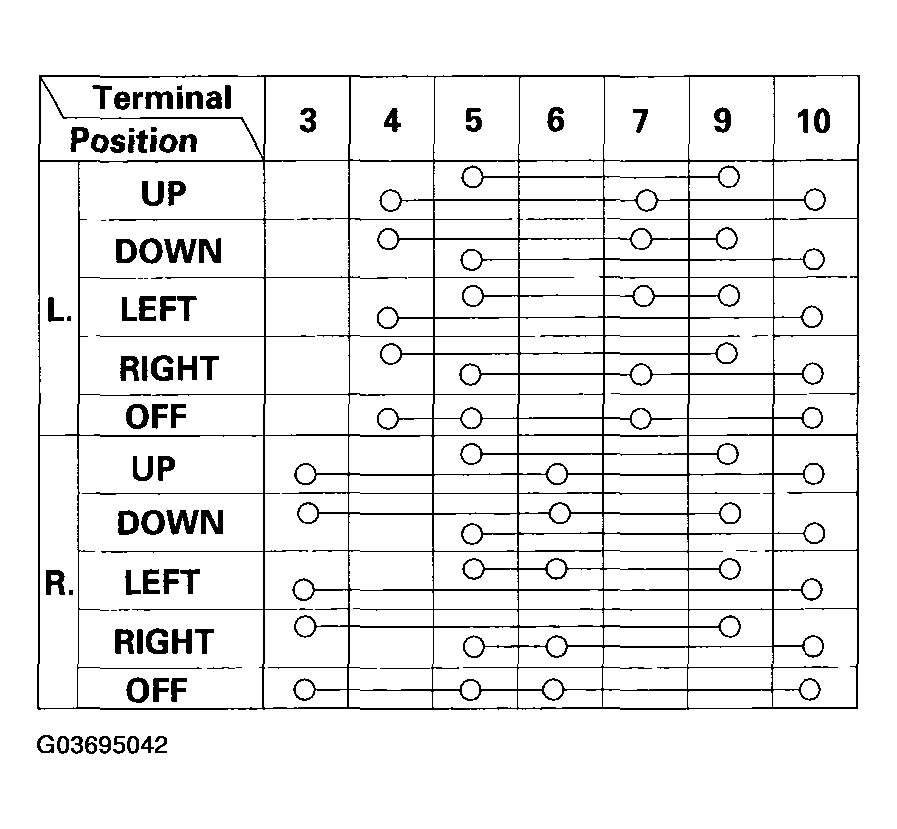

- Check for continuity between the terminals in each switch position according to the table below.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- If the continuity is not as specified, replace the switch.
