Cutting Positions

Slip piano wire through the adhesive at each position as shown below, and pull it back as indicated by the arrows.

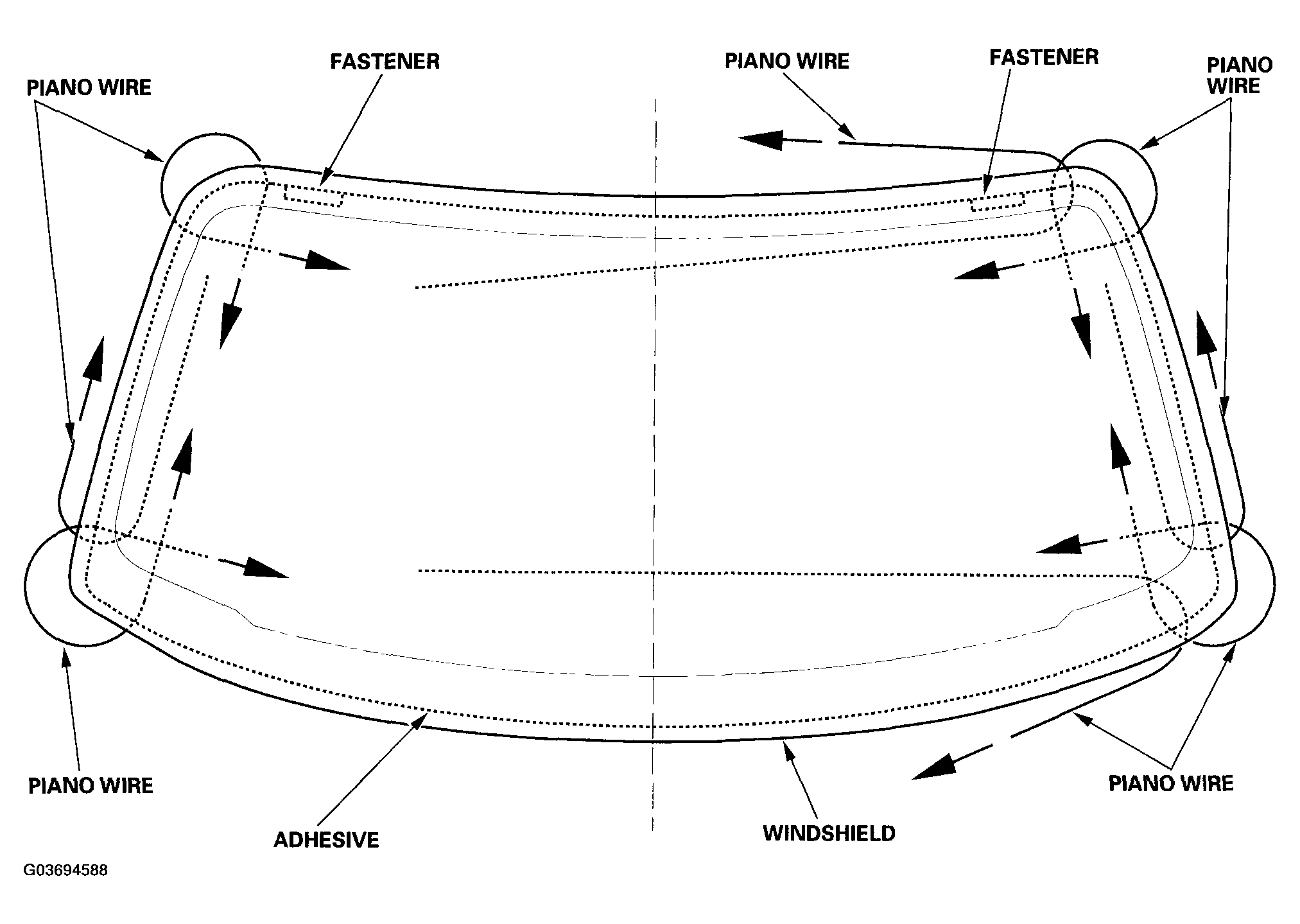

Fig 1: Identifying Cutting Positions - Windshield
G03694588Courtesy of AMERICAN HONDA MOTOR CO., INC.
