Circuit Diagram

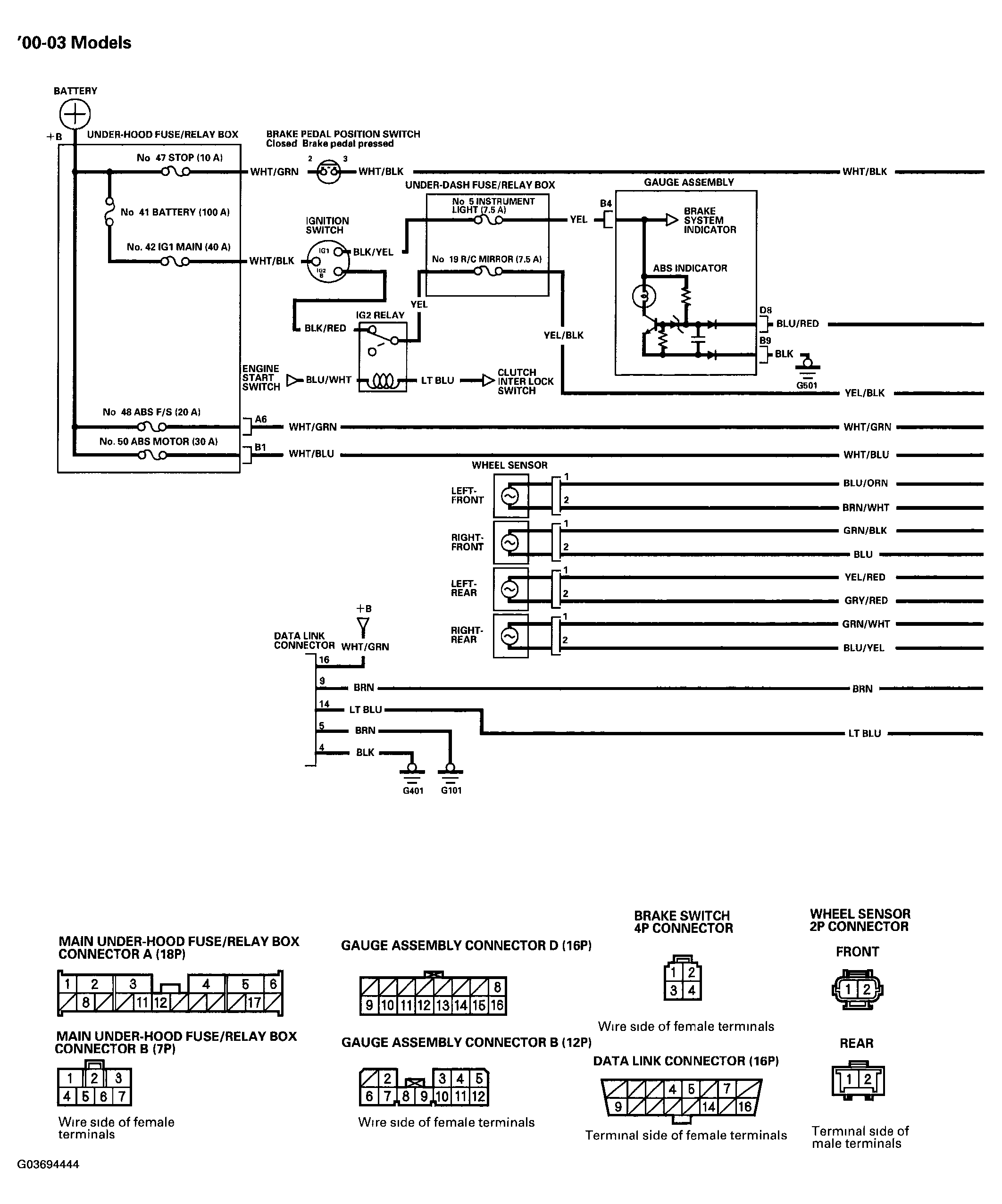

Fig 1: ABS Circuit Diagram (00-03 Models) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

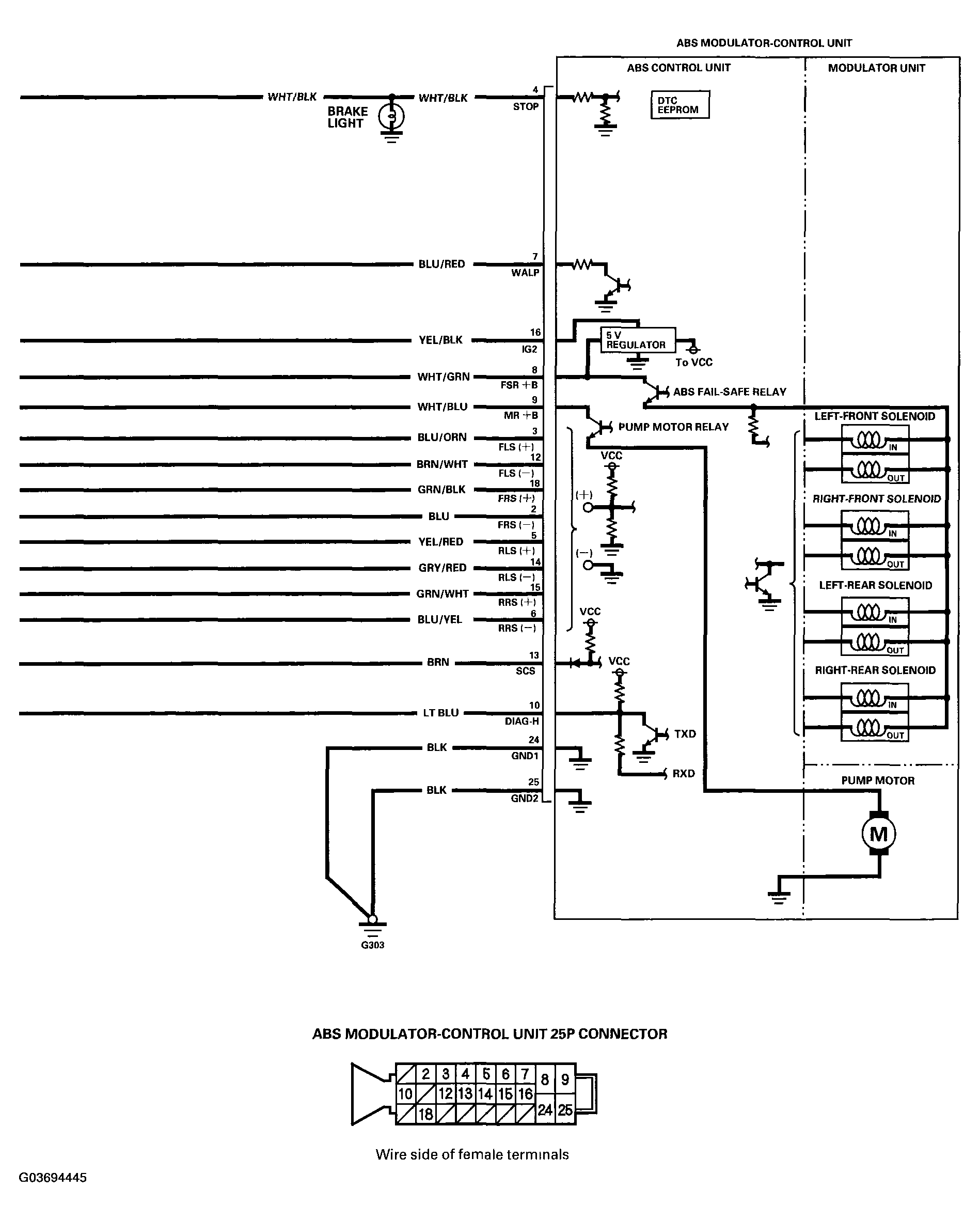

Fig 2: ABS Circuit Diagram (00-03 Models) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

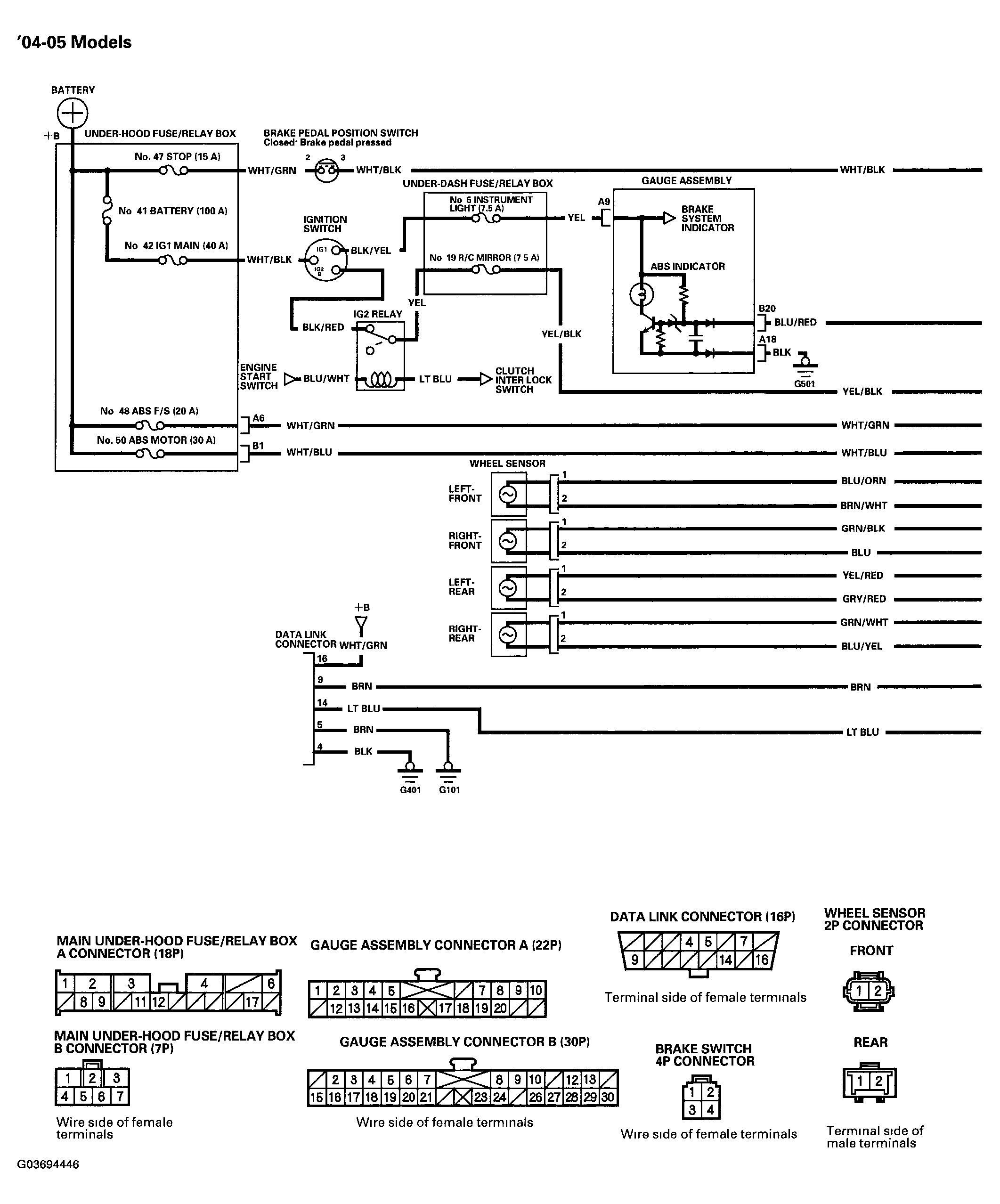

Fig 3: ABS Circuit Diagram (04-05 Models) (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: ABS Circuit Diagram (04-05 Models) (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
