Tensioner Pulley Replacement
- Remove the auto-tensioner (see
DRIVE BELT AUTO-TENSIONER REPLACEMENT ).

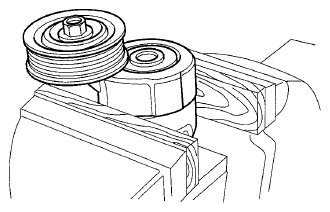

- Secure the auto-tensioner in a vise with soft jaws. To prevent damage to the tensioner, always use soft jaws or equivalent materials between the tensioner and the vise.
Courtesy of AMERICAN HONDA MOTOR CO., INC.

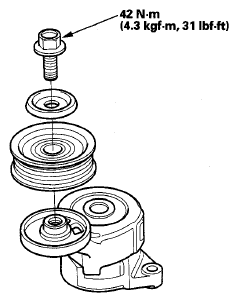

- Remove the pulley bolt (left-hand threads), and remove the tensioner pulley.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the new tensioner pulley in the reverse order of removal.
