Oil Pressure Switch Replacement

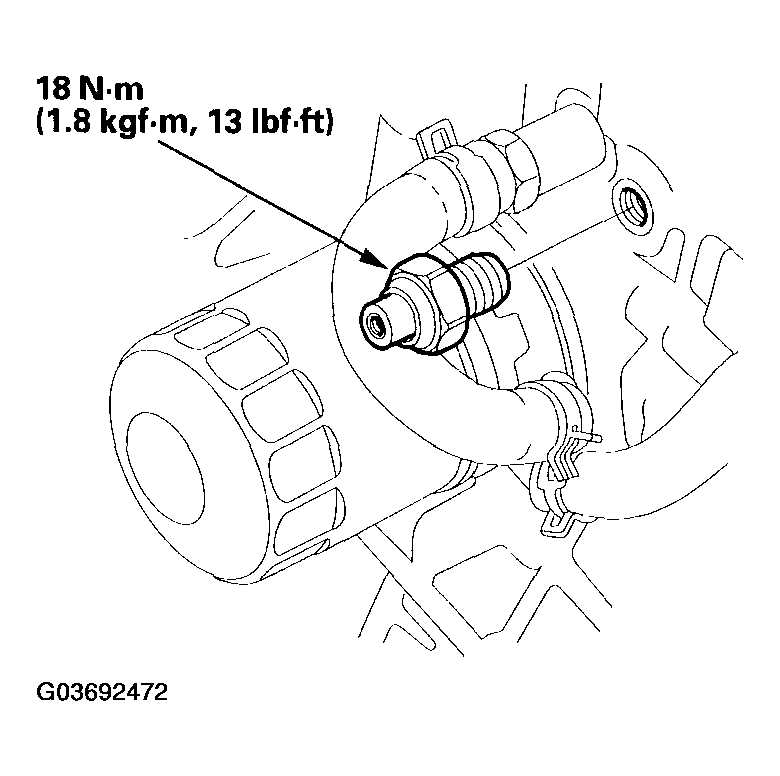

- Remove the wire from the oil pressure switch, then remove the oil pressure switch.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove any old liquid gasket from the switch and switch mounting hole.
- Apply a very small amount of liquid gasket to the oil pressure switch threads, then install the oil pressure switch.
NOTE:
Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch.
