Air Pump Electrical Current Sensor Removal/Installation
- Pull away the left inner fender as necessary (see
INNER FENDER REPLACEMENT
).

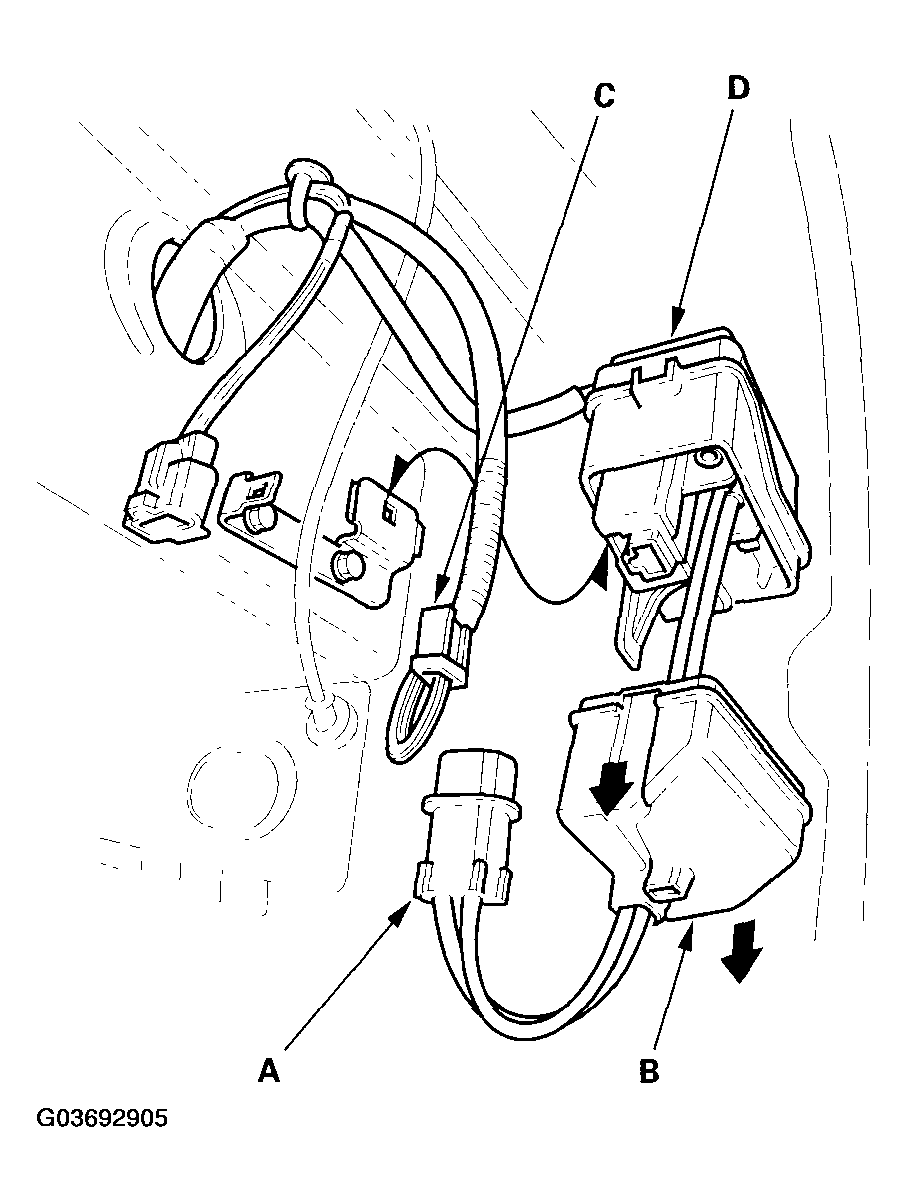

- Disconnect the air pump electrical current sensor 2P connector (A), and remove the lower cover (B), then disconnect the air pump electrical current sensor 3P connector (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Remove the air pump electrical current sensor (D).
- Install the sensor in the reverse order of removal.
