Heater Control Panel Removal/Installation

WARNING: This page is about a different car, the 2009 Honda S2000 and 2008 Honda S2000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel together with the heater control panel (see INSTRUMENT PANEL REMOVAL/INSTALLATION ).
  2. Remove the self-tapping screws and the heater control panel (A) from the instrument panel (B).

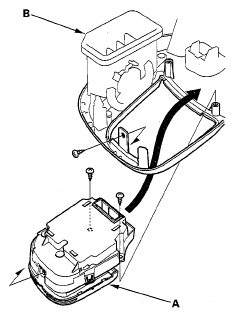

    Fig 1: Identifying Heater Control Panel And Instrument Panel Remove/Install Components
    G05115926Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the control panel in the reverse order of removal. After installation, operate the control panel controls to see whether it works properly.
  4. Run the self-diagnostic function to confirm that there are no problems in the system. GENERAL TROUBLESHOOTING INFORMATION
