Anchor Bolt Installation

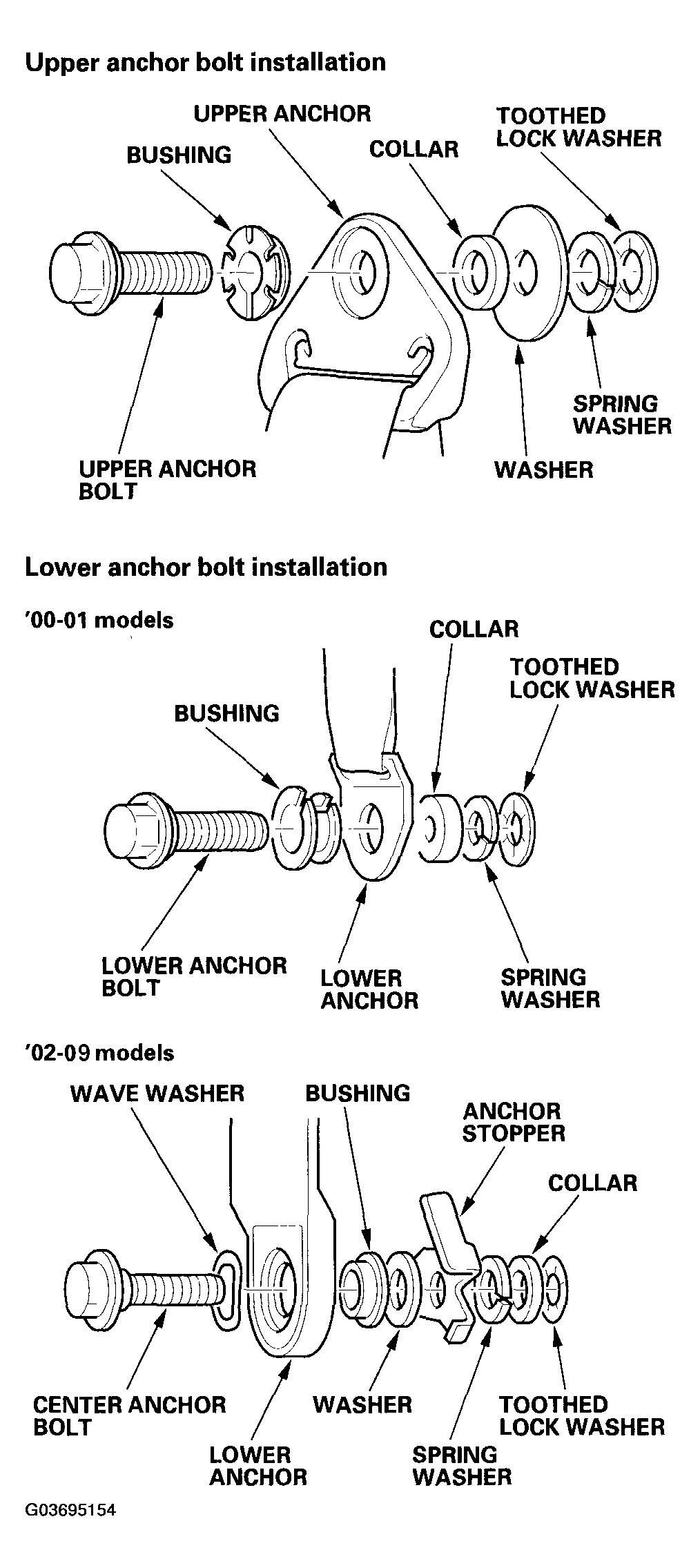

Fig 1: Identifying Anchor Bolt Installation Procedure (1 Of 2)
G03695154Courtesy of AMERICAN HONDA MOTOR CO., INC.

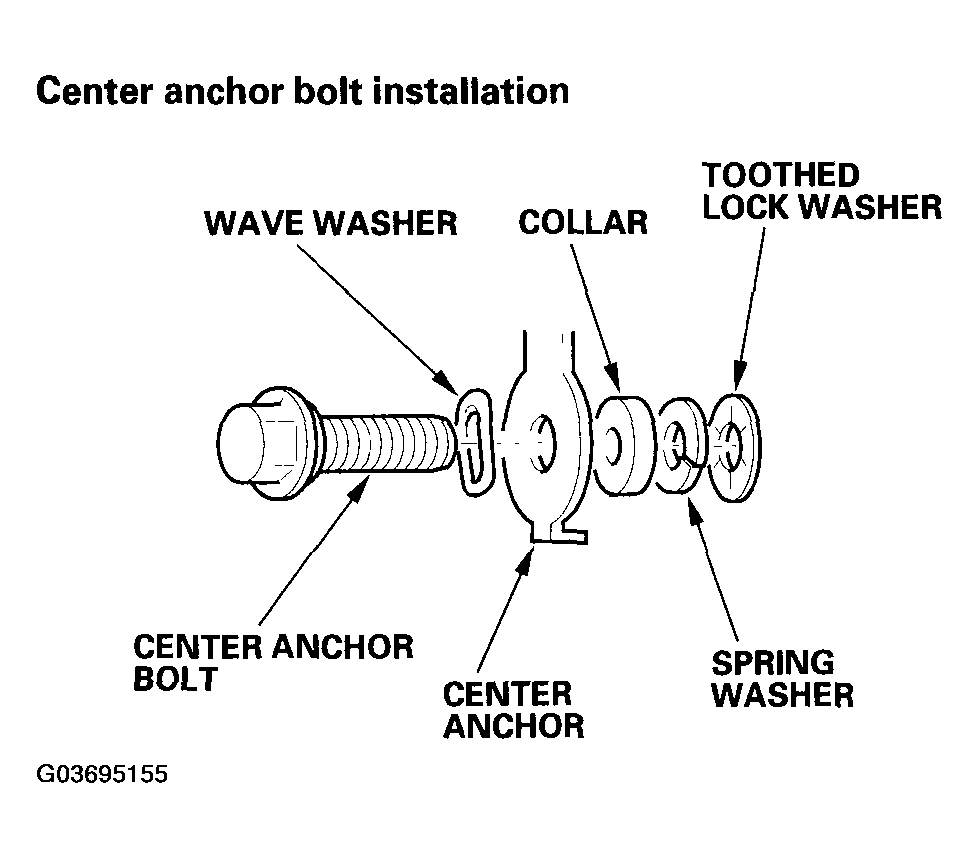

Fig 2: Identifying Anchor Bolt Installation Procedure (2 Of 2)
G03695155Courtesy of AMERICAN HONDA MOTOR CO., INC.
