Circuit Diagram (Power, Ground, Communication Lines)

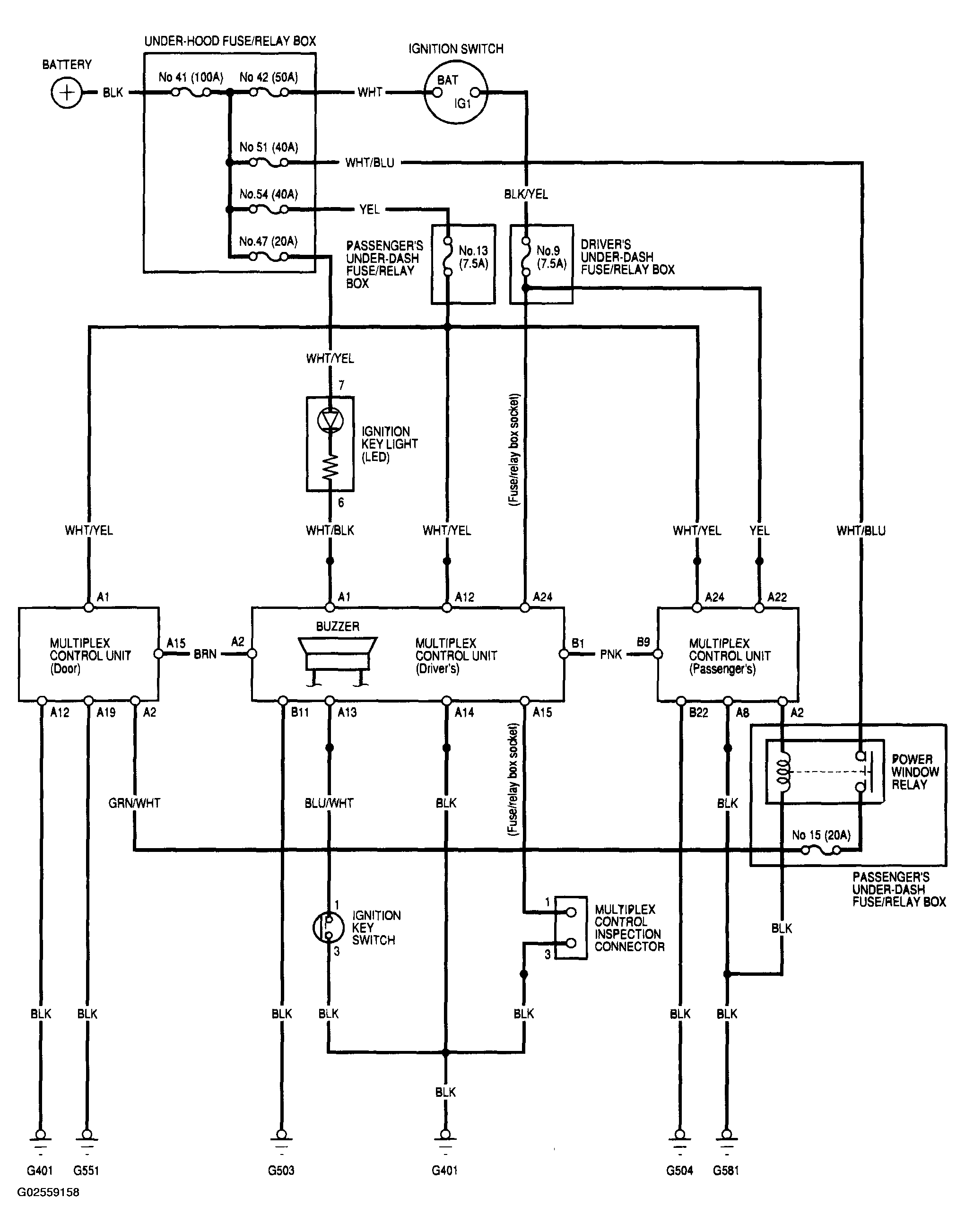

Fig 1: Multiplex Control System Circuit Diagram
G02559158Courtesy of AMERICAN HONDA MOTOR CO., INC.
