Revised Component Terms

Beginning with '01 models, the following component terms have been changed to conform with the standards in SAE document J1930. If you find a terms or abbreviation in a '01 manual that is unfamiliar to you, check this list. If a term is not listed below, it did not change.

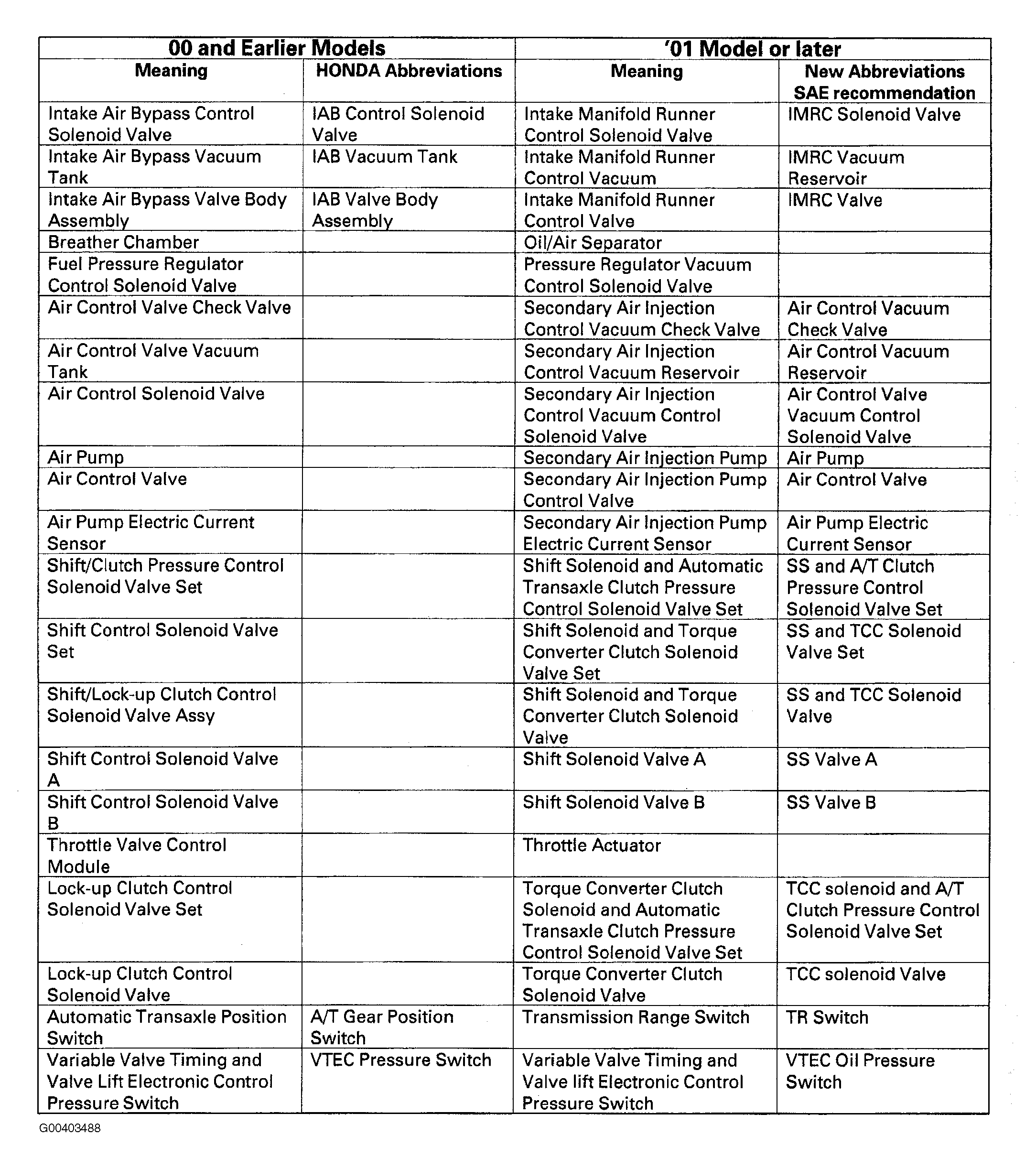

Fig 1: Revised Component Terms (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

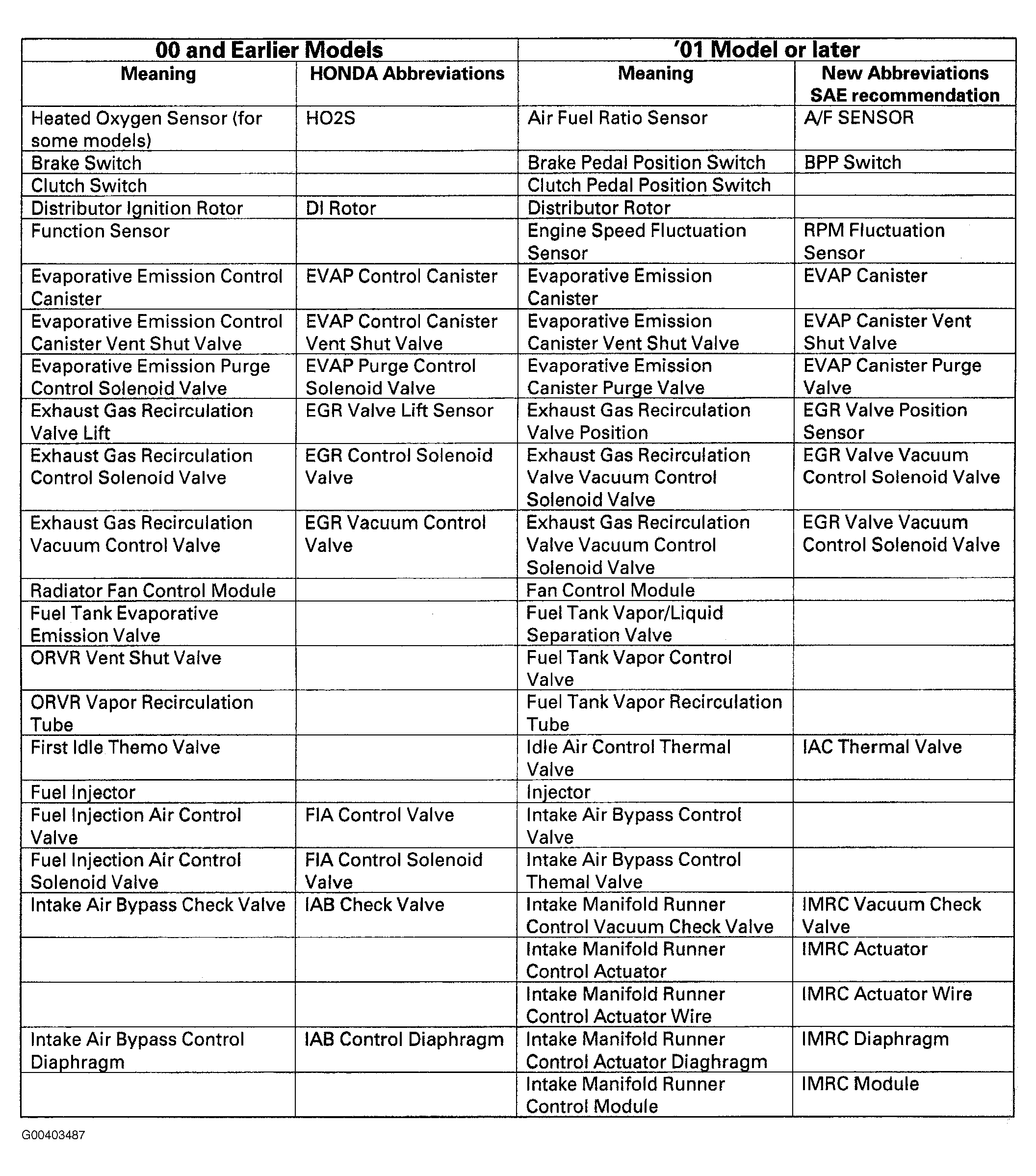

Fig 2: Revised Component Terms (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
