PGM-FI Main Relay Test

PGM-FI Main Relay Test

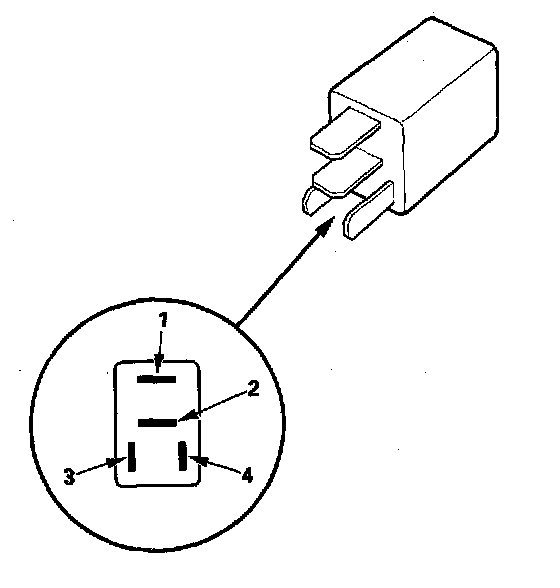

Check for continuity between the terminals.

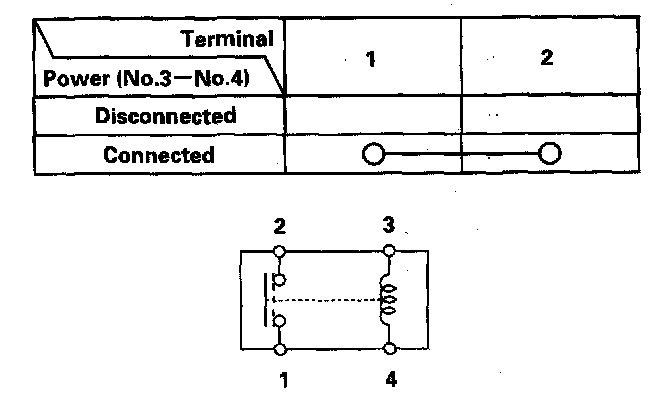

- There should be continuity between the No.1 and No.2 terminals when power and ground are connected to the No.3 and No.4 terminals.







- There should be no continuity between the No.1 and No.2 terminals when power is disconnected.
