Removal & Installation

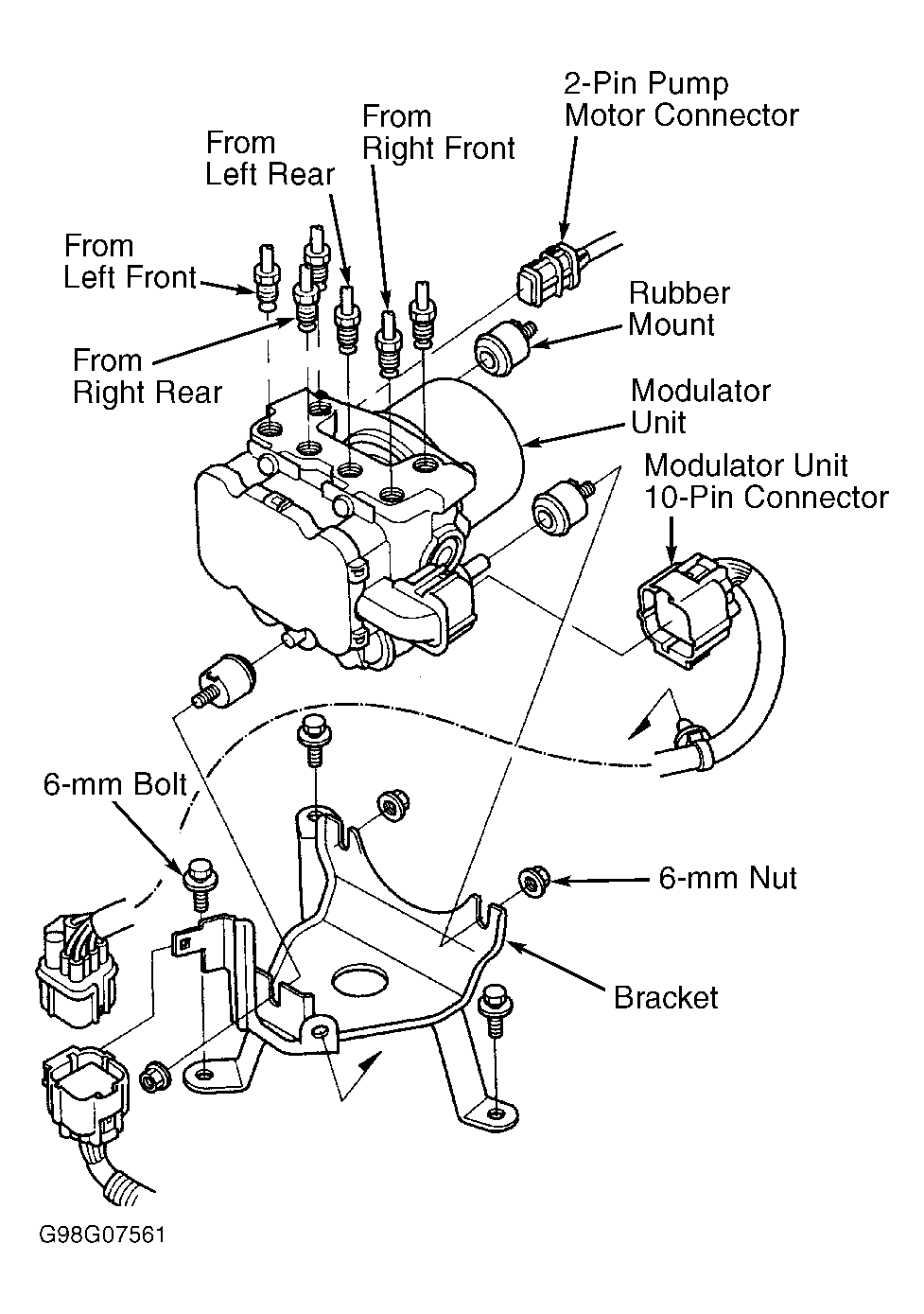

Disconnect modulator unit and pump motor connectors. See Fig 1 . Disconnect brakelines and remove modulator unit. Plug and cover brakeline ends to prevent brake fluid contamination. To install, reverse removal procedure. Bleed brake system. See BLEEDING BRAKE SYSTEM . Start engine and ensure ABS indicator light goes off. Test drive vehicle and ensure ABS indicator light does not come on.
