Fan Control Module Input Test (3.0L)

NOTE: Some wires have been assigned a superscript to distinguish them from other wires of the same color. For example, Black/Yellow¹ wire is not the same as Black/Yellow² wire.

For testing procedures, see Fig 1.

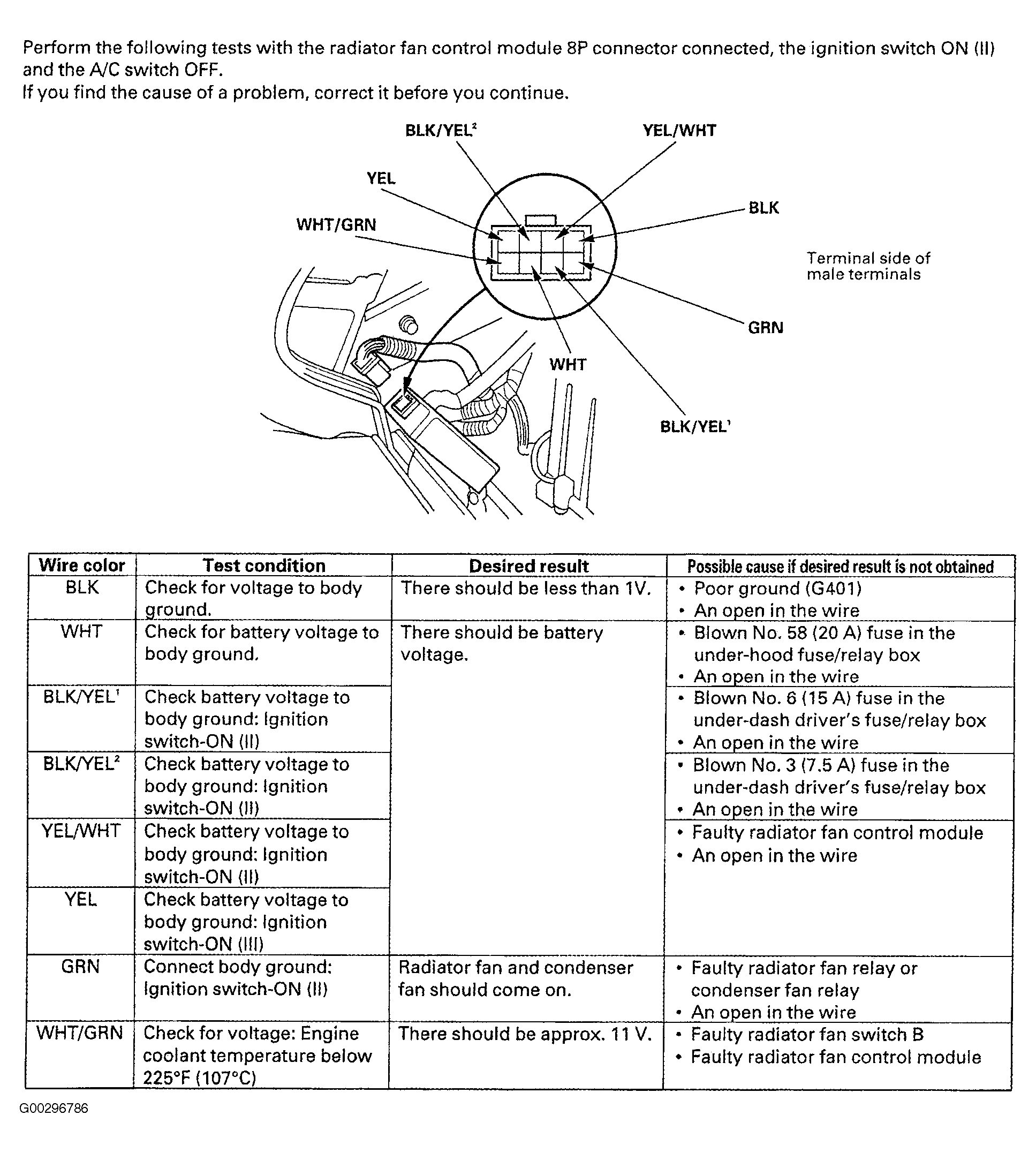

Fig 1: Testing Fan Control Module Input

Courtesy of AMERICAN HONDA MOTOR CO., INC.
