ECM/PCM Inputs & Outputs at Connector D (16P)

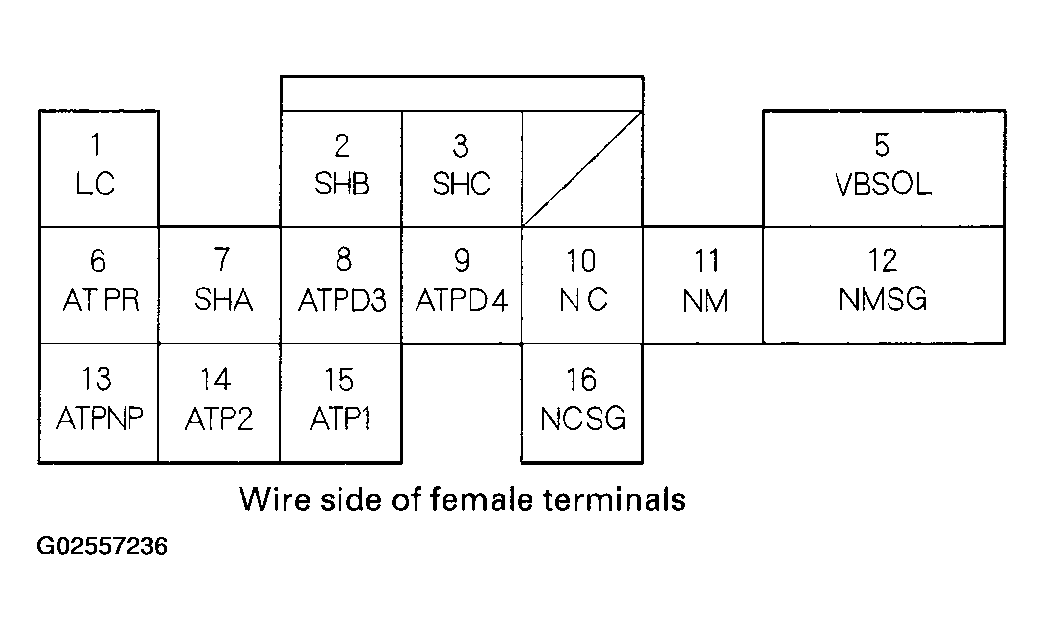

Fig 1: Identifying Connector D (16P) Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE:
Standard battery voltage is 12 V.

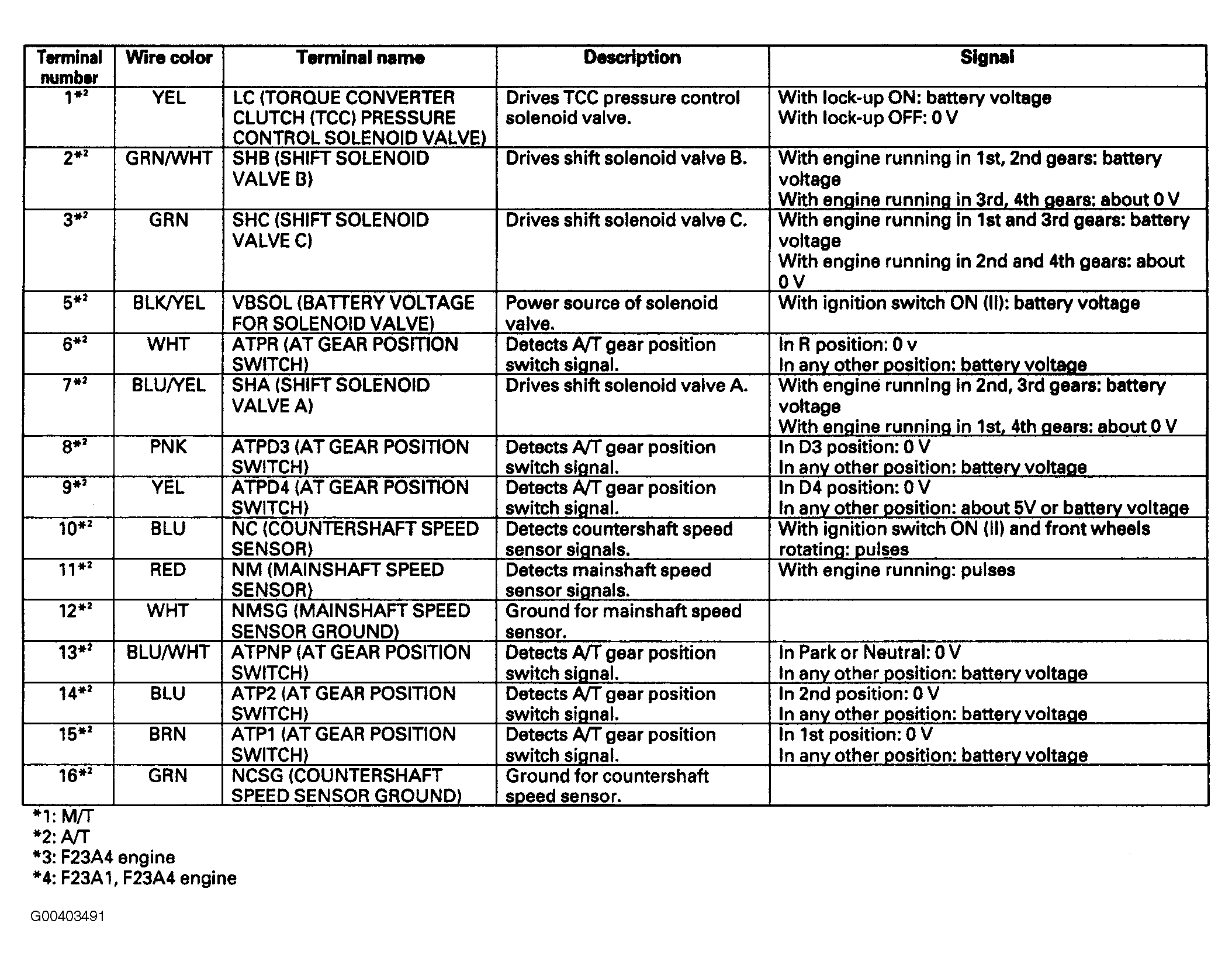

Fig 2: ECM/PCM Connector D (16P) Inputs & Outputs Pin Voltage Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
