Exploded View: Notes

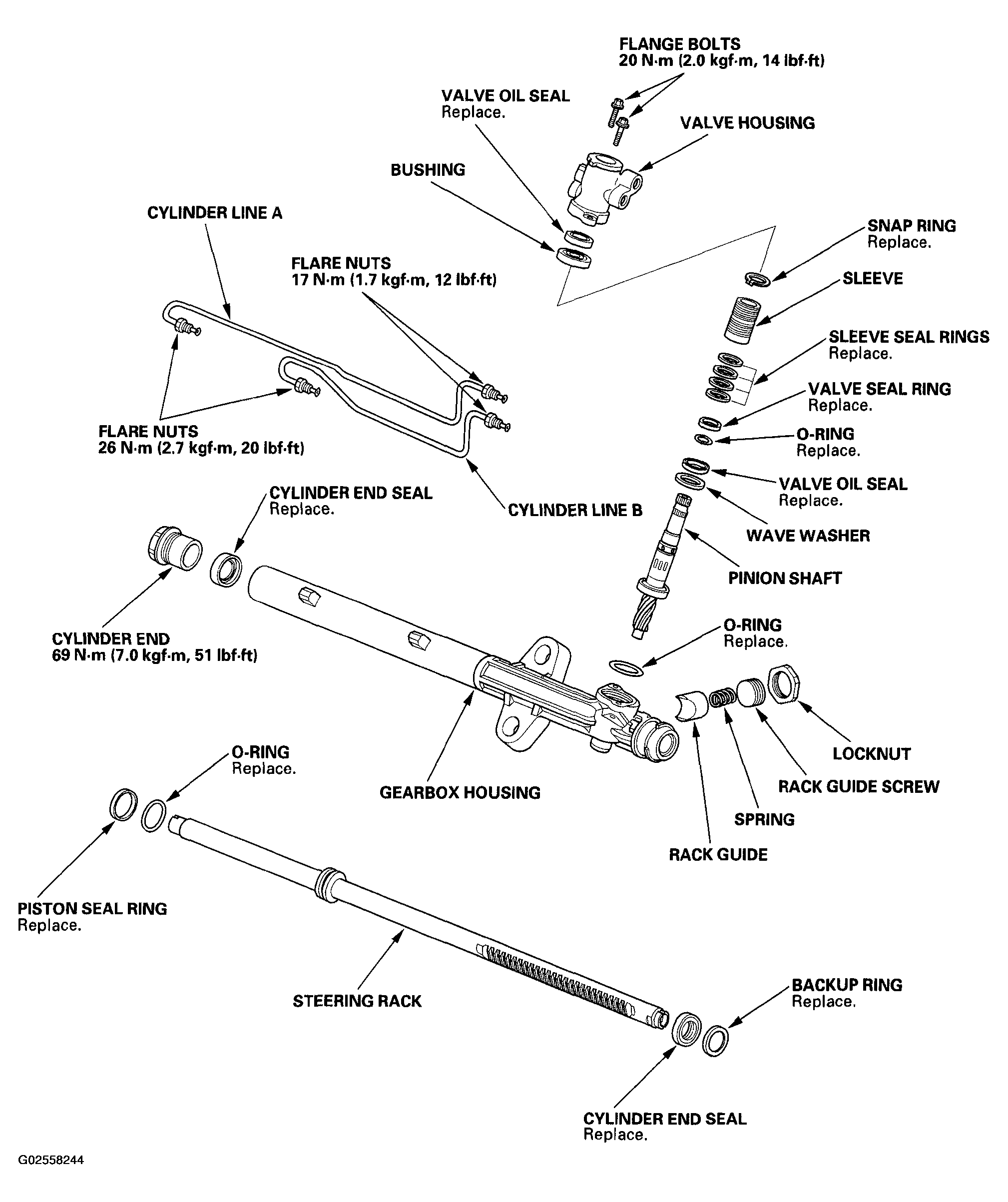

Fig 1: Exploded View Of Steering Gearbox

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Cylinder end seal remover attachment, 07NAD-SR3020A
• Pilot collar, 07GAF-PH70100
• Valve seal ring sizing tool, 07NAG-SR3090A
• Ball joint boot clip guide, 07974-SA50800
• Piston seal ring sizing tool, 07974-SA5020A or 07974-SA50200
• Attachment, 32 x 35 mm, 07746-0010100
• Driver, 07749-0010000
• Piston seal ring guide, 07HAG-SF10100
• Piston seal ring sizing tool, 07HAG-SF1020A or 07HAG-SF10200
• Pincers, Oetiker 1098, or equivalent, commercially available
