Master Switch Replacement

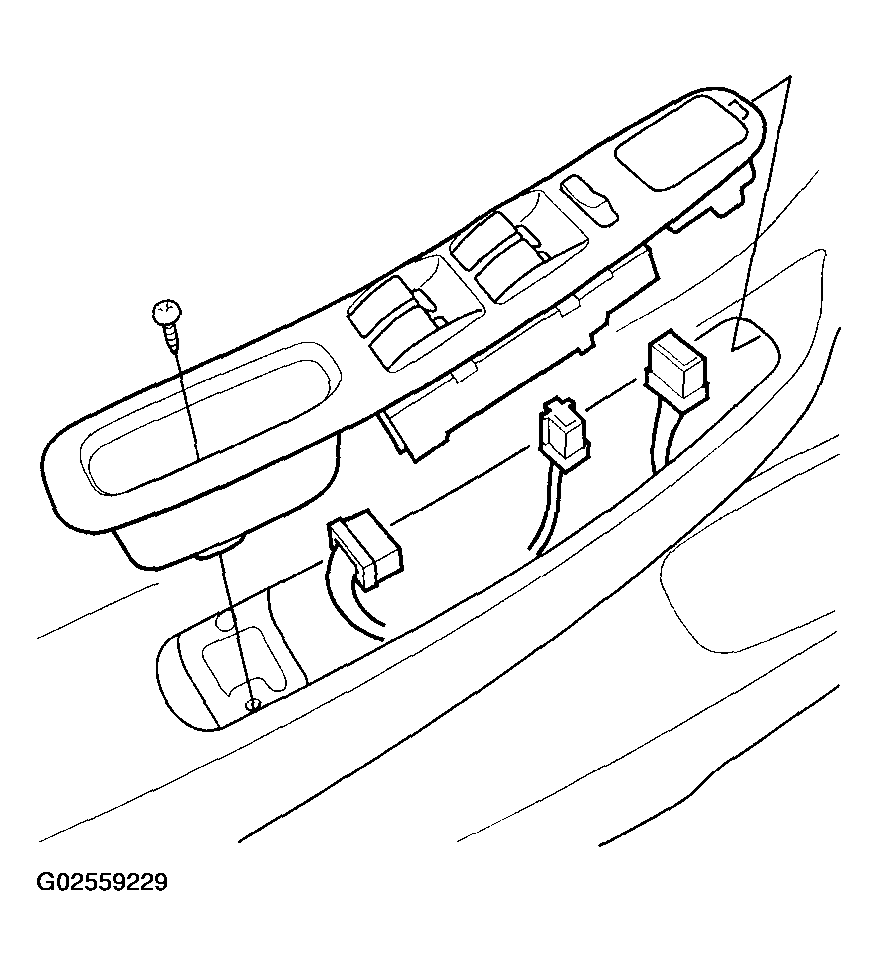

Remove the screw and master switch assembly from the door panel.

Fig 1: Removing Screw & Master Switch Assembly From Door Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

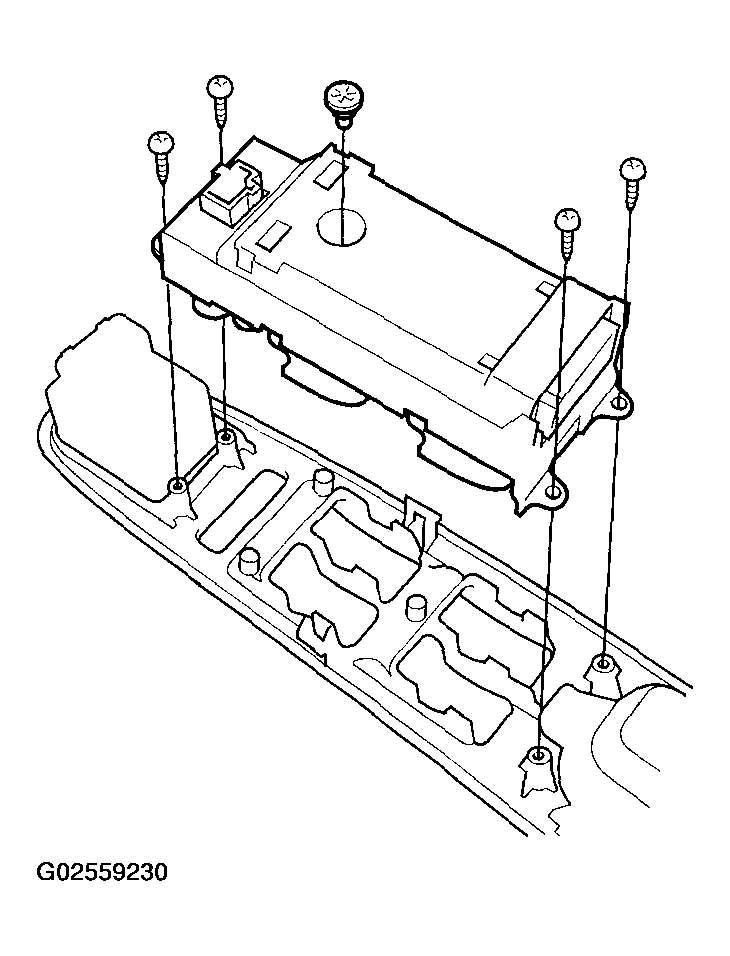

Remove the four mounting screws, then remove the master switch from the panel.

Fig 2: Removing Four Mounting Screws & Removing Master Switch From Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
