MICU - Rear Junction Box Input Test
WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the right rear side trim (see TRIM REMOVAL/INSTALLATION - PILLAR AREAS ).

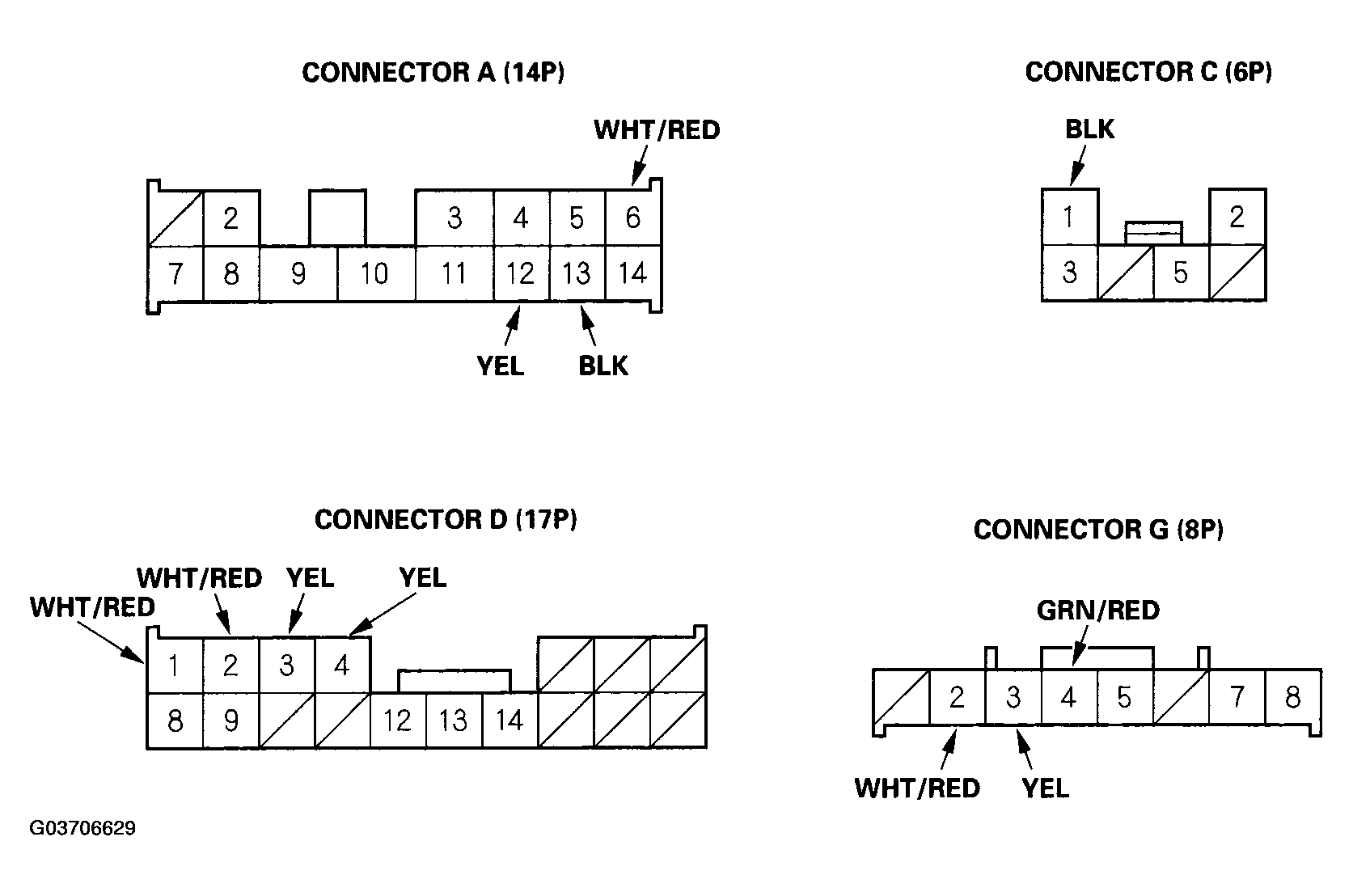

- Disconnect the MICU-rear junction box connectors A, C, D and G.NOTE: All connectors are wire side of female terminals.
- Inspect the connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
- Reconnect the connectors to the MICU-rear junction box and make these input tests at the appropriate connectors on the MICU-rear junction box.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the MICU-rear junction box.
POSSIBLE CAUSECavity Wire Test condition Test: Desired result Possible cause if result is not obtained A13 C1 BLK Under all conditions Check for voltage to ground: There should be less than 1 V. - Poor ground (G652)
- An open in the wire
A6 WHT/RED Under all conditions Check for voltage to ground: There should be battery voltage. - Blown No. 7 (7.5 A) fuse in the driver's under-dash fuse/relay box
- An open in the wire
A12 YEL Ignition switch ON (II) Check for voltage to ground: There should be battery voltage. - Blown No. 21 (7.5 A) fuse in the driver's under-dash fuse/relay box
- An open in the wire
D1
.
D2
.
G2WHT/RED Under all conditions Check for voltage to ground: There should be battery voltage. Faulty MICU-rear junction box D3
.
D4
.
G3YEL Ignition switch ON (II) Check for voltage to ground: There should be battery voltage. Faulty MICU-rear junction box
