Test D: Brake System Indicator Does Not Go Off

See Fig 1 for trouble shooting flow chart.

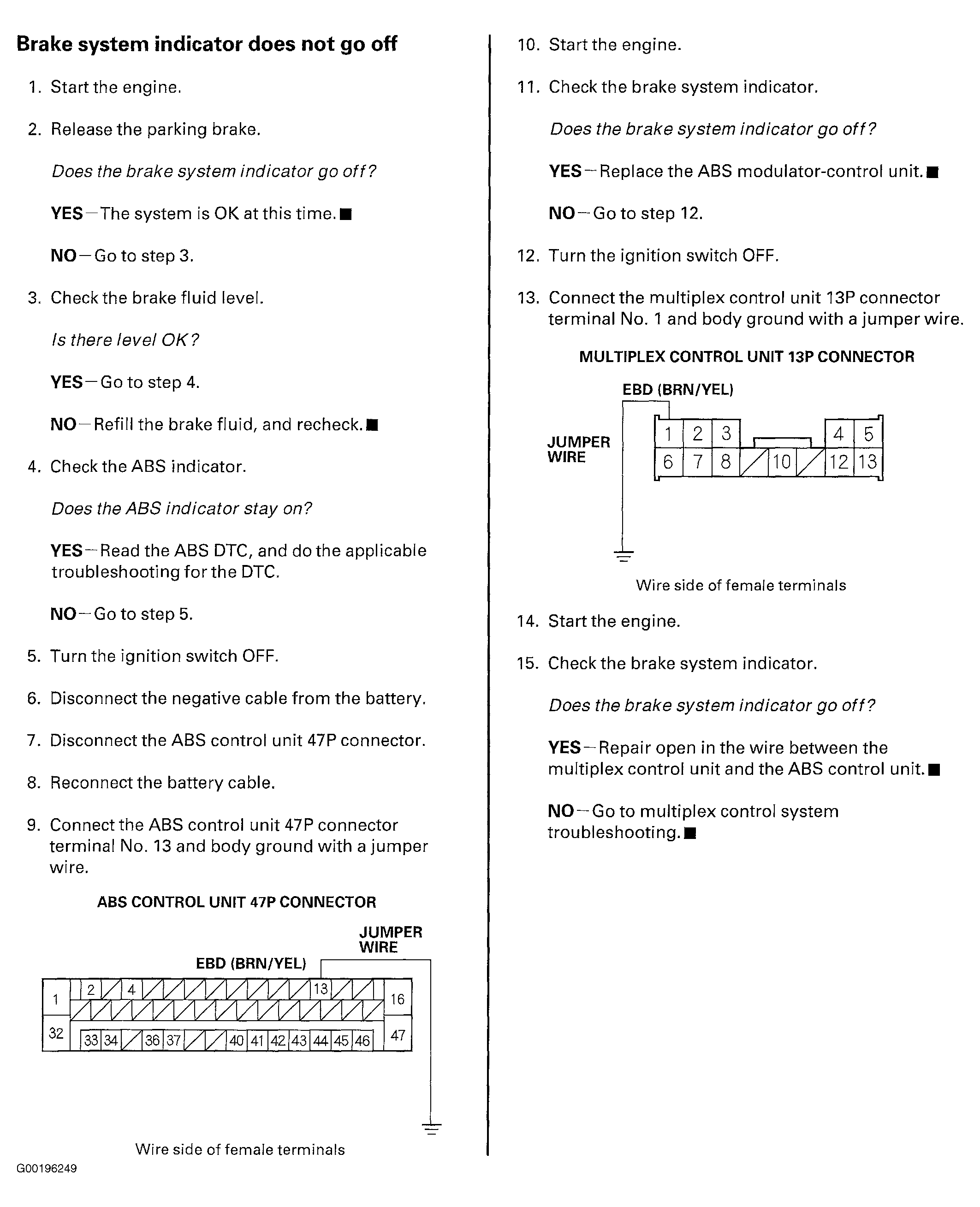

Fig 1: Trouble Shooting Brake System Indicator Does Not Go Off
G00196249Courtesy of AMERICAN HONDA MOTOR CO., INC.
