IAT Sensor Replacement
- Disconnect the IAT sensor 2P connector.

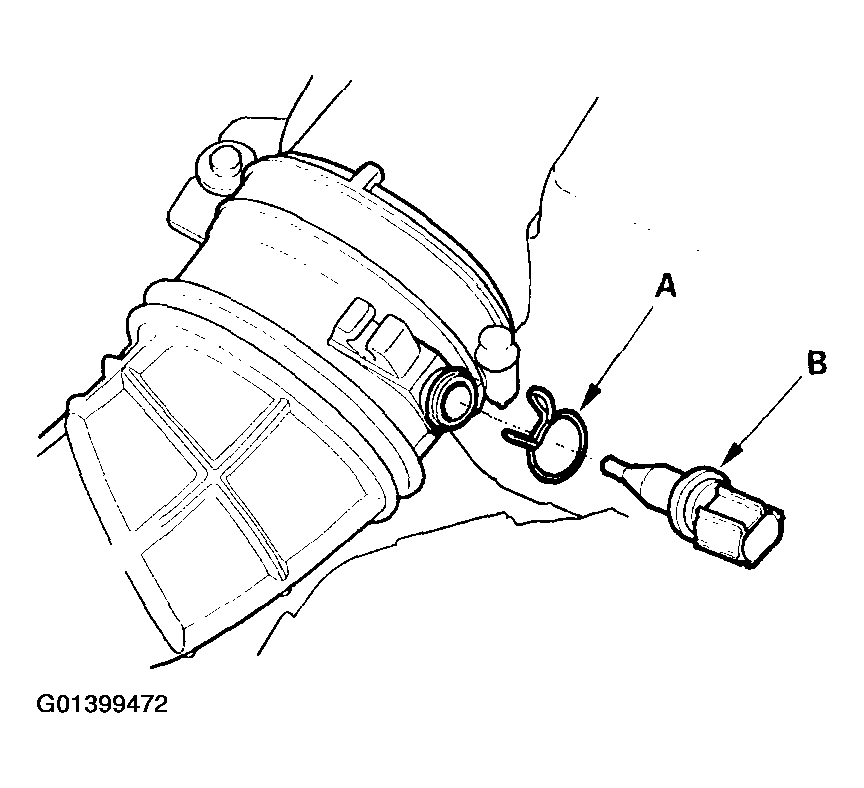

- Remove the clip (A) and the IAT sensor (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Install the sensor in the reverse order of removal.
