Continuously Variable Automatic Transmission (CVT)
>>
CVT
>>
System Description
>>
Power Flow
>>
Transmission Cutaway View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

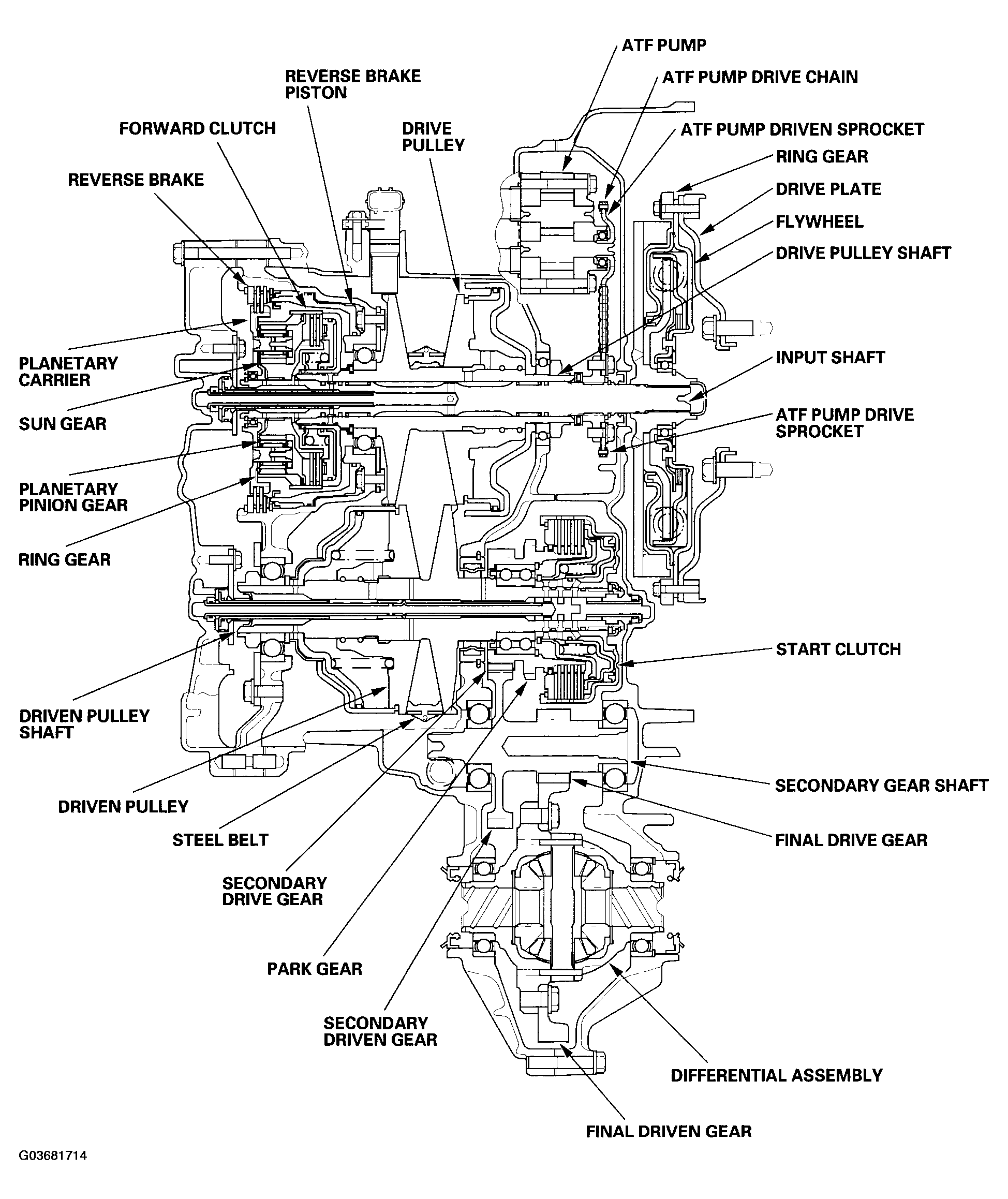

Transmission Cutaway View
Fig 1: Transmission Cutaway View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
