Power Sliding Door Switch Test/Replacement

WARNING: This page is about a different car, the 2006 Honda Odyssey and 2005 Honda Odyssey. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver's dashboard outer panel (see DRIVER'S DASHBOARD OUTER PANEL REMOVAL/INSTALLATION ).
Disconnect the 10P connector (A) from the power sliding door switch (B).

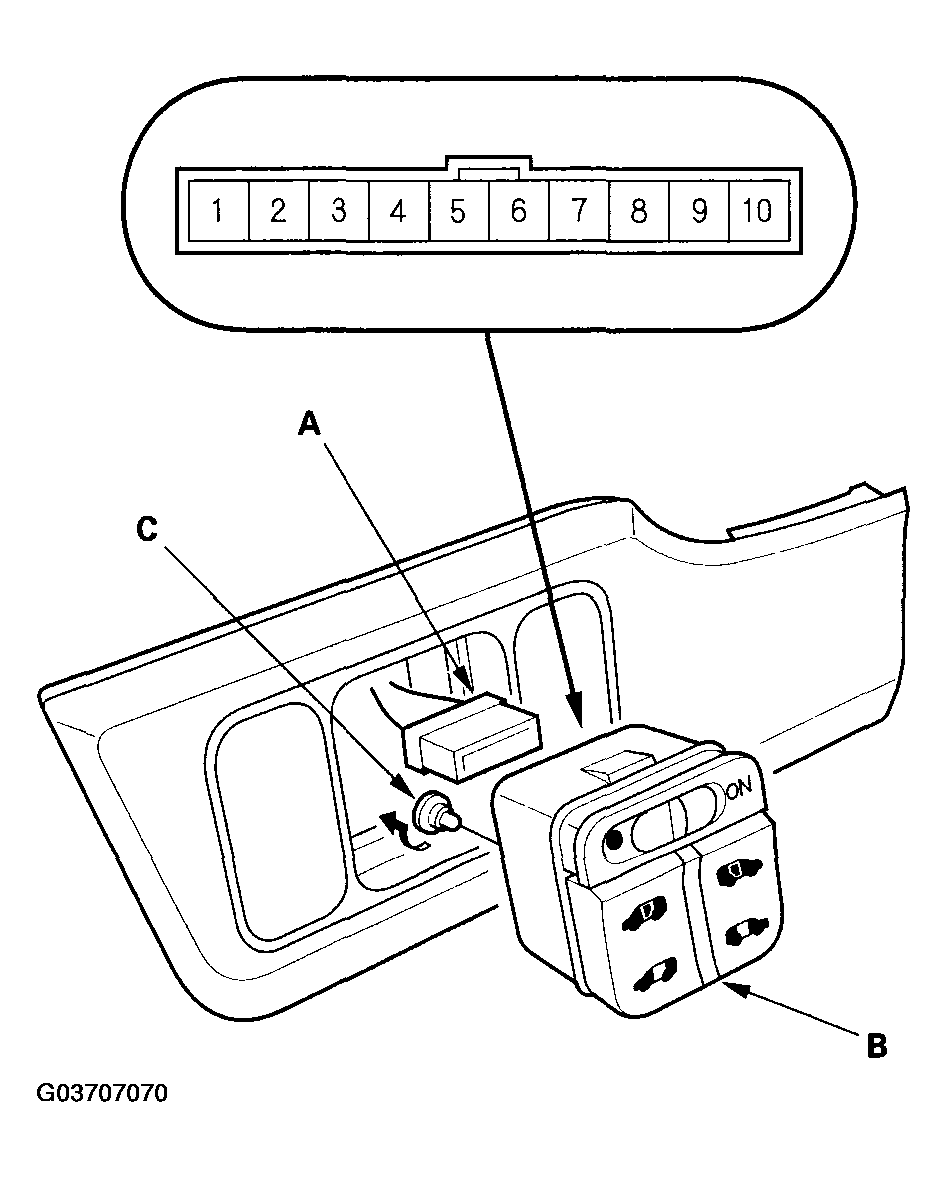

Fig 1: Disconnecting 10P Connector From Power Sliding Door Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table shown in Fig 3.

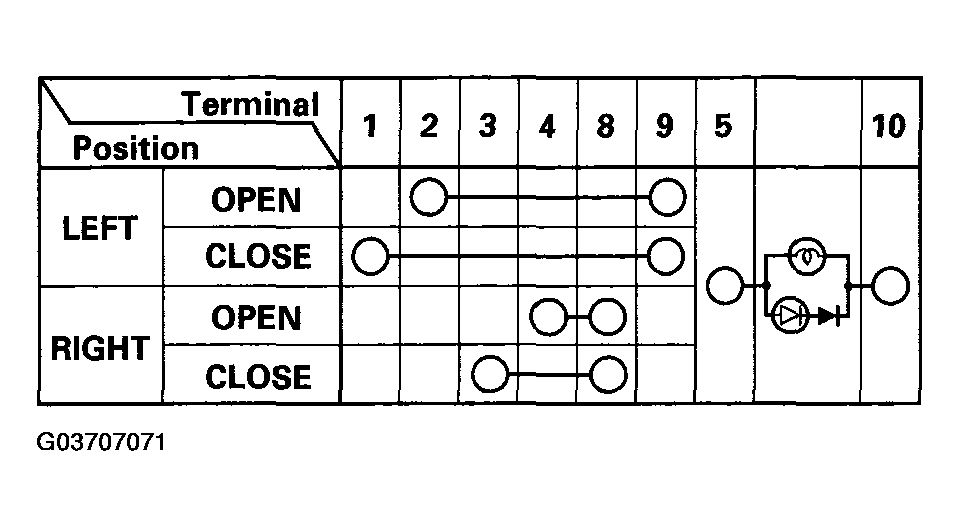

Fig 2: Checking Continuity Between Terminals In Each Switch Position (Open/Close Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Checking Continuity Between Terminals In Each Switch Position (Main Switch)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the bulbs (C) or the switch.
